| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.04mm X 145 Nylon Covered USTC High Frequency Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.04mm X 145 Nylon Covered USTC High Frequency Litz Wire |
| No. Of Strands: | 145 | ||
| High Light: | litz solderable magnet wire,ustc solderable magnet wire,0.04 mm awg enameled copper wire |
||

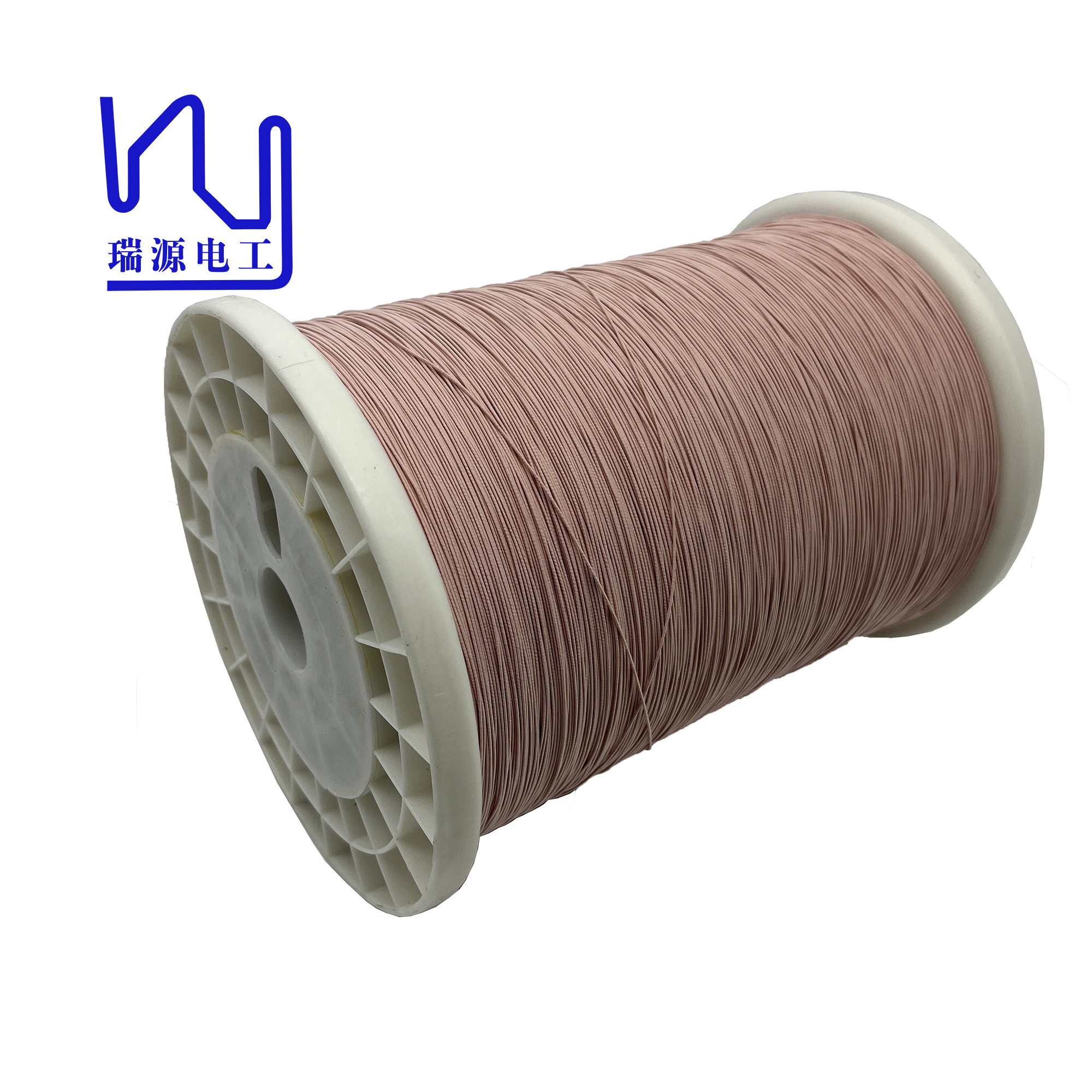

0.04mm x 145 Nylon Covered USTC High Frequency Litz Wire
This nylon served litz wire consists of 150 strands of 0.04 mm diameter enameled copper conductors twisted together. This meticulous process ensures a high level of electrical conductivity, enabling efficient power transfer within the motor system. The resulting wire is not only durable, but also highly flexible, making it ideal for complex motor winding applications.
| Description Conductor diameter*Strand number |
2USTC-F 0.04*150 | Test result(mm) | ||
Single wire |
Conductor diameter(mm) | 0.04±0.002 | 0.038 | 0.040 |
| Outer conductor diameter(mm) | 0.044-0.056 | 0.047 | 0.049 | |
| Maximal overall diameter (mm) | 0.83 | 0.60 | 0.66 | |
| Pitch(mm) | 29±5 | √ | √ | |
| Max resistance (Ω/Km at20℃) | Max. 0.1081 | 0.0980 | 0.0981 | |
| Mini breakdown voltage (V ) | 500 | 2500 | 2600 | |
|
Key word:0.04mm x 145 Nylon Covered USTC High Frequency Litz Wire |
