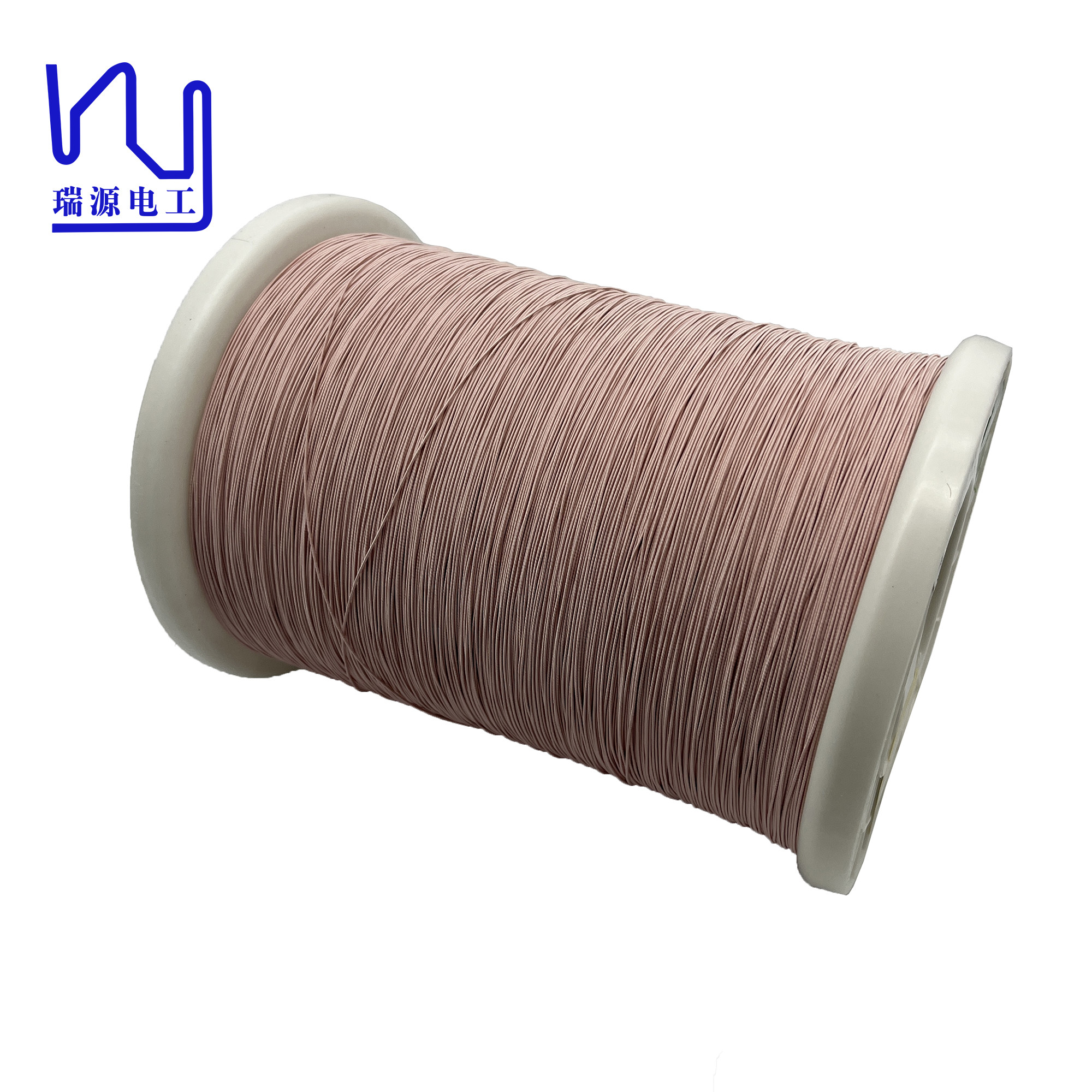

2USTC-F 0.04mm*145 Ustc Litz Wire HF Nylon Served Copper Coated Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: 2USTC-F 0.04mm*145 USTC Wire HF Nylon Served Copper Litz Wire Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.04mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: 2USTC-F 0.04mm*145 USTC Wire HF Nylon Served Copper Litz Wire
No. Of Strands: 145
High Light:

hf ustc litz wire

,

coated magnet ustc litz wire

,

2ustc-f coated magnet wire


Product Description

2USTC-F 0.04mm*145 USTC wire HF nylon served copper litz wire

In the highly competitive world of motor manufacturing, using the right materials can play an important role in achieving optimal performance and durability. One material that has proven to be invaluable is nylon served litz wire. The wire is precision engineered and manufactured to the highest standards, offering superior advantages in both production processes and motor applications.



Description
Conductor diameter*Strand number
2USTC-F 0.04*150 Test result(mm)

Single wire
Conductor diameter(mm) 0.04±0.002 0.038 0.040
  Outer conductor diameter(mm) 0.044-0.056 0.047 0.049
  Maximal overall diameter (mm) 0.83 0.60 0.66
Pitch(mm) 29±5
Max resistance (Ω/Km at20℃) Max. 0.1081 0.0980 0.0981
Mini breakdown voltage (V ) 500 2500 2600

Key word:2USTC-F 0.04mm*145 USTC wire HF nylon served copper litz wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

2USTC-F 0.04mm*145 Ustc Litz Wire HF Nylon Served Copper Coated Magnet Wire 0

2USTC-F 0.04mm*145 Ustc Litz Wire HF Nylon Served Copper Coated Magnet Wire 1

2USTC-F 0.04mm*145 Ustc Litz Wire HF Nylon Served Copper Coated Magnet Wire 2

2USTC-F 0.04mm*145 Ustc Litz Wire HF Nylon Served Copper Coated Magnet Wire 3
