Product Name: | Class 220 2.0mm Flat Enameled Copper Wire For Electric Motor Winding | Thermal Rating: | 220 |
---|---|---|---|
Insulation Material: | Amide Imide | Width: | 2.0mm |
Thickness: | 0.15mm | Conductor Material: | Copper |
Key Word: | Class 220 2.0mm Flat Enameled Copper Wire For Electric Motor Winding | ||
Highlight: | flat enamelled copper wire,flat enamelled wire,flat enamel coated wire |

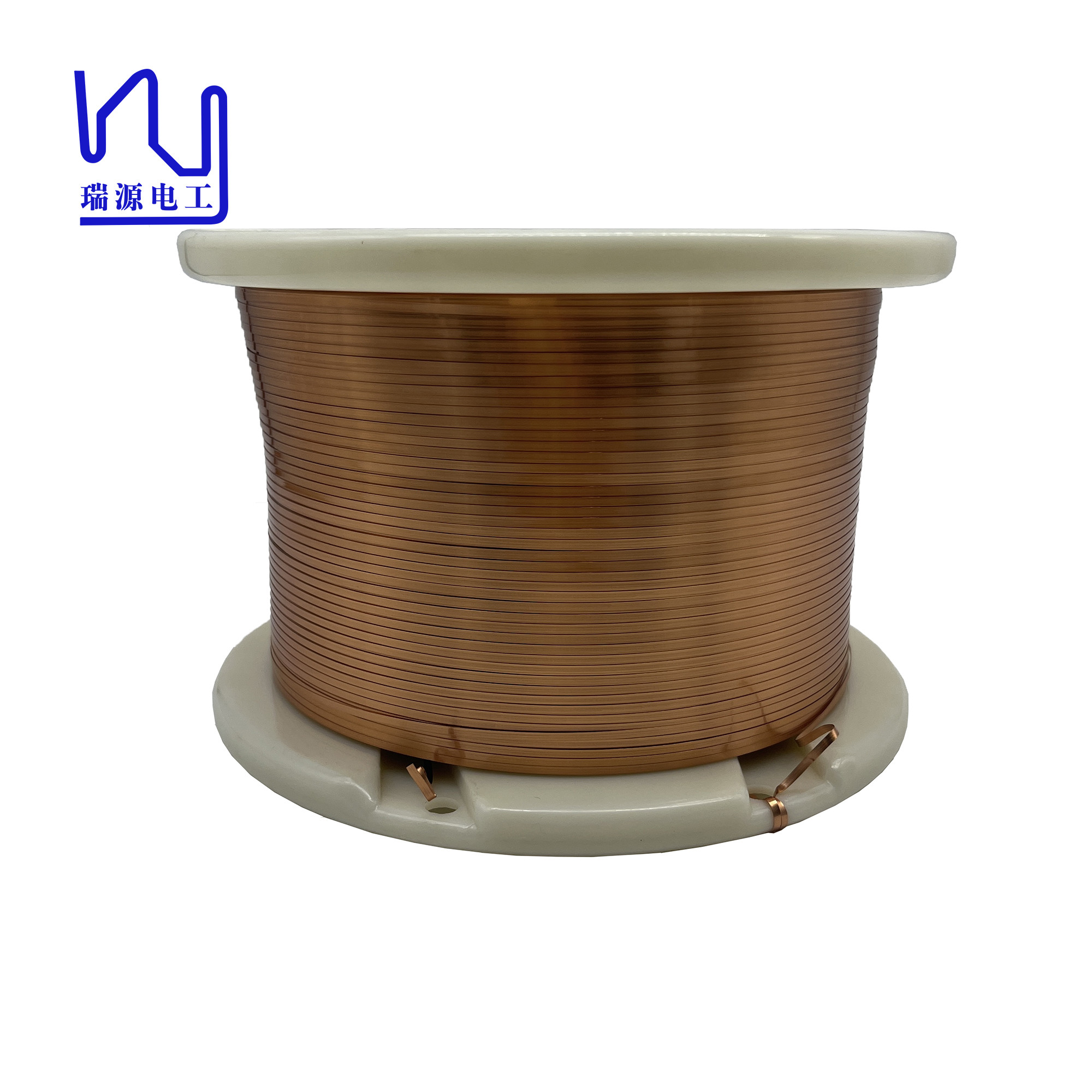

Class 220 2.0mm Flat Enameled Copper Wire for Electric Motor Winding
Our enamelled copper flat wires can be customized and produced according to customers' specific needs. Whether it's size, film material or self-adhesiveness, we have a product to suit your requirements. The thinnest flat wire can be 0.03mm, with a width-to-thickness ratio as high as 30:1, making it suitable for various applications that require miniaturized design.
Product name |
Class 220 2.0mm Flat Enameled Copper Wire for Electric Motor Winding |
|||
Key word |
Class 220 2.0mm Flat Enameled Copper Wire for Electric Motor Winding |
|||
Characteristics | Standard | Test Result | ||
Appearance | Smooth Equality | ok | ||
Conductor Diameter | Width | 2.00 | ±0.060 | 1.998 |
Thickness | 0.15 | ±0.009 | 0.148 | |
Min.Thickness of Insulation | Width | 0.010 | 0.041 | |
Thickness | 0.010 | 0.037 | ||
Max. Overall Diameter | Width | 2.050 | 2.039 | |
Thickness | 0.190 | 0.185 | ||
Pinhole | Max. 3hole/m | 0 | ||
Elongation | Min. 30 % | 41 | ||
Flexibility and Adherence | No crack | No crack | ||
Conductor Resistance (Ω/km at 20℃) | Max 64.03 | 49.47 | ||
Breakdown Voltage | Min. 0.70kv | 1.50 | ||
Heat shock | No Crack | ok |
