| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 2.0mm*0.15mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | High Temperature 0.15mm Enameled Flat Copper Wire For Automotive | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 2.0mm |
| Thickness: | 0.15mm | Conductor Material: | Copper |
| Key Word: | High Temperature 0.15mm Enameled Flat Copper Wire For Automotive | ||
| High Light: | flat enamel coated copper wire,flat super enamelled copper wire,flat enamel coated magnet wire |
||

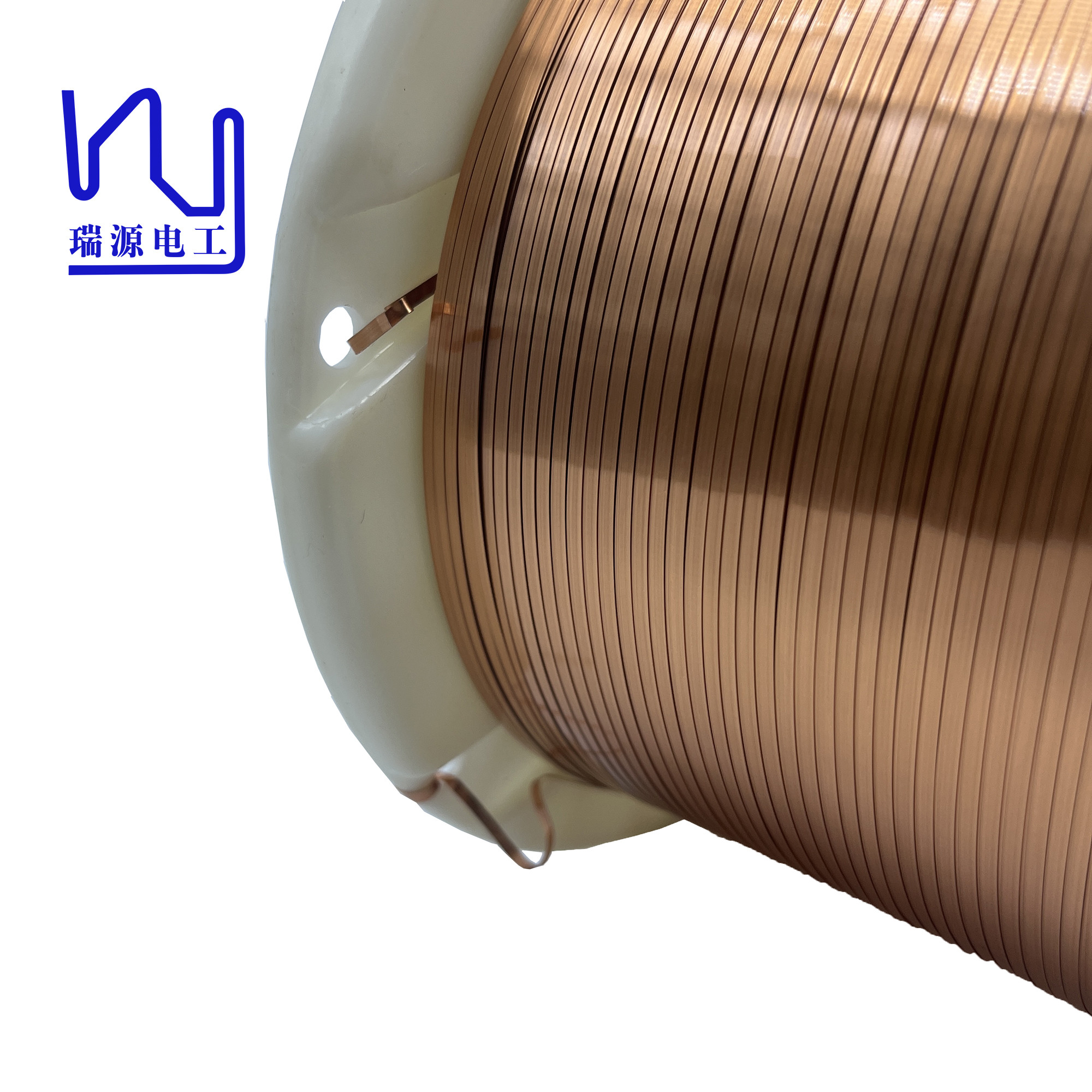

High Temperature 0.15mm Enameled Flat Copper Wire for Automotive
In the automotive field, enameled copper flat wires also play an important role. Many critical components in a car, such as the engine, braking system and electronic control units, require reliable electrical connections.
Enameled copper flat wires can not only meet the current carrying capacity requirements of automobile systems, but also have high temperature resistance, ensuring the continuous and stable operation of automobiles under harsh working conditions.
| Product name |
High Temperature 0.15mm Enameled Flat Copper Wire for Automotive |
|||
|
Key word |
High Temperature 0.15mm Enameled Flat Copper Wire for Automotive |
|||
| Characteristics | Standard | Test Result | ||
| Appearance | Smooth Equality | ok | ||
| Conductor Diameter | Width | 2.00 | ±0.060 | 1.998 |
| Thickness | 0.15 | ±0.009 | 0.148 | |
| Min.Thickness of Insulation | Width | 0.010 | 0.041 | |
| Thickness | 0.010 | 0.037 | ||
| Max. Overall Diameter | Width | 2.050 | 2.039 | |
| Thickness | 0.190 | 0.185 | ||
| Pinhole | Max. 3hole/m | 0 | ||
| Elongation | Min. 30 % | 41 | ||
| Flexibility and Adherence | No crack | No crack | ||
| Conductor Resistance (Ω/km at 20℃) | Max 64.03 | 49.47 | ||
| Breakdown Voltage | Min. 0.70kv | 1.50 | ||
| Heat shock | No Crack | ok | ||
