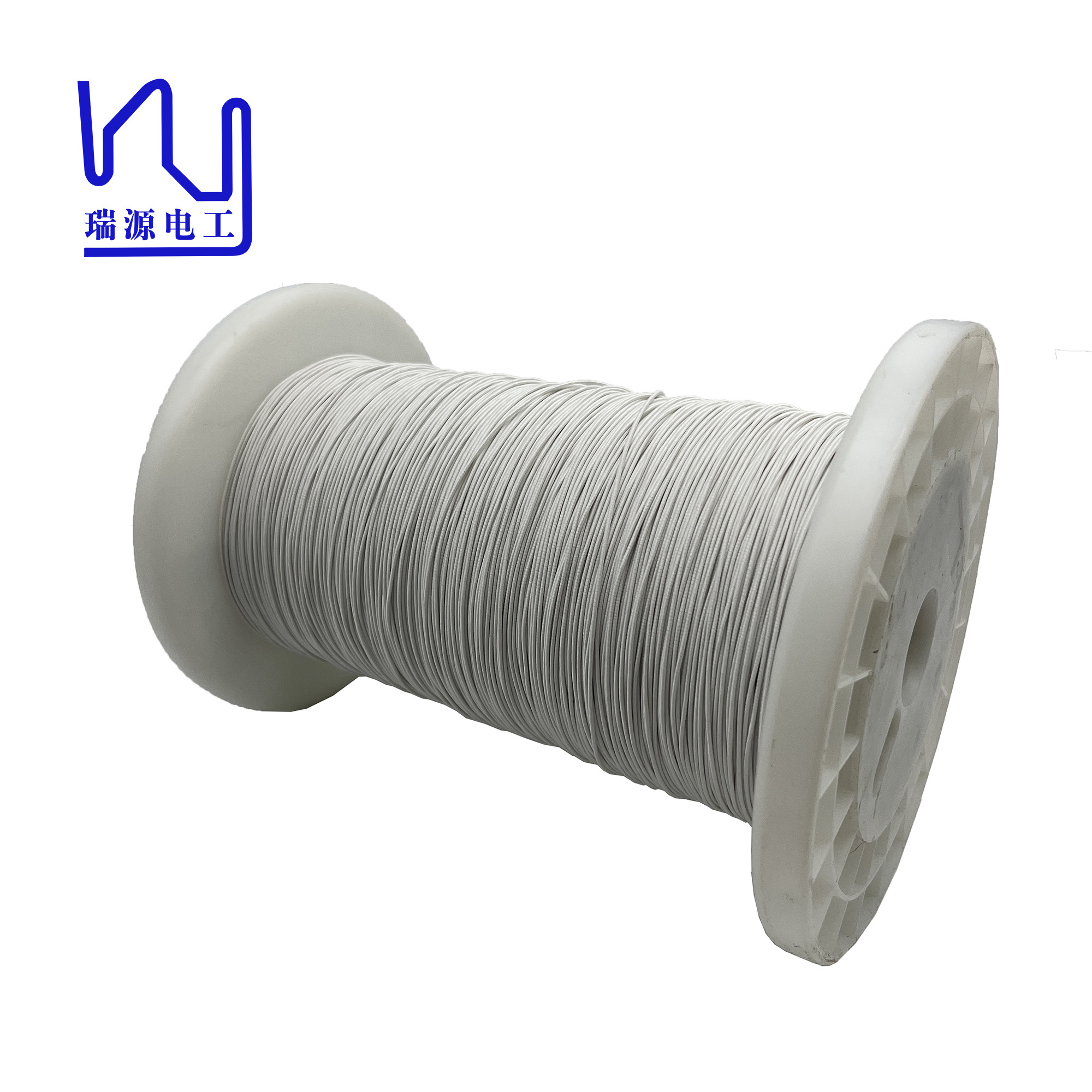

Ustc155 0.1mm * 65 Silver Litz Wire Nylon Served

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	USTC155 0.1mm * 65 Nylon Served Silver Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	USTC155 0.1mm * 65 Nylon Served Silver Litz Wire
No. Of Strands:	65
Highlight:	ustc silver litz wire , 0.1 mm silver litz wire , ustc pure silver litz cable

Product Description

USTC155 0.1mm * 65 Nylon Served Silver Litz Wire

An Excellent Choice for Reproducing Perfect Sound

In the process of manufacturing audio equipment and building a sound system, the choice of connection has an impact on sound quality that cannot be underestimated.

As a high-grade wire specially designed for audio enthusiasts, nylon served silver Litz Wire is favored by users for its excellent performance and diverse application fields.

Item	Sample
Outer conductor diameter(mm)	0.107-0.109
Conductor diameter(mm)	0.099-0.10
Overall dimension(mm)	Max 1.06- 1.15
Resisitance Q /m (20℃)	Max 0.03225
Breakdown voltage( v)	Min 2000
Key word	USTC155 0.1mm * 65 Nylon Served Silver Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Ustc155 0.1mm * 65 Silver Litz Wire Nylon Served 0

Ustc155 0.1mm * 65 Silver Litz Wire Nylon Served 1

Ustc155 0.1mm * 65 Silver Litz Wire Nylon Served 2

Ustc155 0.1mm * 65 Silver Litz Wire Nylon Served 3
