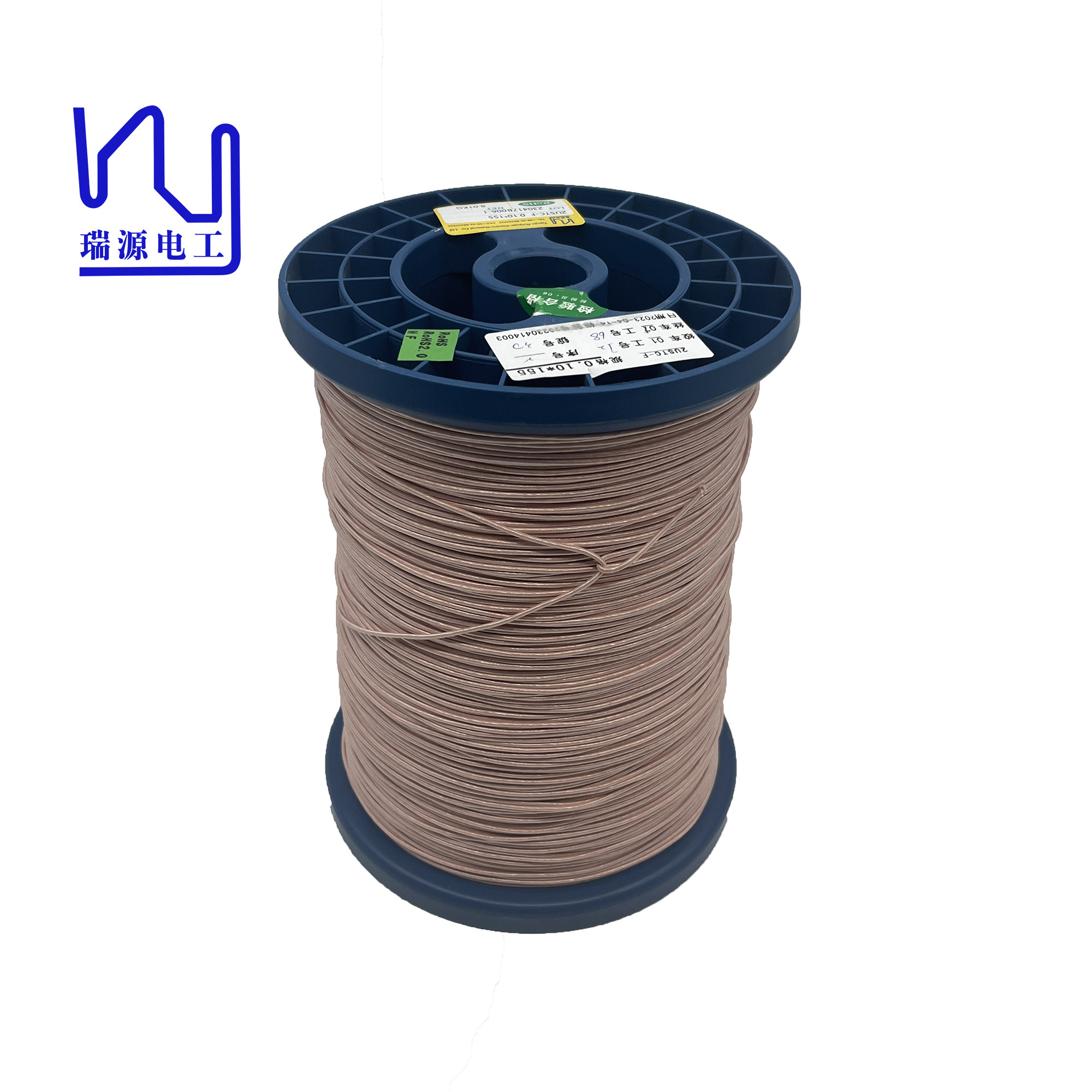

Name: Udtc Double Layers Copper Litz Wire 0.1mm 0.15mm 0.2mm Nylon Served
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Udtc Double Layers Copper Litz Wire 0.1mm 0.15mm 0.2mm Nylon Served

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	UDTC Double Layers 0.1mm 0.15mm 0.2mm Nylon Served Copper Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	UDTC Double Layers 0.1mm 0.15mm 0.2mm Nylon Served Copper Litz Wire
No. Of Strands:	155
Highlight:	double layers copper litz wire , 0.15mm copper litz wire , 0.2mm litz copper wire

Product Description

UDTC Double Layers 0.1mm 0.15mm 0.2mm Nylon Served Copper Litz Wire

There are various types of high-frequency litz wires, and each wire has its own unique characteristics and advantages. As one of the products, nylon served litz wire has super performance and a wide range of application fields, helping your electronic products to work more efficiently and reliably.

Product name:UDTC Double Layers 0.1mm 0.15mm 0.2mm Nylon Served Copper Litz Wire
Key word:UDTC Double Layers 0.1mm 0.15mm 0.2mm Nylon Served Copper Litz Wire
Description Conductor diameter*Strand number		2USTC- F 0. 10*155
Single wire	Conductor diameter(mm)	0. 100
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0 .005
	Maximal overall diameter (mm)	0 . 125
	Thermal Class(℃)	155
Strand Composition	Strand number	155
	Pitch(mm)	29± 5
	Stranding direction	S
Insulation layer	Category	Nylon
	Material specs(mm*mm or D)	300
	Times of Wrapping	1
	Overlap(%) or thickness(mm),mini	0.02
	Wrapping direction	S
Characteristics	Max O. D (mm)	1.74
	Max pin holes 个/6m	50
	Max resistance (Ω/Km at20℃)	15.36
	Mini breakdown voltage (V )	1100
Package	Spool	PT- 10

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Udtc Double Layers Copper Litz Wire 0.1mm 0.15mm 0.2mm Nylon Served 0

Udtc Double Layers Copper Litz Wire 0.1mm 0.15mm 0.2mm Nylon Served 1

Udtc Double Layers Copper Litz Wire 0.1mm 0.15mm 0.2mm Nylon Served 2

Udtc Double Layers Copper Litz Wire 0.1mm 0.15mm 0.2mm Nylon Served 3
