| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | USTC-H High Frequency Litz Wire 0.1mm 0.15mm 0.2mm Natural Sillk Copper Litz Wire |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC-H High Frequency Litz Wire 0.1mm 0.15mm 0.2mm Natural Sillk Copper Litz Wire |
| No. Of Strands: | 70 | ||
| High Light: | 0.2 mm ustc litz wire,enamel coated copper ustc litz wire,0.15 mm hf litz wire |
||

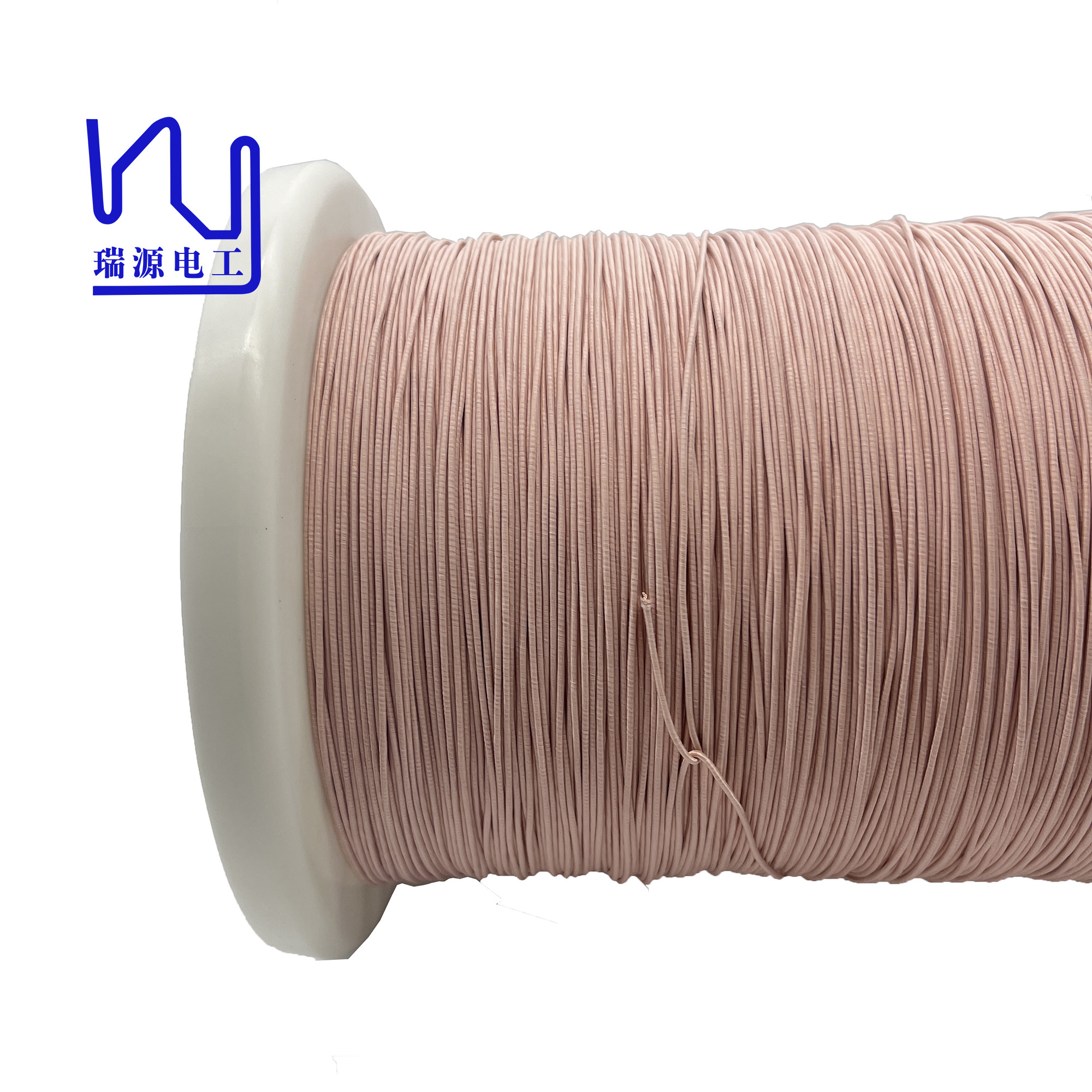

USTC-H High frequency litz wire 0.1mm 0.15mm 0.2mm natural sillk Copper Litz Wire
Nylon served Litz wire has excellent properties such as high frequency, low resistance, and low inductance. These characteristics make it suitable for a variety of electronic devices, especially those that require high-frequency transmission.
| Product name: USTC-H High frequency litz wire 0.1mm 0.15mm 0.2mm natural sillk Copper Litz Wire | ||
|
Description Conductor diameter*Strand number |
2USTC- F 0. 10*70 |
|
|
Single wire
|
Conductor diameter(mm) | 0. 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition
|
Strand number | 70 |
| Pitch(mm) | 27± 3 | |
| Stranding direction | S | |
|
Insulation layer
|
Category | Nylon |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics
|
Max O. D (mm) | 1.20 |
| Max pin holes 个/6m | 40 | |
| Max resistance (Ω/Km at20℃) | 34.01 | |
| Mini breakdown voltage (V ) | 1100 | |
| Key word |
USTC-H High frequency litz wire 0.1mm 0.15mm 0.2mm natural sillk Copper Litz Wire |
|
