| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | Custom USTC 155/ 180 0.1mm * 70 Polyester Served Copper Litz Wire For Motor Winding |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom USTC 155/ 180 0.1mm * 70 Polyester Served Copper Litz Wire For Motor Winding |
| No. Of Strands: | 70 | ||
| High Light: | ustc 155 copper litz wire,polyester served copper litz wire,ustc 180 litz wire winding |
||

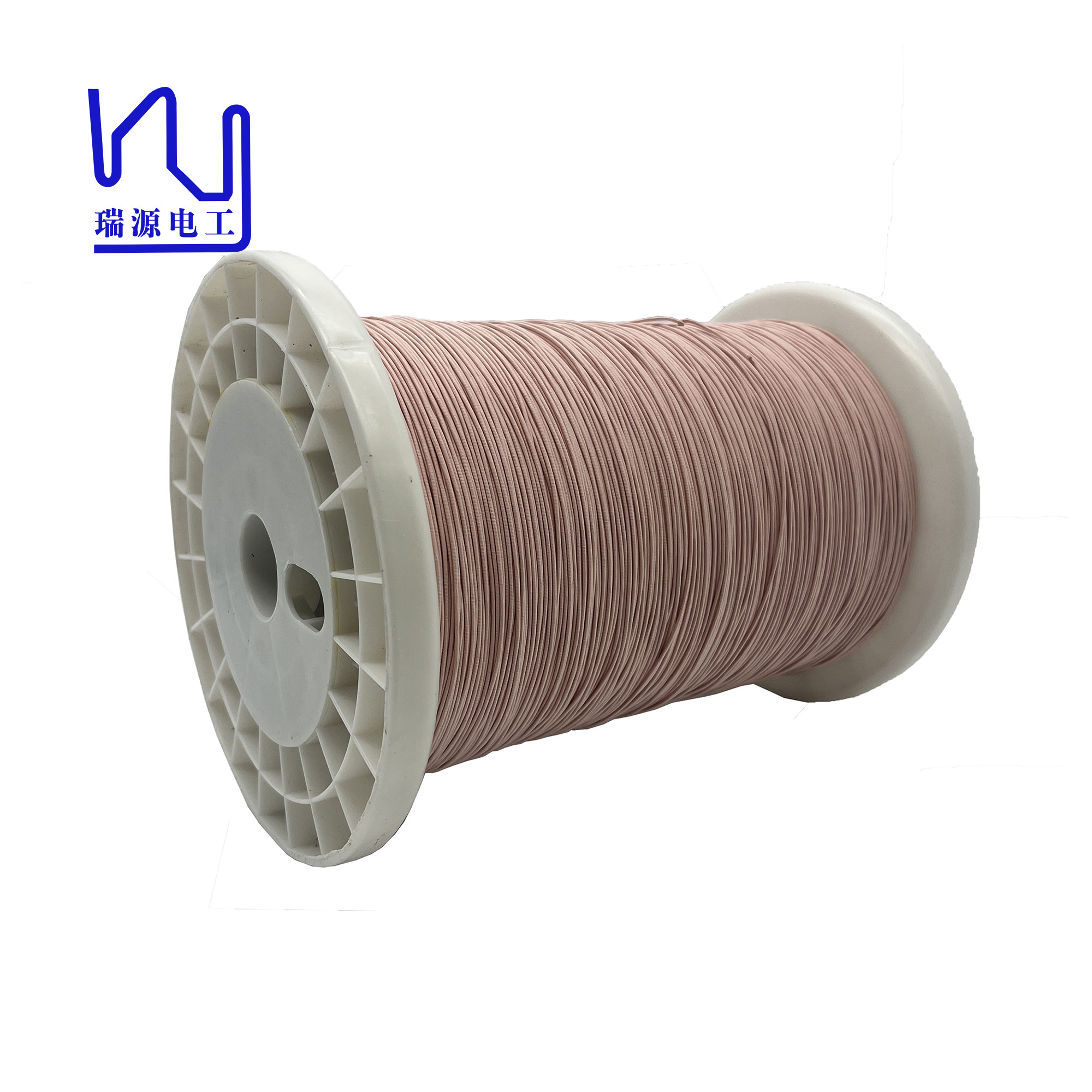

Custom USTC 155/ 180 0.1mm * 70 Polyester Served Copper Litz Wire for motor winding
The twisting process of the strands and the coating of the nylon yarn ensure that the wire has excellent current-carrying capacity and anti-electromagnetic interference ability. The production process of nylon covered litz wire consists of several steps.
First, enameled wire is produced by coating copper wire with an enameled insulation layer.
Then, 70 strands of enameled wire are twisted together to form a bundle.
Afterwards, the bundle is wrapped with a coating of nylon yarn.
Finally, the wire is annealed at high temperature to increase its strength and flexibility.
| Product name: Custom USTC 155/ 180 0.1mm * 70 Polyester Served Copper Litz Wire for motor winding | ||
|
Description Conductor diameter*Strand number |
2USTC- F 0. 10*70 |
|
|
Single wire
|
Conductor diameter(mm) | 0. 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition
|
Strand number | 70 |
| Pitch(mm) | 27± 3 | |
| Stranding direction | S | |
|
Insulation layer
|
Category | Nylon |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics
|
Max O. D (mm) | 1.20 |
| Max pin holes 个/6m | 40 | |
| Max resistance (Ω/Km at20℃) | 34.01 | |
| Mini breakdown voltage (V ) | 1100 | |
| Key word | Custom USTC 155/ 180 0.1mm * 70 Polyester Served Copper Litz Wire for motor winding | |
