| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | FIW |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW4 Wire 0.335mm Class 180 High Voltage Enameled Copper Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Diameter: | 0.1mm-0.4mm |
| Conductor Material: | Copper | Key Word: | FIW4 Wire 0.335mm Class 180 High Voltage Enameled Copper Wire |
| High Light: | fiw4 self bonding enamelled copper wire,0.335mm self bonding enamelled copper wire,fiw enamel covered wire |
||

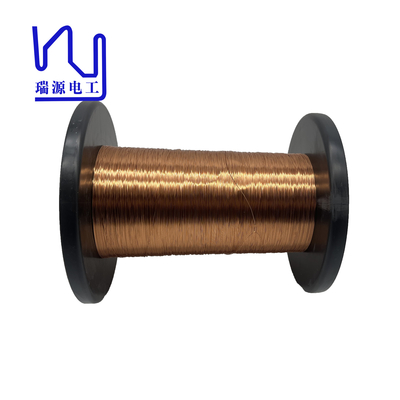

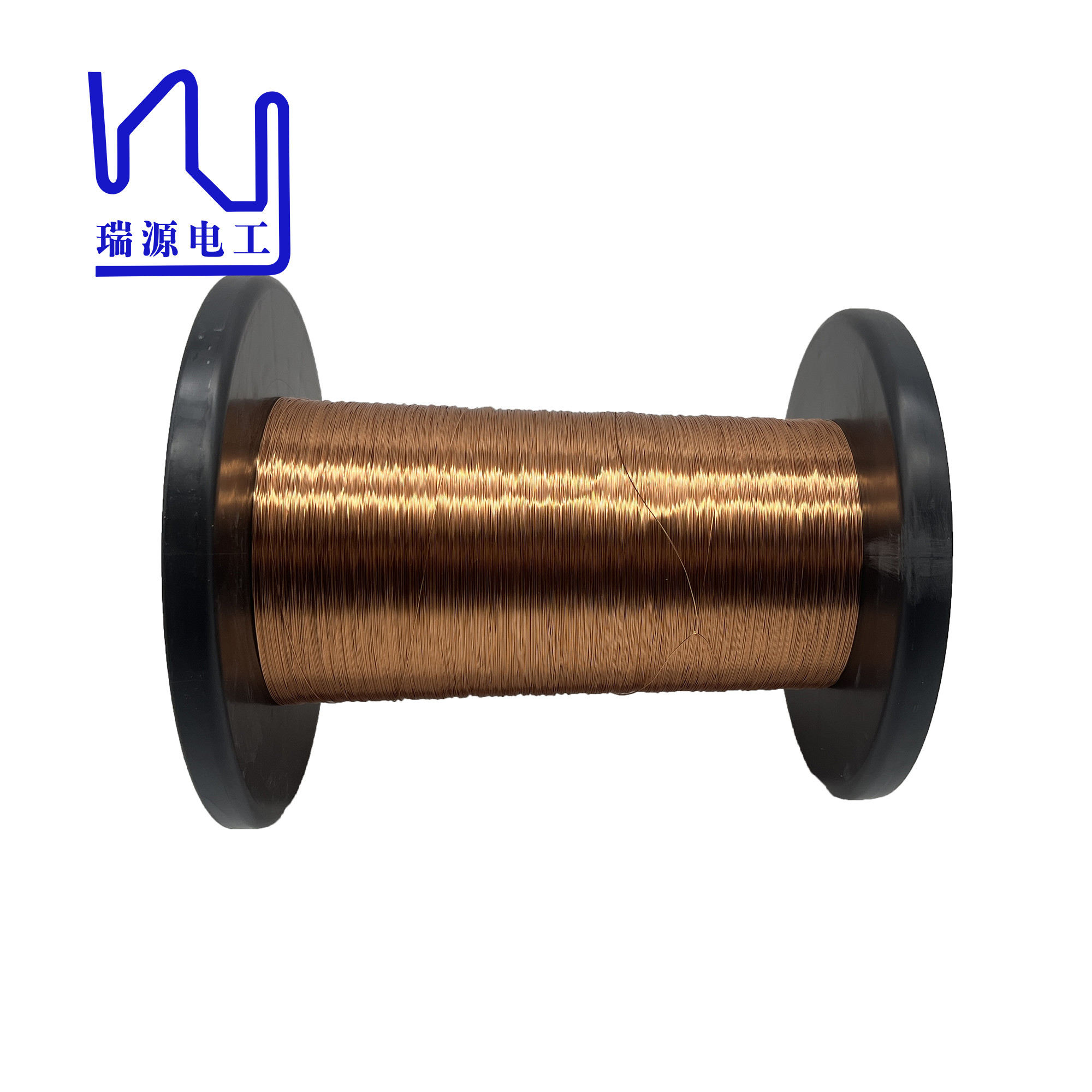

FIW4 wire 0.335mm class 180 high voltage enameled copper wire
FIW enameled wire is a high-quality wire product with full insulation and weldability (zero defect). The diameter of this wire is 0.335mm, and the temperature resistance level is 180 degrees.
FIW enameled wire can withstand high voltage, which makes it an alternative to traditional TIW wire, and the price is more economical.
|
Name |
FIW4 wire 0.335mm class 180 high voltage enameled copper wire |
|
Key word |
FIW wire |
|
Insulationh |
Enamel |
|
Thermal rating |
180 |
|
Diameter of the enameled copper wire |
0.1mm-0.4mm |
|
Type |
FIW4 wire 0.335mm class 180 high voltage enameled copper wire |
