| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | 2USTC Class F 0.08mm*960 Stranded Copper Wire Silk Covered Litz Wire |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC Class F 0.08mm*960 Stranded Copper Wire Silk Covered Litz Wire |
| No. Of Strands: | 980 | ||
| High Light: | 2ustc litz wire,class f ustc litz wire,multi stranded 0.08 mm wire |
||

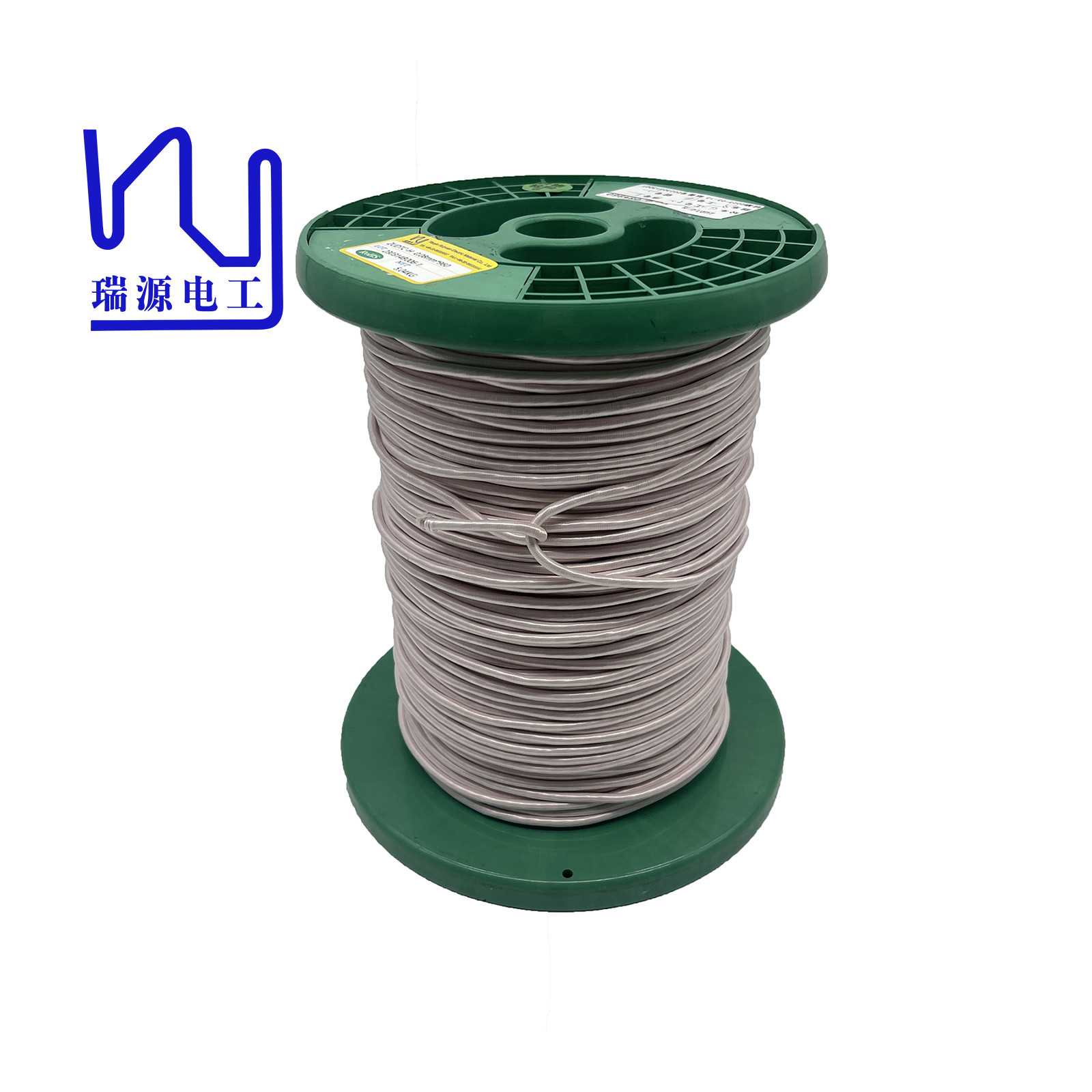

2USTC Class F 0.08mm*960 Stranded copper wire Silk Covered Litz Wire
The silk covered litz wires we produce have excellent performance and a wide range of applications. In the fields of electronics, automobiles, and medical equipment, silk-covered wires provide reliable connection and transmission guarantees for equipment. If you need high-quality and reliable silk-covered wire products, it is recommended to choose our silk-covered wire. Our products are of good quality and have a wide range of applications. Welcome your inquiry.
|
2USTC Class F 0.08mm*960 Stranded copper wire Silk Covered Litz Wire |
||
|
Item |
Standard |
Test Result |
|
Outer diameter of single wire(mm) |
0.087-0.103 |
0.090-0.093 |
|
Conductor diameter(mm) |
0.08±0.003 |
0.078-0.08 |
|
Overall dimension(mm) |
Max.4.36 |
3.35-.3.57 |
|
Pitch(mm) |
40±3 |
√ |
|
Conductor Resistance (Ω/km at 20℃) |
Max.0.003932 |
0.00368 |
|
Breakdown Voltage(V) |
Min. 1100 |
2700 |
|
Pinhole(6m) |
Max. 124 |
45 |
|
Key word |
2USTC Class F 0.08mm*960 Stranded copper wire Silk Covered Litz Wire |
|
