| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.11mm*0.26mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Super Thin High Temperature Flat Enameled Copper Wire | Thermal Rating: | 180/220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.11mm |
| Thickness: | 0.26mm | Conductor Material: | Copper |
| Key Word: | Super Thin High Temperature Flat Enameled Copper Wire | ||
| High Light: | high temperature rectangular copper wire,rectangular copper wire super thin,high temperature enamel insulated wire |
||

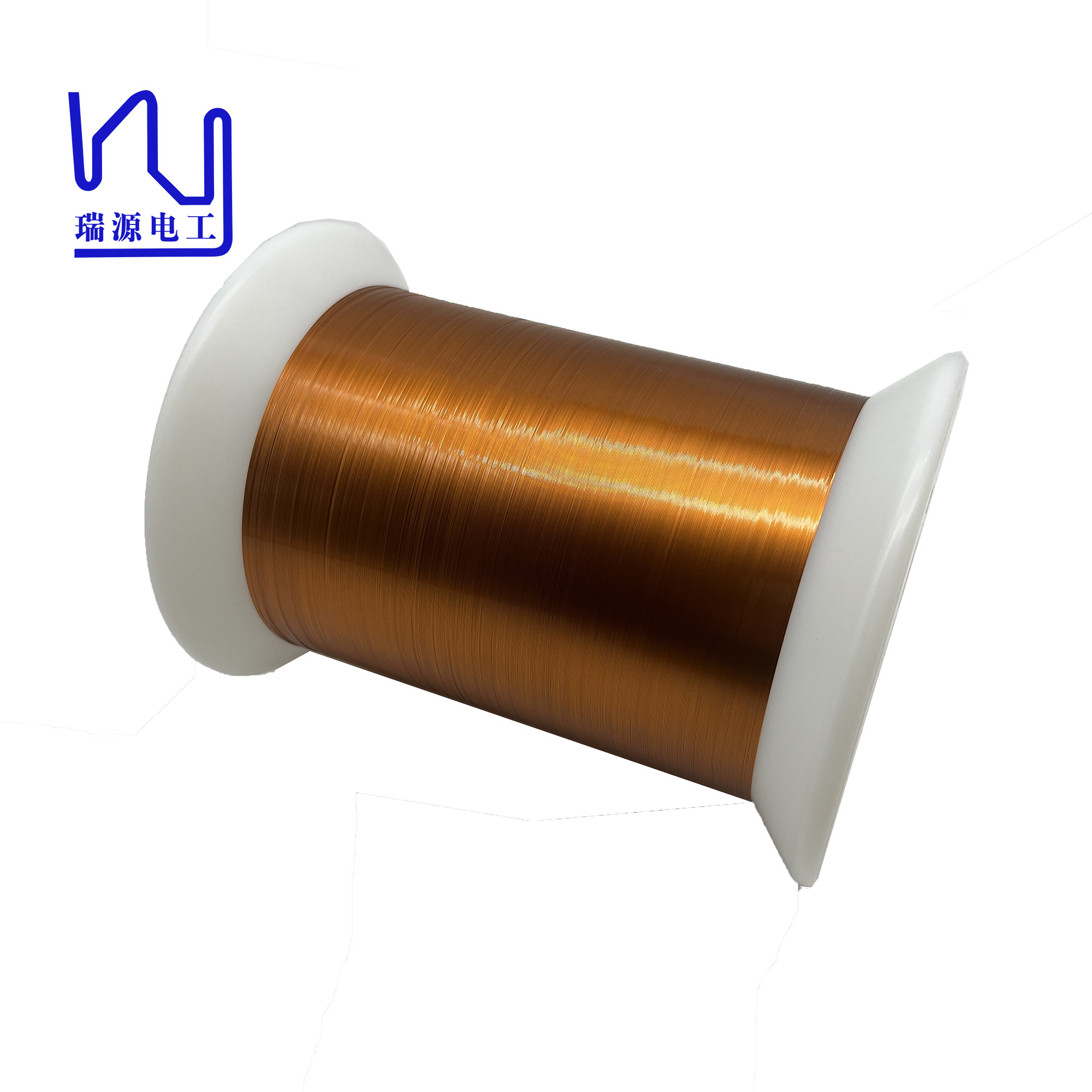

Super thin high temperature flat enameled copper wire
Enameled rectangular copper wire is very suitable as a wire material when making high end voice coil. Because it has good heat resistance and stable electrical properties, it can work normally under various extreme conditions.
In addition, we can customize flat copper enameled wires of different sizes and specifications according to customer needs to meet various application scenarios. In addition to using ordinary flat copper enameled wire, we can also provide high-quality self-adhesive flat copper enameled wire.
| Size(mm) | Conductor Dimension(mm) | Thickness of single insulation(mm) | Bonding layer of single insulation(mm) | Overall dimension(mm) | Max. Conductor Resistance 20℃(Ω/km) | Breakdown voltage(kv) | Pinhole(pcs/m) | Elongation | Bonding strength |
|||||||||||
| Width | Thickness | |||||||||||||||||||
| Width | Tolerance | Thickness | Tolerance | Width | Thickness | Width | Thickness | Min | Normal | Max | Min | Normal | Max | Min | Max | N/MM | ||||
| 0.11*0.26 | 0.260 | ±0.02 | 0.110 | ±0.004 | 0.005±0.015 | 0.0045±0.001 | 0.0025±0.001 | 0.0025±0.001 | 0.255 | 0.275 | 0.295 | 0.120 | 0.124 | 0.128 | 591.810 | 748.63 | 0.5 Min | 1Max. | 15 Min. | 0.29 |
|
Product name |
Super thin high temperature flat enameled copper wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
Super thin high temperature flat enameled copper wire |
