Detail Information

Name:	USTC155/180 0.03mm Super Thin Silk Covered Litz Wire For Voice Coils	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.03mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	USTC155/180 0.03mm Super Thin Silk Covered Litz Wire For Voice Coils
No. Of Strands:	1500
Highlight:	180 ustc litz wire , voice coils ustc litz wire , 155 ustc wire

Product Description

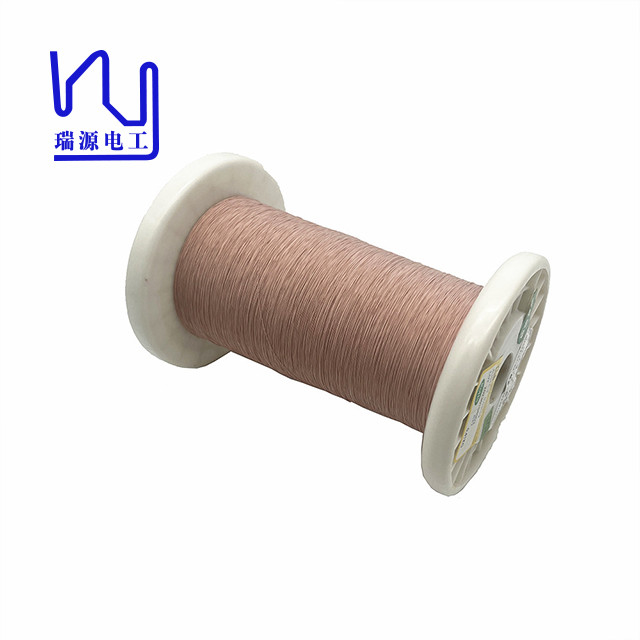

USTC155/180 0.03mm Super thin silk covered litz wire for voice coils

Wireless transmission benefits from the use of copper-clad Litz wire in several ways. It improves efficiency due to its lower resistance compared to other wiring materials, and also helps reduce interference problems by providing more effective shielding from external electromagnetic fields. Plus, its flexibility allows for easier passage through tight spaces.

datasheet for nylon6
Model	Lot No	Tensile strength(CN/dtex)	CV value	Breaking Elongation	CV value
93dtex/48f	8501	4.31	3.84	66.6	3.12
	8502L	4.27	3.87	67.5	3.53

Product	USTC155/180 0.03mm Super thin silk covered litz wire for voice coils
Key word	USTC155/180 0.03mm Super thin silk covered litz wire for voice coils
Type	Silk covered litz wire
MOQ	3KG

Technical and structural requirement

DescriptionConductor diameter*Strand number		2USTC-F 0.03*19
Single wire	Conductor diameter(mm)	0.030
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0.0015
	Maximal overall diameter (mm)	0.044
	Thermal Class(℃)	155
Strand Composition	Strand number	19
	Pitch(mm)	16±3
	Stranding direction	S
Insulation layer	Category	Nylon
	UL	/
	Material specs(mm*mm or D)	200
	Times ofWrapping	1
	Overlap(%) or thickness(mm),mini	0 02
	Wrapping direction	S
Characteristics	Max O. D (mm)	0.25
	Max pin holes faults/6m	/
	Max resistance (Ω/Km at20℃)	1519
	Mini breakdown voltage (V)	400
Certificate		/
package	spool	/
package	Weight per spool (KG)	/

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

155/180 Ustc Litz Wire 0.03mm Super Thin Silk Covered For Voice Coils 0

155/180 Ustc Litz Wire 0.03mm Super Thin Silk Covered For Voice Coils 1

155/180 Ustc Litz Wire 0.03mm Super Thin Silk Covered For Voice Coils 2

155/180 Ustc Litz Wire 0.03mm Super Thin Silk Covered For Voice Coils 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
