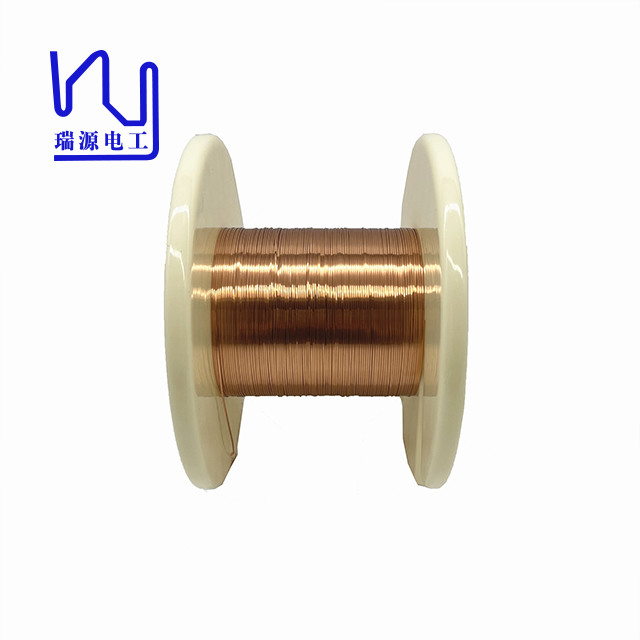

Uew / Aiw / 180 / 220 Super Enamel Wire Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 1.00mm*0.30mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: UEW/AIW/155/180 Super Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom Rectangular Enameled Copper Wire Thermal Rating: 180/220
Insulation Material: Amide Imide Width: 1.0mm
Thickness: 0.3mm Conductor Material: Copper
Key Word: UEW/AIW/155/180 Super Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom Rectangular Enameled Copper Wire
High Light:

uew super enamel wire

,

0.4mm super enamel wire

,

0.2mm rectangular copper wire


Product Description

UEW/AIW/155/180 Super Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom Rectangular Enameled Copper Wire



CHARACTERISTICS AND ADVANTAGES

1.Using flat enamelled wire, which can maintain good temperature rise current and saturation current in high frequency and high temperature environment, strong anti-electromagnetic interference ability, low vibration, low noise and high density installation.

2.Complied the standard of NEMA, IEC60317, JISC3003, JISC3216 or customized



Product name

UEW/AIW/155/180 Super Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom Rectangular Enameled Copper Wire



Coating material

AIW

Thermal class

220

Key word

UEW/AIW/155/180 Super Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom Rectangular Enameled Copper Wire







Conductor Dimension



mm

Thickness of Insulation



mm

Overall dimension



mm

Breakdown Voltage

kv

Conductor Resistance

Ω/km 20°C

Pinhole



Pcs/m

Elongation



%

Thickness Width Thickness Width Thickness Width
0.291-0.309 0.940-1.060 0.01-0.04 0.01-0.04 0.34-0.35 1.030-1.050 Min0.70 Max 65.73 Max 2 Min 30

Uew / Aiw / 180 / 220 Super Enamel Wire Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom 0

Uew / Aiw / 180 / 220 Super Enamel Wire Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom 1

Uew / Aiw / 180 / 220 Super Enamel Wire Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom 2

Uew / Aiw / 180 / 220 Super Enamel Wire Thin 0.30mm 0.2mm 0.3mm 0.4mm Custom 3
