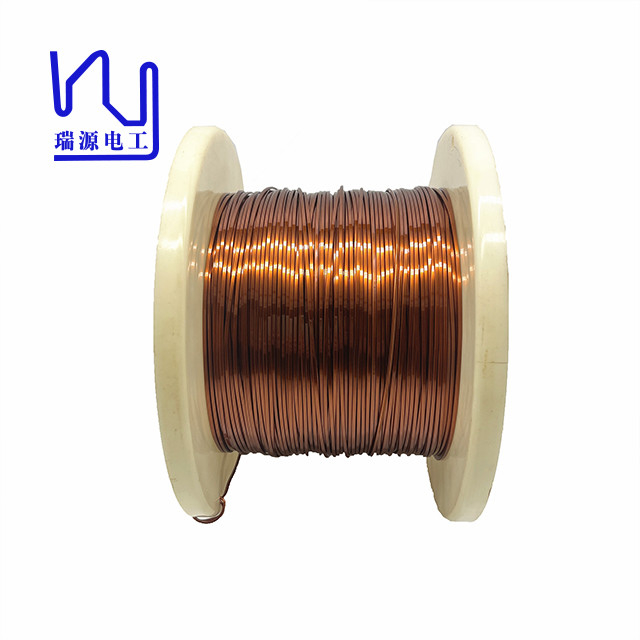

UL Winding Wire Of Copper Custom Polyamide Imide Class 220

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 1.1x1.8mm
Minimum Order Quantity: 3kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Custom Polyamide-imide Class 220 Enameled Rectangular Copper Winding Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 1.8mm
Thickness: 1.1mm Conductor Material: Copper
Key Word: Custom Polyamide-imide Class 220 Enameled Rectangular Copper Winding Wire
Highlight:

polyamide imide winding wire of copper

,

class 220 winding wire of copper

,

rectangular enamel coated copper wire


Product Description

Custom Polyamide-imide Class 220 Enameled Rectangular Copper Winding Wire



Feature:

With the features of heat resistance, refrigerant resistance, cold resistance, radiation resistance etc, and high mechanical strength, stable air performance, good chemical resistance and refrigerant resistance,strong overload capacity, 220 polyamide - imide enameled copper rectangular wire is widely used in refrigerator compressor,air conditioning compressor, power tools, explosion-proof motors and motors and electrical appliance used in conditions of high & cold temperature, high radiation and overload. The products are small in size,stable in performance, safe in operation and remarkable in energy saving.



Product name

Custom Polyamide-imide Class 220 Enameled Rectangular Copper Winding Wire

Coating material

AIW

Thermal class

220

Key word

Custom Polyamide-imide Class 220 Enameled Rectangular Copper Winding Wire



Item

Characteristics

Standard

Test Result

1

Appearance

Smooth Equality

Smooth Equality

2

Conductor Diameter

Width

1.80

±0.060

1.823

Thickness

1.10

±0.009

1.087

3

Thickness of Coating layer

Width

------

------

Thickness

Min. 0.020

0.051

4

Overall Diameter

Width

Max. 1.90

1.877

Thickness

Max. 1.15

1.138

5

Pinhole

Max. 3hole/m

0

6

Elongation

Min. 30 %

37%

7

Flexibility and Adherence

No crack

No crack

8

Conductor Resistance (Ω/km at 20℃)

Max. 10.56

9.69

9

Breakdown Voltage

Min. 0.7KV

1.30

10

Heat shock

No Crack

No Crack



UL Winding Wire Of Copper Custom Polyamide Imide Class 220

UL Winding Wire Of Copper Custom Polyamide Imide Class 220

UL Winding Wire Of Copper Custom Polyamide Imide Class 220

UL Winding Wire Of Copper Custom Polyamide Imide Class 220
