| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 3kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | USTC155/180 Custom Polyester Silk 0.03mm 0.04mm Enameled Copper Litz Wire |
|---|---|---|---|
| Diameter: | 0.03mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC155/180 Custom Polyester Silk 0.03mm 0.04mm Enameled Copper Litz Wire |
| No. Of Strands: | 19 | ||
| High Light: | 0.03mm copper litz wire,enamelled copper litz wire,ustc copper litz wire |
||

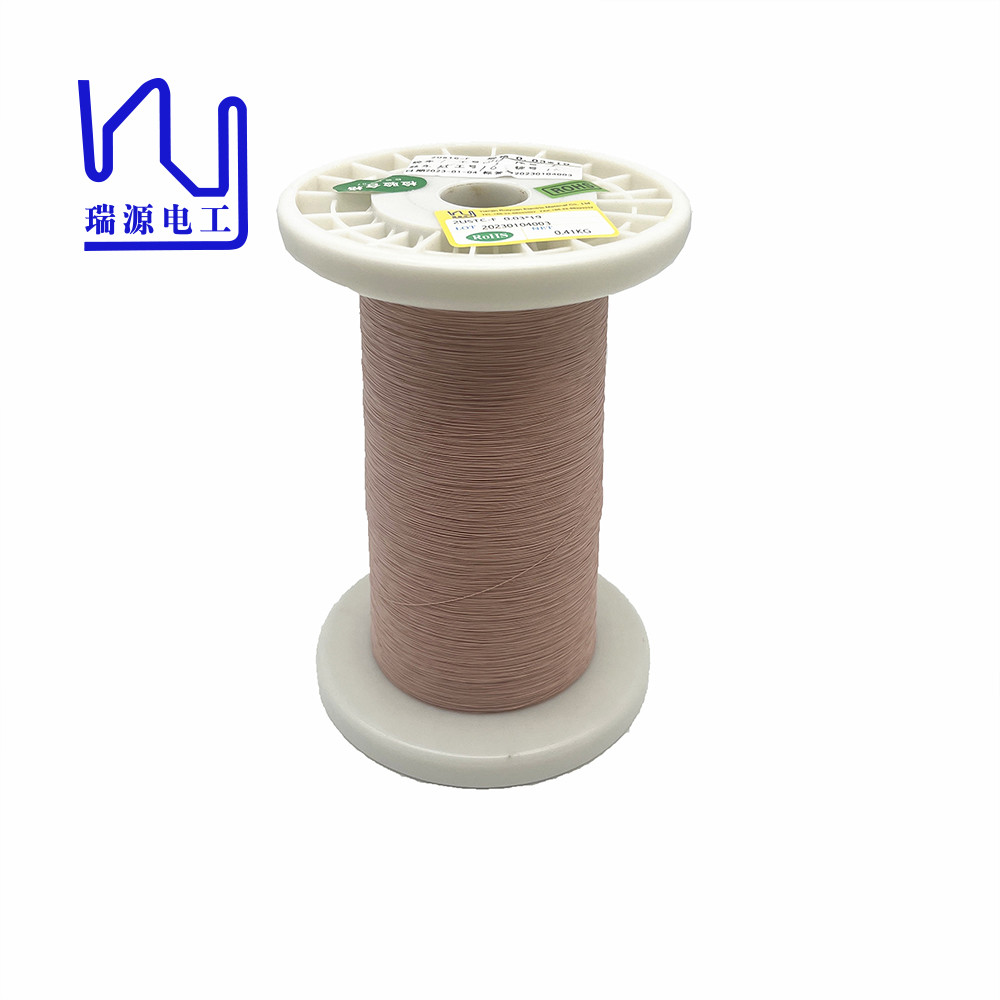

USTC155/180 Custom Polyester Silk 0.03mm 0.04mm Enameled Copper Litz Wire
How do you pay?
We accept T/T, D/P, D/A, L/C, PayPal and other payment methods for customers’ convenience.
Shipping
We promise to deliver goods to customers timely as specified. Usually it takes only around 7-10 days from China to countries all over the world when we use express services, including Fedex, DHL, and other express services. We also work with professional forwarder to ship the goods when necessary.
|
Product |
USTC155/180 Custom Polyester Silk 0.03mm 0.04mm Enameled Copper Litz Wire |
|
Key word |
USTC155/180 Custom Polyester Silk 0.03mm 0.04mm Enameled Copper Litz Wire |
|
Type |
Silk covered litz wire |
|
MOQ |
3KG |
Technical and structural requirement
|
DescriptionConductor diameter*Strand number |
2USTC-F 0.03*19 |
|
|
Single wire |
Conductor diameter(mm) |
0.030 |
|
Conductor diameter tolerance (mm) |
±0.003 |
|
|
Minimal insulation thickness(mm) |
0.0015 |
|
|
Maximal overall diameter (mm) |
0.044 |
|
|
Thermal Class(℃) |
155 |
|
|
Strand Composition |
Strand number |
19 |
|
Pitch(mm) |
16±3 |
|
|
Stranding direction |
S |
|
|
Insulation layer |
Category |
Nylon |
|
UL |
/ |
|
|
Material specs(mm*mm or D) |
200 |
|
|
Times ofWrapping |
1 |
|
|
Overlap(%) or thickness(mm),mini |
0 02 |
|
|
Wrapping direction |
S |
|
|
Characteristics |
Max O. D (mm) |
0.25 |
|
Max pin holes faults/6m |
/ |
|
|
Max resistance (Ω/Km at20℃) |
1519 |
|
|
Mini breakdown voltage (V) |
400 |
|
|
Certificate |
/ |
|
|
package |
spool |
/ |
|
Weight per spool (KG) |
/ |
|
