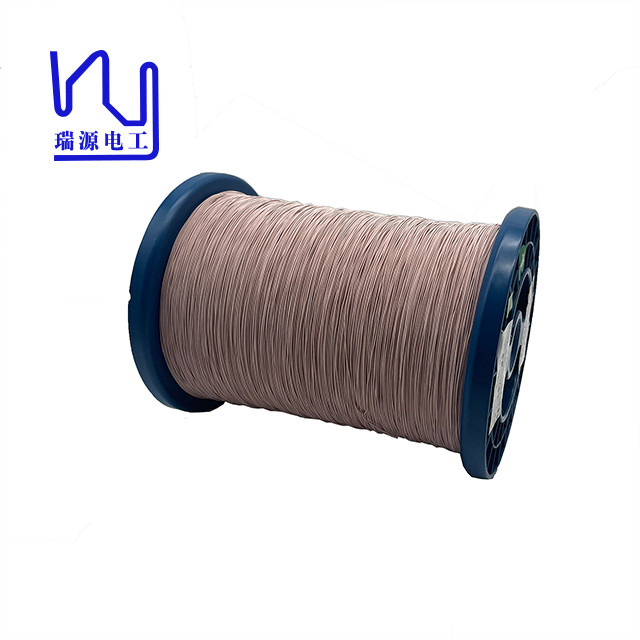

Ustc155 0.04mm Litz Magnet Wire High Frequency Nylon / Polyster Silk Covered

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	USTC155 0.04mm High Frequency Nylon / Polyster Silk Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.04mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	USTC155 0.04mm High Frequency Nylon / Polyster Silk Covered Litz Wire
No. Of Strands:	140
Highlight:	ustc155 litz magnet wire , 0.04 mm litz magnet wire , super enamelled copper ustc litz wire

Product Description

USTC155 0.04mm High Frequency nylon / polyster silk covered litz wire

Popular for high frequency applications.It is suitable for manufacturing all kinds of electronic instruments, inductance components and other occasions. Good high-frequency electrical performance.

Here are the datasheet of nylon

Datasheet for nylon6
Model	Lot No	Tensile strength(CN/dtex)	CV value	Breaking Elongation	CV value
93dtex/48f	8501	4.31	3.84	66.6	3.12
	8502L	4.27	3.87	67.5	3.53

Item	Standard	Sample 1	Sample 2
single wire conductor diameter (mm)	0.04±0.002	0.038	0.0.004
Outer diameter of single wire(mm)	0.045-0.076	0.052	0.0554
Maximum overall dimension (mm)	0.86	0.71	0.75
Pitch(mm)	27±3	√	√
Max.Resistance((Ω/m at20℃)	0.1119	0.1010	0.1006
Mini breakdown voltage (V)	1300	3900	4100
Max pin holes faults/6m	24	5	4
Solderablilty	390±5℃, 6s	√	√
Surface	Smooth	√	√

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
