Custom Alcohol Self Adhesive Enameled Copper Winding Wire Flat Rectangular

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	2mm*0.2mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Cusotm Alcohol Self Adhesive Flat Rectangular Enameled Copper Winding Wire	Thermal Rating:	220
Insulation Material:	Amide Imide	Width:	2.0mm
Thickness:	0.2mm	Conductor Material:	Copper
Key Word:	Cusotm Alcohol Self Adhesive Flat Rectangular Enameled Copper Winding Wire
Highlight:	self adhesive enameled copper winding wire , 0.2mm enameled copper winding wire , enamelled rectangular copper wire

Product Description

Custom Alcohol Self Adhesive flat Rectangular Enameled Copper Winding Wire

The Enemled flat wire is a type of coated wire of a rectangular shaped conductor material with an R angle. It is depicted by the tapered side value, the width of the conductor, heat resistance grade, thickness, and type of the coating film. The conductor used i mostly copper, copper alloy or copper clad aluminium(CCA). Compared with the round wire, the flat wire has unique advantages and characteristics and therefore is employed in many fields.

Product name	Custom Alcohol Self Adhesive flat Rectangular Enameled Copper Winding Wire
Coating material	AIW
Thermal class	220
Key word	Custom Alcohol Self Adhesive flat Rectangular Enameled Copper Winding Wire

Test report of AIW Bonding 0.2mm*2mm

Test item	Technical standard	Result
Conductor Dimension	Thickness 0.191mm-0.209mm	0.200mm
Conductor Dimension	Width 1.94mm-2.06mm	2.025mm
Insulation	Thickness 0.01mm-0.04mm	0.010mm
Insulation	Width 0.01mm-0.04mm	0.018mm
Bonding layer thickness	Min. 0.002mm	0.004mm
Overall dimension	Thickness Max. 0.260mm	0.248mm
Overall dimension	Width 1.94mm-2.06mm	2.069mm
Dielectric breakdown voltage	Min. 0.7kv	2.55kv
Pinhole	3 pcs/5m	0
Conductor resistance	Max. 47.13Ω/km 20℃	42.225
Bonding strength	Min. 0.29 N/mm	0.31
Elongation	Min. 30%	43%
Appearance	No scratch, no dirt	No scratch, no dirt
Flexibility	No crack	good
Adherence	No crack	good
Thermal shock	No crack	good
Solderability	no	no

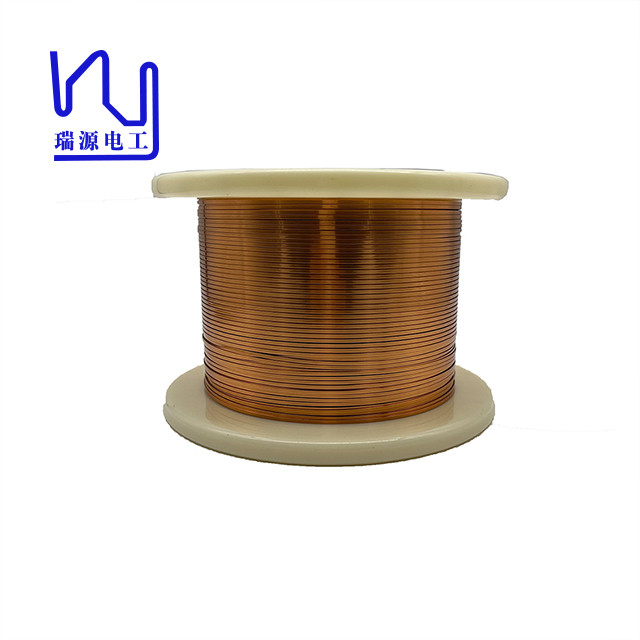

Custom Alcohol Self Adhesive Enameled Copper Winding Wire Flat Rectangular 0

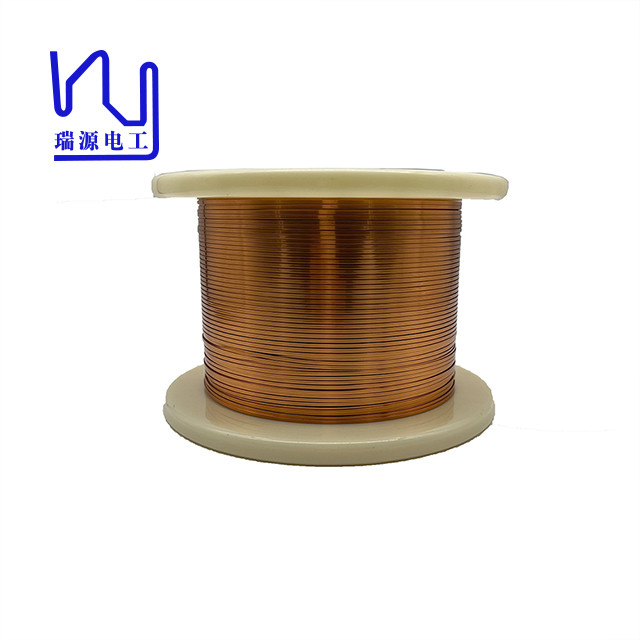

Custom Alcohol Self Adhesive Enameled Copper Winding Wire Flat Rectangular 1

Custom Alcohol Self Adhesive Enameled Copper Winding Wire Flat Rectangular 2

Custom Alcohol Self Adhesive Enameled Copper Winding Wire Flat Rectangular 3
