2.0mm Class 220 Self Adhesive Flat Enameled Copper Wire For Motor

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2mm*0.2mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 2.0mm Class 220 Self Adhesive Flat Enameled Copper Wire For Motor Thermal Rating: 220
Insulation Material: Amide Imide Width: 2.0mm
Thickness: 0.2mm Conductor Material: Copper
Key Word: 2.0mm Class 220 Self Adhesive Flat Enameled Copper Wire For Motor
High Light:

2.0mm flat enameled copper wire

,

class 220 flat enameled copper wire

,

self adhesive imide winding wires


Product Description

2.0mm Class 220 Self Adhesive flat Enameled Copper Wire For Motor



Enamelled wire is a main kind of winding wire. It consists of conductor and insulating layer. After annealing and softening, the bare wire is painted and baked many times. However, it is not easy to produce products that meet both standard requirements and customer requirements. It is affected by raw material quality, process parameters, production equipment, environment and other factors. Therefore, the quality characteristics of various enameled wires are different, but they all have mechanical, chemical, electrical and thermal properties.

Enamelled wire is the main raw material of electrical machinery, electrical appliances and household appliances. Especially in recent years, the electric power industry has achieved sustained and rapid growth, and the rapid development of household appliances has brought a broader field to the application of enameled wire. Accordingly, higher requirements have been put forward for enameled wire.



Product name

2.0mm Class 220 Self Adhesive flat Enameled Copper Wire For Motor

Coating material

AIW

Thermal class

220

Key word

2.0mm Class 220 Self Adhesive flat Enameled Copper Wire For Motor



Test report of AIW Bonding 0.2mm*2mm

Test item

Technical standard

Result

Conductor Dimension

Thickness 0.191mm-0.209mm

0.200mm

Width 1.94mm-2.06mm

2.025mm

Insulation

Thickness 0.01mm-0.04mm

0.010mm

Width 0.01mm-0.04mm

0.018mm

Bonding

layer thickness

Min. 0.002mm

0.004mm

Overall dimension

Thickness Max. 0.260mm

0.248mm

Width 1.94mm-2.06mm

2.069mm

Dielectric

breakdown voltage

Min. 0.7kv

2.55kv

Pinhole

3 pcs/5m

0

Conductor resistance

Max. 47.13Ω/km 20℃

42.225

Bonding strength

Min. 0.29 N/mm

0.31

Elongation

Min. 30%

43%

Appearance

No scratch, no dirt

No scratch, no dirt

Flexibility

No crack

good

Adherence

No crack

good

Thermal shock

No crack

good

Solderability

no

no

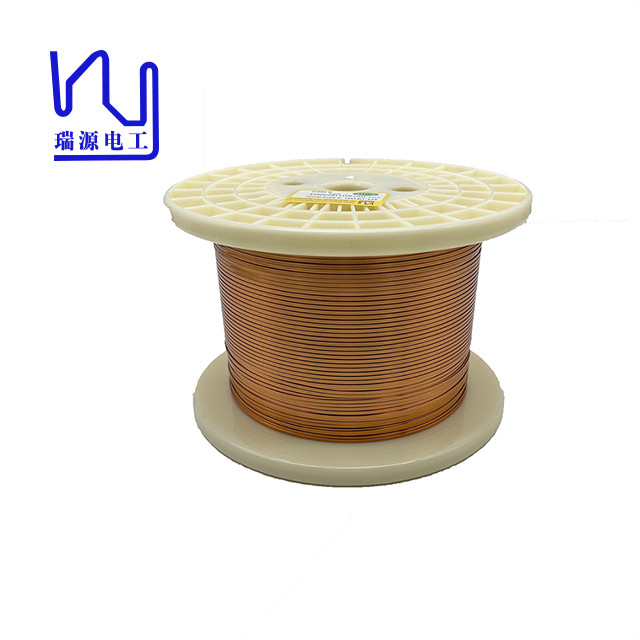

2.0mm Class 220 Self Adhesive Flat Enameled Copper Wire For Motor 0

2.0mm Class 220 Self Adhesive Flat Enameled Copper Wire For Motor 1

2.0mm Class 220 Self Adhesive Flat Enameled Copper Wire For Motor 2

2.0mm Class 220 Self Adhesive Flat Enameled Copper Wire For Motor 3
