Self Bonding Rectangular Copper Wire Aiw 2mm*0.2mm 200c Motor Winding

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2mm*0.2mm
Minimum Order Quantity: 3kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Self Bonding AIW 2mm*0.2mm 200C Rectangular Enamel Copper Wire For Motor Winding Thermal Rating: 220
Insulation Material: Amide Imide Width: 2.0mm
Thickness: 0.2mm Conductor Material: Copper
Key Word: Self Bonding AIW 2mm*0.2mm 200C Rectangular Enamel Copper Wire For Motor Winding
High Light:

self bond rectangular copper wire

,

rectangular copper wire motor winding

,

self bond rectangular enamelled copper wire


Product Description

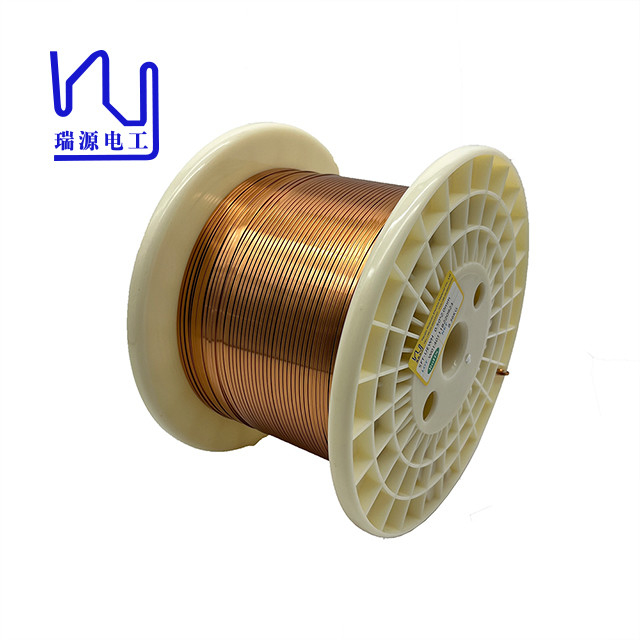

Self Bonding AIW 2mm*0.2mm 200C Rectangular Enamel Copper Wire for Motor Winding



Other than round enameled copper wire, Ruiyuan also provides custom rectangular enamel copper wire. We are able to manufacture rectangular magnet wire coated with various enamels such as AIW, EI/AIW, PEEK, PIW, FP, UEW. At Ruiyuan, you are able to place an order with low minimum order quantity and superior quality. Over decades of accumulated experiences in the industry, Ruiyuan is able to provide 10,000 sizes of enameled rectangular copper wire.



Product name

Self Bonding AIW 2mm*0.2mm 200C Rectangular Enamel Copper Wire for Motor Winding

Coating material

AIW

Thermal class

220

Key word

Self Bonding AIW 2mm*0.2mm 200C Rectangular Enamel Copper Wire for Motor Winding



Test report of AIW Bonding 0.2mm*2mm

Test item Technical standard Result
Conductor Dimension Thickness 0.191mm-0.209mm 0.200mm
Width 1.94mm-2.06mm 2.025mm
Insulation Thickness 0.01mm-0.04mm 0.010mm
Width 0.01mm-0.04mm 0.018mm

Bonding

layer thickness

Min. 0.002mm 0.004mm
Overall dimension Thickness Max. 0.260mm 0.248mm
Width 1.94mm-2.06mm 2.069mm

Dielectric

breakdown voltage

Min. 0.7kv 2.55kv
Pinhole 3 pcs/5m 0
Conductor resistance Max. 47.13Ω/km 20℃ 42.225
Bonding strength Min. 0.29 N/mm 0.31
Elongation Min. 30% 43%
Appearance No scratch, no dirt No scratch, no dirt
Flexibility No crack good
Adherence No crack good
Thermal shock No crack good
Solderability no no
