| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.15mm*0.15mm |
| Minimum Order Quantity: | 3kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | UEW / AIW 180 / 220 0.15mm0.2mm Rectangular Winding Wire Square Enameled Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.15mm |
| Thickness: | 0.15mm | Conductor Material: | Copper |
| Key Word: | UEW / AIW 180 / 220 0.15mm0.2mm Rectangular Winding Wire Square Enameled Wire | ||
| High Light: | uew self bonding magnet wire,0.2mm self bonding magnet wire,0.15 mm enamelled copper wire |
||

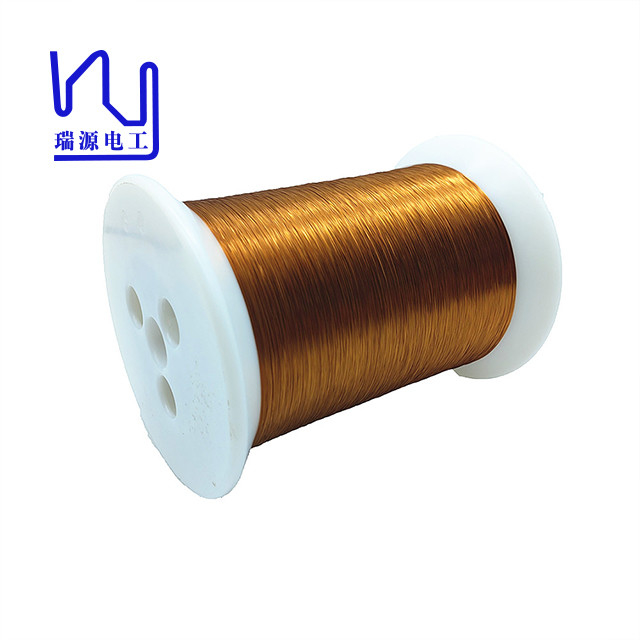

UEW / AIW 180 / 220 0.15mm0.2mm Rectangular winding wire Square Enameled Wire
Advantages:
1.The similar square coil has very small gap and better heat sink performance.
2.Compared with round wire coils of the same size, similar square coils have smaller R angle.
3.Higher space factor, DCR can be reduced by 15%-20%,current increases, thereby increasing power and reducing heat generation.
Application:
Typical applications of enameled square wire are smart watches, smart phones, electronic transformers, UPS power supply, generator, motor, welder, etc.
|
Product name |
UEW / AIW 180 / 220 0.15mm0.2mm Rectangular winding wire Square Enameled Wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
UEW / AIW 180 / 220 0.15mm0.2mm Rectangular winding wire Square Enameled Wire |
| Test Report: 0.15*0.15mm AIW Class 220℃ Hot Air Self-bonding Flat Wire | ||||
| Item | Characteristics | Standard | Test Result | |
| 1 | Appearance | Smooth Equality | Smooth Equality | |
| 2 |
Conductor Diameter(mm) |
Width | 0.150±0.030 | 0.156 |
| Thickness | 0.150±0.030 | 0.152 | ||
| 3 | Thickness of Insulation(mm) |
Width | Min.0.007 | 0.008 |
| Thickness | Min.0.007 | 0.009 | ||
| 4 |
Overall Diameter (mm) |
Width | 0.170±0.030 | 0.179 |
| Thickness | 0.170±0.030 | 0.177 | ||
| 5 | Selfbonding Layer Thickness(mm) | Min.0.002 | 0.004 | |
| 6 | Pinhole(pcs/m) | Max ≤8 | 0 | |
| 7 | Elongation(%) | Min ≥15 % | 30% | |
| 8 | Flexibility and Adherence | No crack | No crack | |
| 9 | Conductor Resistance (Ω/km at 20℃) | Max. 1043.960 | 764.00 | |
| 10 | Breakdown Voltage(kv) | Min. 0.30 | 1.77 | |
