Electrical Industry Rectangular Copper Wire 0.02 - 1.8mm

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	2.00mm * 0.12mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	0.02 - 1.8mm Rectangular / Flat Enamelled Copper Wire	Thermal Rating:	220
Insulation Material:	Amide Imide	Width:	2.00mm
Thickness:	0.12mm	Conductor Material:	Copper
Key Word:	0.12mm*2mm High Filling Ratio Enemelled Rectangular Copper Wire For Windings
Highlight:	electrical industry rectangular copper wire , 0.02 mm rectangular copper wire , 1.8 mm enamelled copper wire

Product Description

0.02 - 1.8mm rectangular / flat enamelled copper wire

In the electrical industry, rectangular wires with defined corner radii are used in motors, generators and transformers.In comparison with round wires, rectangular wires have the advantage of allowing more compact windings, thereby delivering both space and weight savings. The electrical efficiency is also better, which saves energy.

Product name	0.02 - 1.8mm rectangular / flat enamelled copper wire
Coating material	AIW
Key word	0.02 - 1.8mm rectangular / flat enamelled copper wire

Characteristics	Standard			Test Result
Appearance	Smooth Equality			Smooth Equality
Conductor Diameter	Width	3.00	±0.060	2.993
	Thickness	0.160	±0.009	0.593
Min.thickness of insulation	Thickness	0.020		0.047
	Width	0.030		0.593
Overall Diameter (Including bonding layer)	Thickness	Max.3.100		3.040
	Width	Max.0.650		0.635
Pinhole	2 hole/m			0
Elongation	Min ≥30%			41
Flexibility and Adherence	No crack			No crack
Conductor Resistance (Ω/km at 20℃)	10.37			9.11
Breakdown Voltage	Min1.00kv			2.10
Heat shock	No Crack

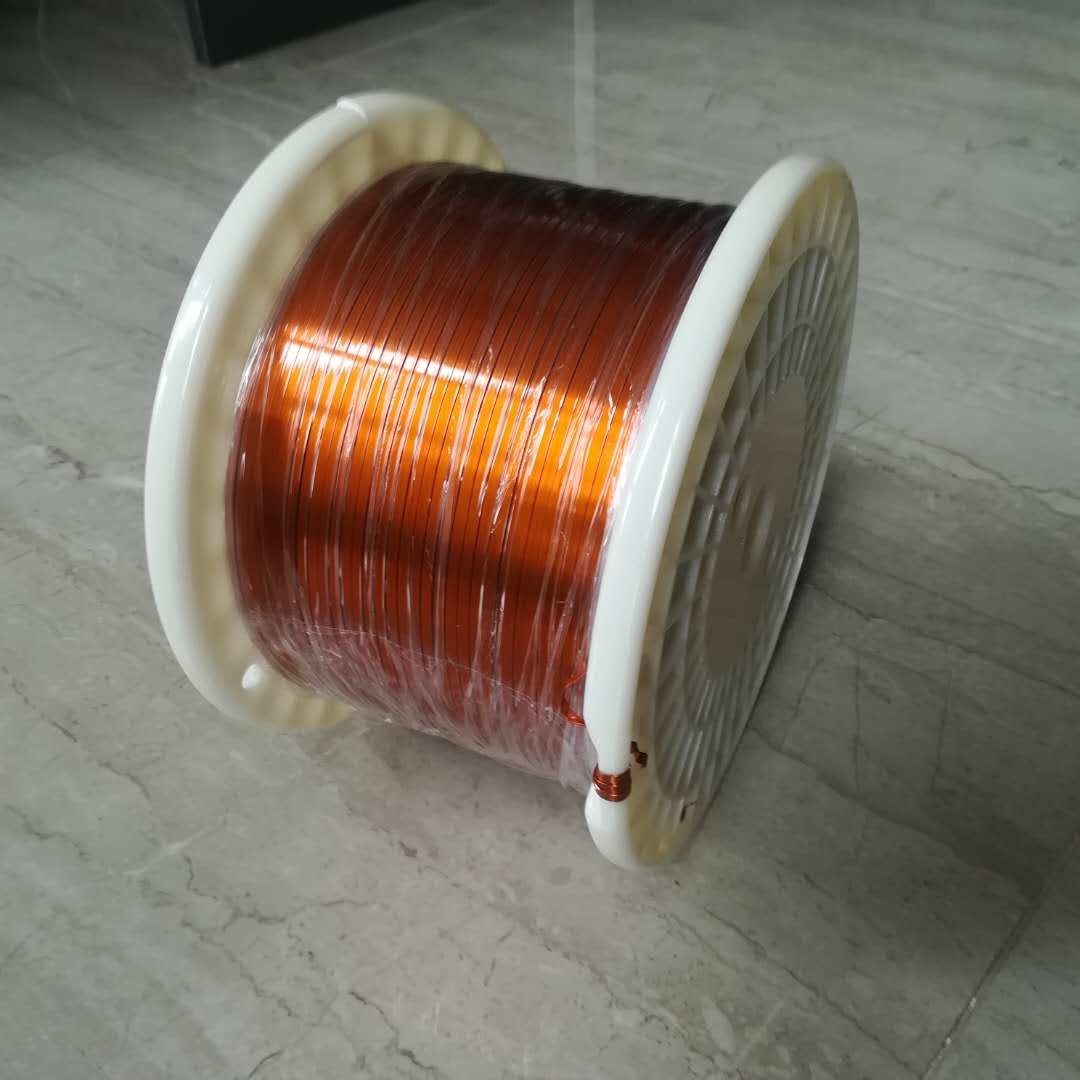

Electrical Industry Rectangular Copper Wire 0.02 - 1.8mm 0

Electrical Industry Rectangular Copper Wire 0.02 - 1.8mm 1

Electrical Industry Rectangular Copper Wire 0.02 - 1.8mm 2

Electrical Industry Rectangular Copper Wire 0.02 - 1.8mm 3
