Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 3.00mm * 0.16mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: AIW220 Super Thin Flat Copper Enameled Wire For Motor Winding Thermal Rating: 220
Insulation Material: Amide Imide Width: 3.00mm
Thickness: 0.16mm Conductor Material: Copper
Key Word: AIW220 Super Thin Flat Copper Enameled Wire For Motor Winding
High Light:

aiw220 flat copper magnet wire

,

super thin flat copper magnet wire

,

motor winding flat enameled copper wire


Product Description

AIW220 Super thin flat copper enameled wire for motor winding



There are myriad electrical applications that rely on enameled rectangular wire. Because of its ability to reduce corona discharge, enamel rectangular wire increases safety and reduces costly electric energy wastage. These wires are also fire-resistant, making them a safe choice to use with equipment that may be exposed to intense heat or flames. It is also easy to wind and store.



Ruiyuan has provided industry-leading enamel rectangular wires for a number of industrial applications including:



Automotive

Electric devices

Engines

Generators

Transformers



Product name AIW220 Super thin flat copper enameled wire for motor winding
Coating material AIW
Key word AIW220 Super thin flat copper enameled wire for motor winding
Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.060

2.993

Thickness
    0.160
±0.009
0.593
Min.thickness of insulation Thickness 0.020 0.047
Width 0.030 0.593
Overall Diameter
(Including bonding layer)
Thickness
Max.3.100
3.040
Width
Max.0.650
0.635
Pinhole
2 hole/m
                          0
Elongation
Min ≥30%
41
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
10.37
9.11
Breakdown Voltage
Min1.00kv
2.10
Heat shock
No Crack

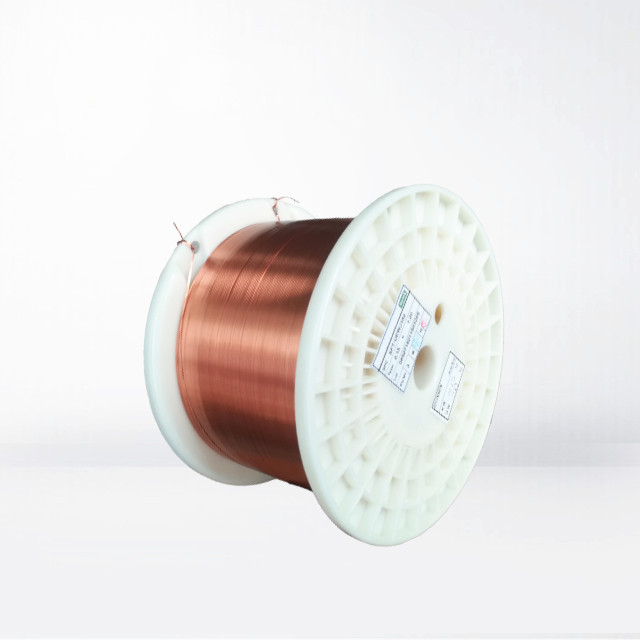

Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding 0

Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding 1

Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding 2

Aiw220 Super Thin Flat Copper Magnet Wire For Motor Winding 3
