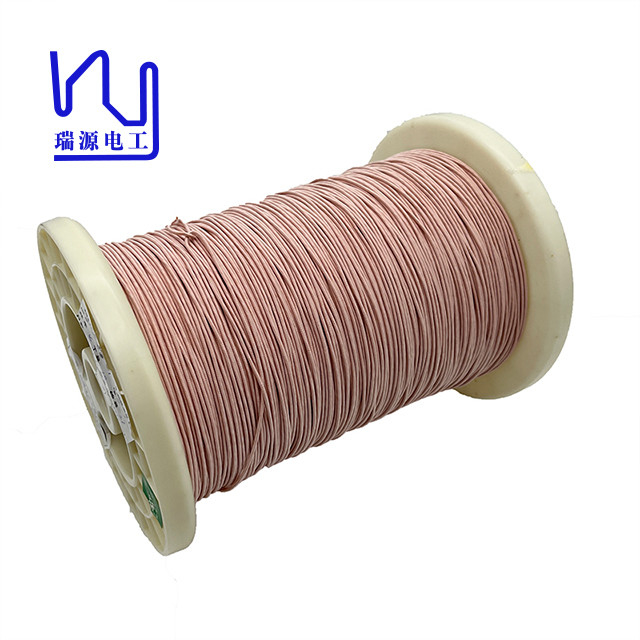

0.08mm Ustc / Udtc Bondable Magnet Wire Nylon Covered Litz

Basic Information

Get Best Price Contact Now

Detail Information

Name:	Custom 0.08mm USTC / UDTC Stranded Copper Wire Nylon Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Custom 0.08mm USTC / UDTC Stranded Copper Wire Nylon Covered Litz Wire
No. Of Strands:	560
Highlight:	0.08mm bondable magnet wire , ustc bondable magnet wire , udtc self bonding copper wire

Product Description

Custom 0.08mm USTC / UDTC Stranded copper Wire Nylon Covered Litz Wire

TData of Thermo adhesive yarns is also applicable

2.1Diameter of the copper

2.2Depends on numbers of single wire

Thermal class 155/180 options , satisfy most application in the market.
Good solderability above temperatures of 410 ℃, Recommended soldering temperature is 420℃ with 7 seconds, that also depends on the thickness of insulation.

Application:

High frequency transformer

High freqeuncy converters

High frequency transceivers

HF chokes

Serving Material	Nylon	Dacron	Natural Silk
Recommended Operation temperature	120℃	120℃	110℃
Elongation at Break	25-46%	25-46%	13-25%
Moisture absorption	2.5-4	0.8-1.5	9
Color	White/Red	White/Red	White
Self bonding layer Option	Yes	Yes	Yes

Name	Custom 0.08mm USTC / UDTC Stranded copper Wire Nylon Covered Litz Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	155 / 180
Type	Custom 0.08mm USTC / UDTC Stranded copper Wire Nylon Covered Litz Wire
