| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.13mm |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW 6 0.13mm Soldering Class 180 Fully Insulated Enameled Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Diameter: | 0.04mm-0.4mm |
| Conductor Material: | Copper | Key Word: | FIW 6 0.13mm Soldering Class 180 Fully Insulated Enameled Wire |
| High Light: | 0.13mm self bonding copper wire,soldering self bonding copper wire,fiw enamel insulated wire |
||

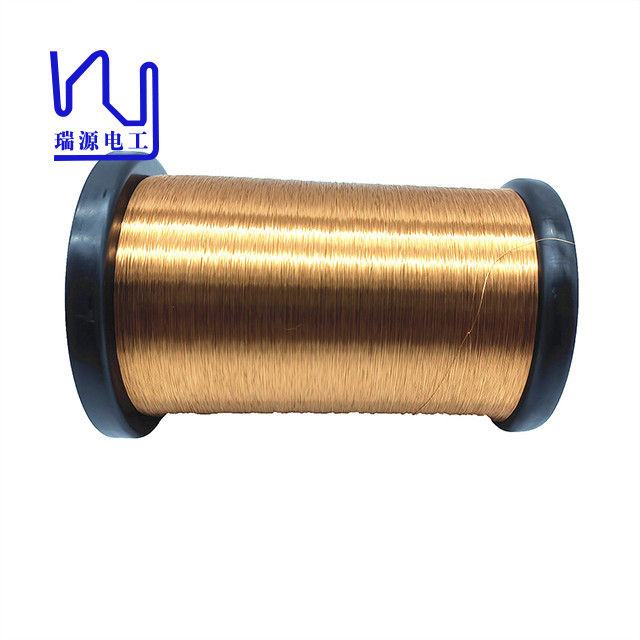

FIW 6 0.13mm Soldering Class 180 Fully Insulated Enameled Wire
Fully insulated enameled wire is an insulated wire that can replace TIW (triple insulated wire) for the production of transformers. All Rvyuan FIW wire passes VDE and UL certification, complying with IEC60317-56/IEC60950 U terms and NEMA MW85-C.
It can withstand high voltage and features easy winding to meet customers’ demands. We are providing FIW ranging from 0.04mm to 0.4mm. Please feel free to contact us if you need it!
|
Name |
FIW 6 0.13mm Soldering Class 180 Fully Insulated Enameled Wire |
|
Key word |
FIW wire |
|
Insulationh |
Enamel |
|
Thermal rating |
180 |
|
Diameter of the enameled copper wire |
0.16mm |
|
Type |
FIW 6 0.13mm Soldering Class 180 Fully Insulated Enameled Wire |
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.130±0.002mm | 0.130mm |
| Thickness of insulation | Min. 0.082mm | 0.086mm |
| Overall diameter | Max. 0.220mm | 0.216mm |
|
Continuity of covering(50V/30m) |
Max. 60 pcs | Max. 0 pcs |
| Breakdown voltage | Min. 12,000V | Min. 13,980V |
| Resistance to softening | Continue 2 times pass | 250℃/Good |
| Solder test(380℃±5℃) | Max. 2s | Max. 1.5s |
| D.C Electrical resistance(20℃) | Max. 1348 Ω/km | 1290 Ω/km |
| Elongation | Min. 35% | 51% |
