| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.3mm |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom High Voltage 0.3mm 0.4mm 0.5mm FIW Wire For Winding | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Diameter: | 0.18mm |
| Conductor Material: | Copper | Key Word: | Custom High Voltage 0.3mm 0.4mm 0.5mm FIW Wire For Winding |
| High Light: | custom solderable enamelled copper wire,0.3mm solderable enamelled copper wire,0.4mm solderable wire |
||

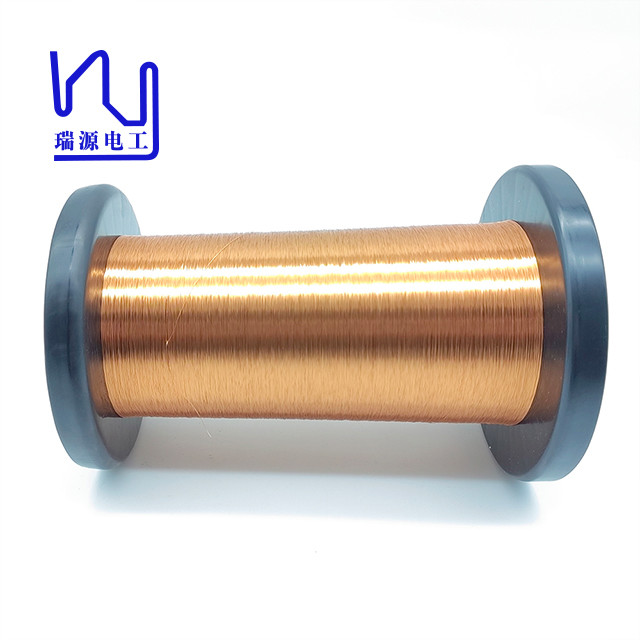

Custom high voltage 0.3mm 0.4mm 0.5mm FIW wire for winding
Product advantages:
1.High temperature rating, G180;
2.High dielectric breakdown voltage min. 15KV6000Vrms,1min;
3.High dielectric strength(No need to peel off the film)
4.Solderable: 390℃,2s
5.Resistance to softening, 250℃, no breakdown, 2 minutes Over Air Reflow (peak temperature at 260°C), the enamel doesn't crack
6.Can be customized to produce natural color (N) / red (R) / green (G) /Blue(B)/Purple(V)/Brown(BR)/Yellow(Y)
7.Excellent winding performance is suitable for high-speed automatic winding machine to improve efficiency;
8. The size is small, minimum of 0.11mm. Extrusion wire is not accessible;
9. The price of FIW wire is lower and about half cheaper than three-layer insulated wire of the same specification.
| Name | Custom high voltage 0.3mm 0.4mm 0.5mm FIW wire for winding |
| Key word | FIW wire |
| Insulationh | Enamel |
| Thermal rating | 180 |
| Diameter of the enameled copper wire | 0.04mm-0.4mm |
| Type | Custom high voltage 0.3mm 0.4mm 0.5mm FIW wire for winding |
