Name: 0.1mm 0.2mm 0.3mm 0.4mm Fiw Wire High Voltage Enameled Copper Solderable
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: FIW
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	0.1mm 0.2mm 0.3mm 0.4mm High Voltage Enameled Copper Wire FIW	Material:	Copper
Size:	0.1mm-0.4mm	Insulation:	UEW
Thermal Rating:	180	Key Word:	0.1mm 0.2mm 0.3mm 0.4mm High Voltage Enameled Copper Wire FIW
Highlight:	0.1mm fiw wire , solderable fiw wire , 0.2mm solderable wire

Product Description

0.1mm 0.2mm 0.3mm 0.4mm High voltage enameled copper wire FIW

Alternative to TIW wire

Rvyuan FIW wire can be a substitute for TIW wire when they are applied to switching power transformers. As there are a huge range of selection of overall diameters for FIW wire, costs can be reduced. Meanwhile, it has better windability and solderability compared to TIW wire.

Name	0.1mm 0.2mm 0.3mm 0.4mm High voltage enameled copper wire FIW
Key word	0.1mm 0.2mm 0.3mm 0.4mm High voltage enameled copper wire FIW
Insulationh	Enamel
Thermal rating	180
Diameter of the enameled copper wire	0.04mm-0.4mm
Type	0.1mm 0.2mm 0.3mm 0.4mm High voltage enameled copper wire FIW

Nom.Diameter(mm)	Min. Breakdown voltage (V)
Nom.Diameter(mm)	Grade ofFIW3	Grade ofFIW4	Grade ofFIW5	Grade ofFIW6
0.040	1458	2349	3159	3969
0.050	1782	2673	3564	4455
0.060	2025	3159	4212	5265
0.071	2187	3159	4212	5265
0.080	2268	3402	4536	5670
0.090	2430	3564	4698	5832
0.100	2592	3888	5184	6480
0.120	2888	4256	5624	6992
0.140	3116	4636	6156	7676
0.160	3420	5092	6764	8436
0.180	3724	5548	7372	9196
0.200	3952	5852	7752	9652
0.250	4712	6992	9272	11552
0.300	5244	7600	9956	12312
0.400	5460	7630	9800	11970

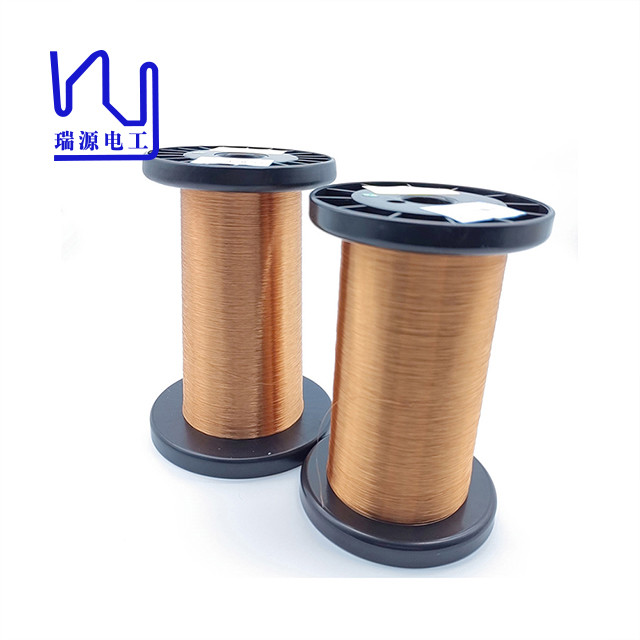

0.1mm 0.2mm 0.3mm 0.4mm Fiw Wire High Voltage Enameled Copper Solderable 0

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	FIW

Minimum Order Quantity:	20Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	100Ton/week
