| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 4.00mm * 0.4mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Factory Flat Winding Wire Enameled Rectangular Copper Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 4.00mm |
| Thickness: | 0.4mm | Conductor Material: | Copper |
| Key Word: | Custom Factory Flat Winding Wire Enameled Rectangular Copper Wire | ||
| High Light: | amide imide rectangular copper wire,0.4 mm rectangular copper wire,rectangular 0.4 mm enamelled copper wire |
||

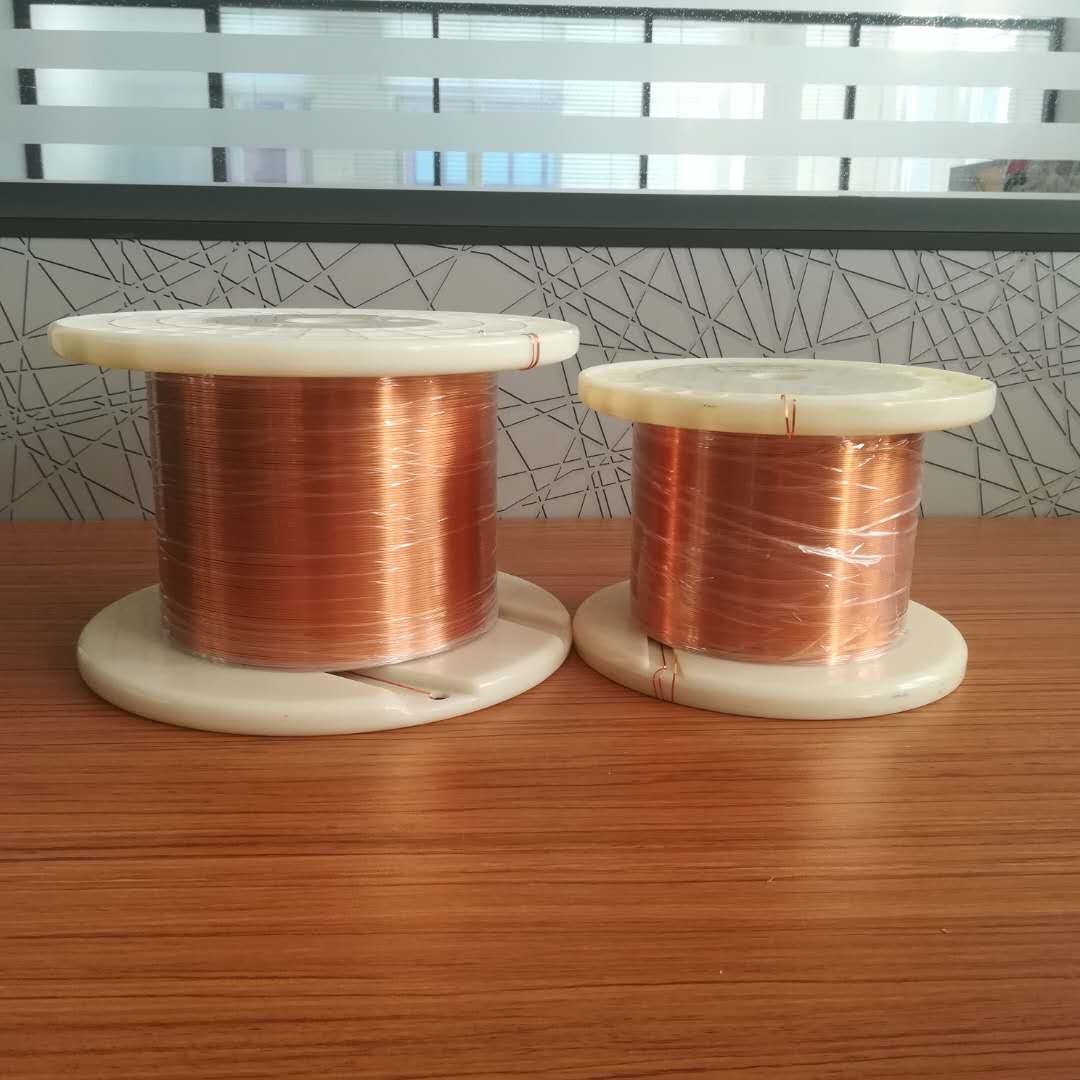

Custom factory flat winding wire enameled rectangular copper wire
Application
Inductors, transformers, filters, transformers, motors, voice coils, solenoid valves, electronics, electrical appliances, motors, network communications, smart home, new energy, automotive electronics, medical electronics, military electronics, aerospace technology.
| Product name | Custom factory flat winding wire enameled rectangular copper wire |
| Coating material | AIW |
| Key word | Custom factory flat winding wire enameled rectangular copper wire |
|
Conductor Dimension (mm)
|
Thickness | 0.370-0.430 |
| Width | 3.970-4.030 | |
|
Thickness of Insulation (mm)
|
Thickness | 0.110 |
| Width | 0.10 | |
|
Overall dimension (mm)
|
Thickness | Max 0.60 |
| Width | Max 4.20 | |
| Breakdown Voltage (Kv) | Min2.0 | |
| Conductor Resistance Ω/km 20°C | Max 11.98 | |
| Pinhole Pcs/m | Max 2 | |
| Elongation % | Min 30 | |
| Temperature rating °C | 180 | |
