2.0mm Rectangular Enamelled Copper Wire Uew / Aiw 180/220

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2.00mm * 0.12mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 2.0mm UEW/AIW 180/220 Rectangular Magnet Copper Wire For Motor Winding Thermal Rating: 220
Insulation Material: Amide Imide Width: 2.00mm
Thickness: 0.12mm Conductor Material: Copper
Key Word: 2.0mm UEW/AIW 180/220 Rectangular Magnet Copper Wire For Motor Winding
High Light:

2.0mm rectangular enamelled copper wire

,

uew rectangular enamelled copper wire

,

2.0mm rectangular copper wire


Product Description

2.0mm UEW/AIW 180/220 rectangular magnet copper wire for motor winding



Application of rectangular Wire

  1. New energy vehicle motors
  2. Generators
  3. Traction motors for aerospace, wind power, rail transit



Characteristics and advantages

  1. Improve the breakdown of the local insulating paint film at high frequency during the voltage rise of the motor
  2. Enhance the service life of variable frequency motors, drive motor, generators.
  3. Good rollability, strong bending resistance, and the paint film does not crack when rolled. The thickness of the corner paint film is similar to that of the top paint film, which is beneficial to the insulation of the user's coil.



Product name 2.0mm UEW/AIW 180/220 rectangular magnet copper wire for motor winding
Coating material AIW
Key word 2.0mm UEW/AIW 180/220 rectangular magnet copper wire for motor winding



Conductor Dimension (mm)



Thickness 0.111-0.129
  Width 1.940-2.060

Thickness of Insulation (mm)



Thickness 0.01-0.04
  Width 0.01-0.04

Overall dimension (mm)



Thickness Max 0.17
  Width Max 2.10
Breakdown Voltage (Kv) 0.70
Conductor Resistance Ω/km 20°C 77.87
Pinhole Pcs/m Max 3
Elongation % 30
Temperature rating °C 220°C

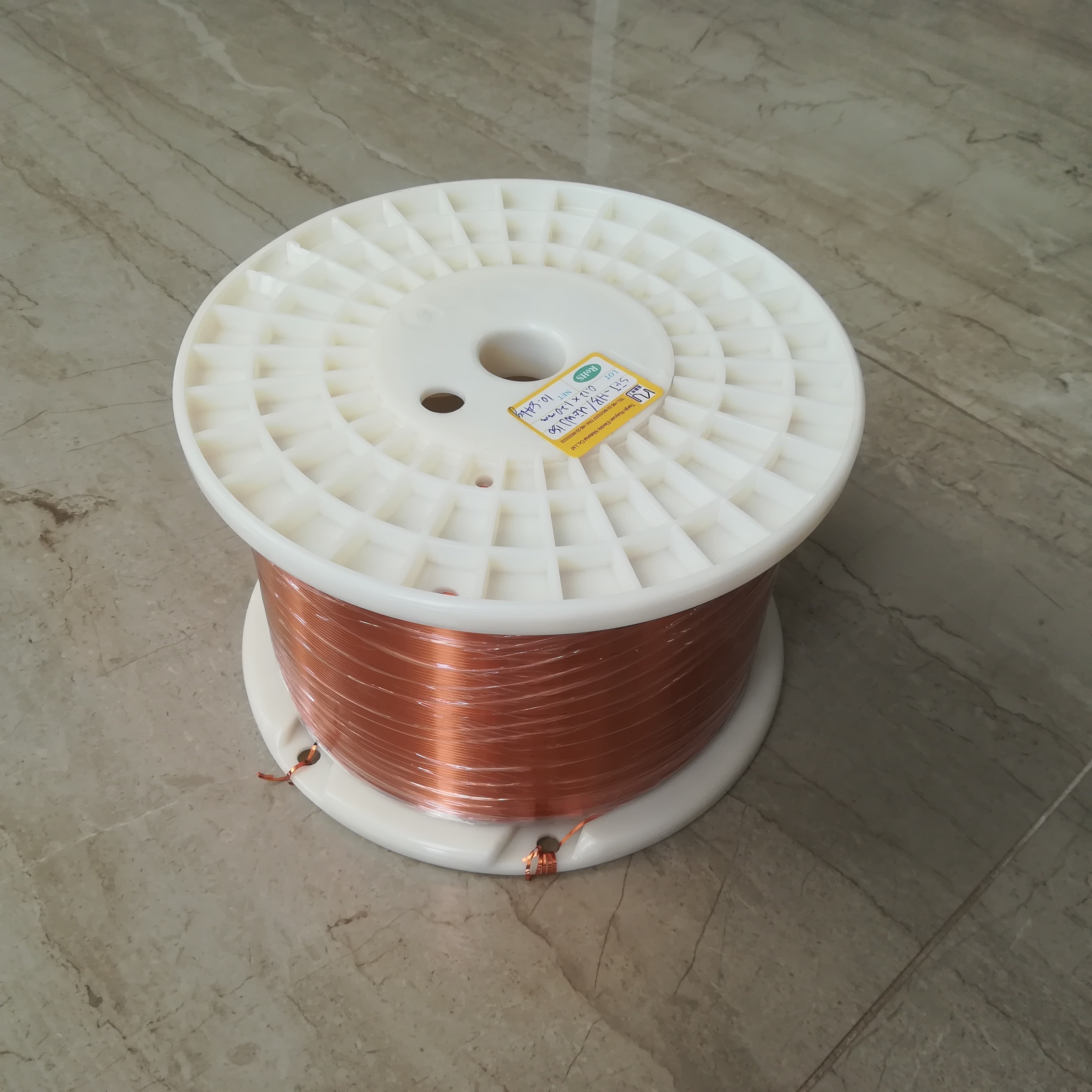

2.0mm Rectangular Enamelled Copper Wire Uew / Aiw 180/220 0

2.0mm Rectangular Enamelled Copper Wire Uew / Aiw 180/220 1

2.0mm Rectangular Enamelled Copper Wire Uew / Aiw 180/220 2

2.0mm Rectangular Enamelled Copper Wire Uew / Aiw 180/220 3
