Ultra Fine Rectangular Copper Wire 0.12mm Aiw 220

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2.00mm * 0.12mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Ultra Fine 0.12mm AIW220 Rectangular Enameled Copper Wire For Motor Winding Thermal Rating: 220
Insulation Material: Amide Imide Width: 2.00mm
Thickness: 0.12mm Conductor Material: Copper
Key Word: Ultra Fine 0.12mm AIW220 Rectangular Enameled Copper Wire For Motor Winding
High Light:

ultra fine rectangular copper wire

,

0.12 mm rectangular copper wire

,

aiw 0.12 mm enamelled copper wire


Product Description

Ultra fine 0.12mm AIW220 rectangular enameled copper wire for motor winding

This custom-made wire SFT-AIW 0.12*2.00 is 220°C corona resistant Polyamideimide enameled flat wire. The customer uses this wire on the drive motor of the new energy vehicle. As the heart of new energy vehicles, there are many magnet wires in the drive motor. If the magnet wire and insulating material cannot withstand the high voltage, high temperature and high voltage change rate during the operation of the motor, they will be easily broken down and reduce the service life of the motor.



At present, when most companies produce enameled wires for new energy vehicle drive motors, due to the simple process and single paint film, the products produced have poor corona resistance and poor thermal shock performance, thus affecting the service life of the drive motor. The birth of corona-resistant flat wire, a good solution to such problems! Better for customers to improve efficiency and reduce costs.



Product name Ultra fine 0.12mm AIW220 rectangular enameled copper wire for motor winding
Coating material AIW
Key word Ultra fine 0.12mm AIW220 rectangular enameled copper wire for motor winding



Conductor Dimension (mm)



Thickness 0.111-0.129
  Width 1.940-2.060

Thickness of Insulation (mm)



Thickness 0.01-0.04
  Width 0.01-0.04

Overall dimension (mm)



Thickness Max 0.17
  Width Max 2.10
Breakdown Voltage (Kv) 0.70
Conductor Resistance Ω/km 20°C 77.87
Pinhole Pcs/m Max 3
Elongation % 30
Temperature rating °C 220°C

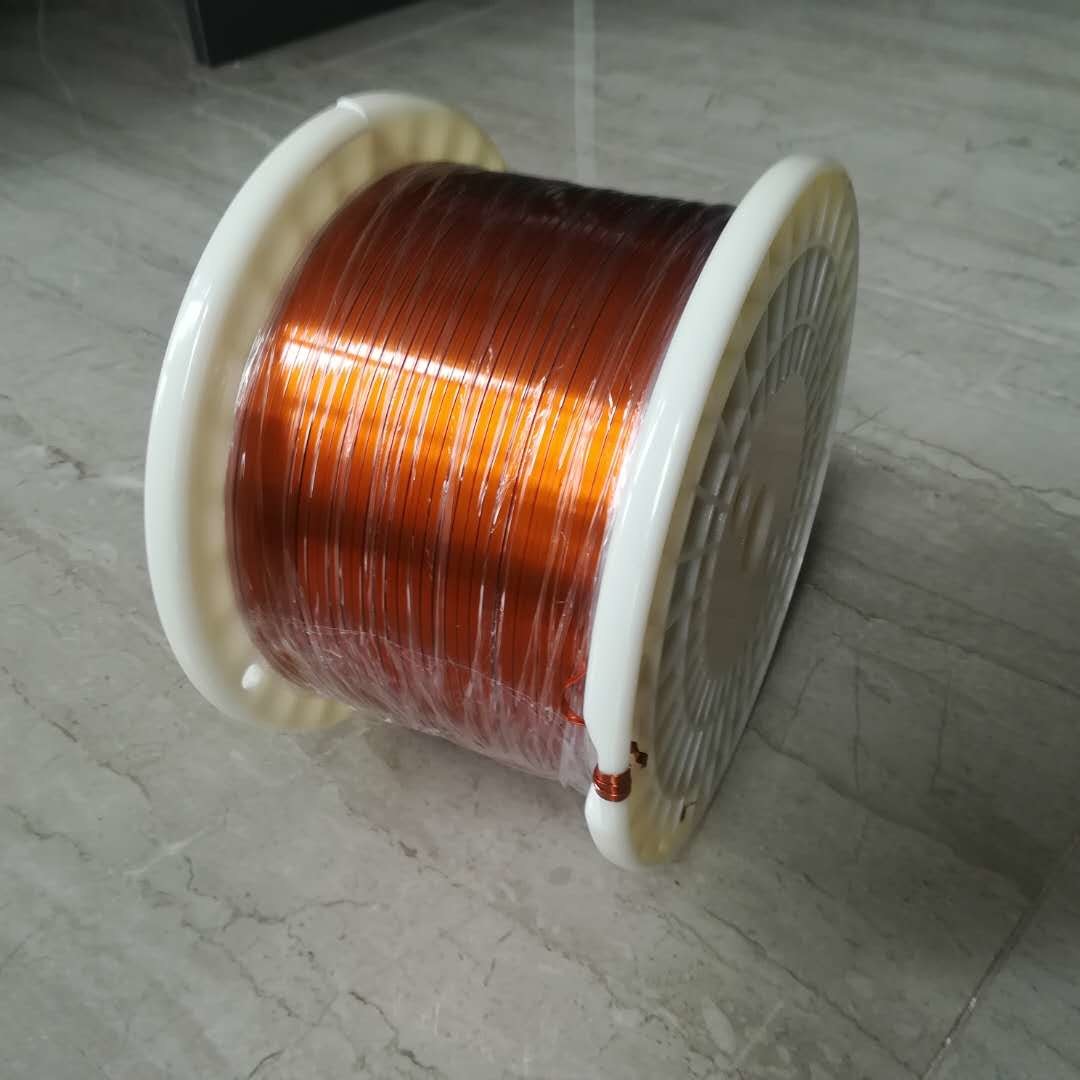

Ultra Fine Rectangular Copper Wire 0.12mm Aiw 220 0

Ultra Fine Rectangular Copper Wire 0.12mm Aiw 220 1

Ultra Fine Rectangular Copper Wire 0.12mm Aiw 220 2

Ultra Fine Rectangular Copper Wire 0.12mm Aiw 220 3
