Sft-Aiw220 0.12*2.00 Rectangular Enameled Copper Wire High Temperature

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	2.00mm * 0.12mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	SFT-AIW220 0.12*2.00 High Temperature Rectangular Enameled Copper Wire	Thermal Rating:	220
Insulation Material:	Amide Imide	Width:	2.00mm
Thickness:	0.12mm	Conductor Material:	Copper
Key Word:	SFT-AIW220 0.12*2.00 High Temperature Rectangular Enameled Copper Wire
Highlight:	0.12 mm rectangular enameled copper wire , high temperature rectangular enameled copper wire , high temperature rectangular copper wire

Product Description

SFT-AIW220 0.12*2.00 High temperature rectangular enameled copper wire

Enamelled flat wire refers to the winding wire obtained by drawing, extruding and rolling through a certain specification of mold by using an enameled round copper wire, and then coated with insulating varnish for many times.

Including enameled copper flat wire, enameled aluminum flat wire...

Product name	SFT-AIW220 0.12*2.00 High temperature rectangular enameled copper wire
Coating material	AIW
Key word	SFT-AIW220 0.12*2.00 High temperature rectangular enameled copper wire

Conductor Dimension (mm)	Thickness	0.111-0.129
	Width	1.940-2.060
Thickness of Insulation (mm)	Thickness	0.01-0.04
	Width	0.01-0.04
Overall dimension (mm)	Thickness	Max 0.17
	Width	Max 2.10
Breakdown Voltage (Kv)		0.70
Conductor Resistance Ω/km 20°C		77.87
Pinhole Pcs/m		Max 3
Elongation %		30
Temperature rating °C		220°C

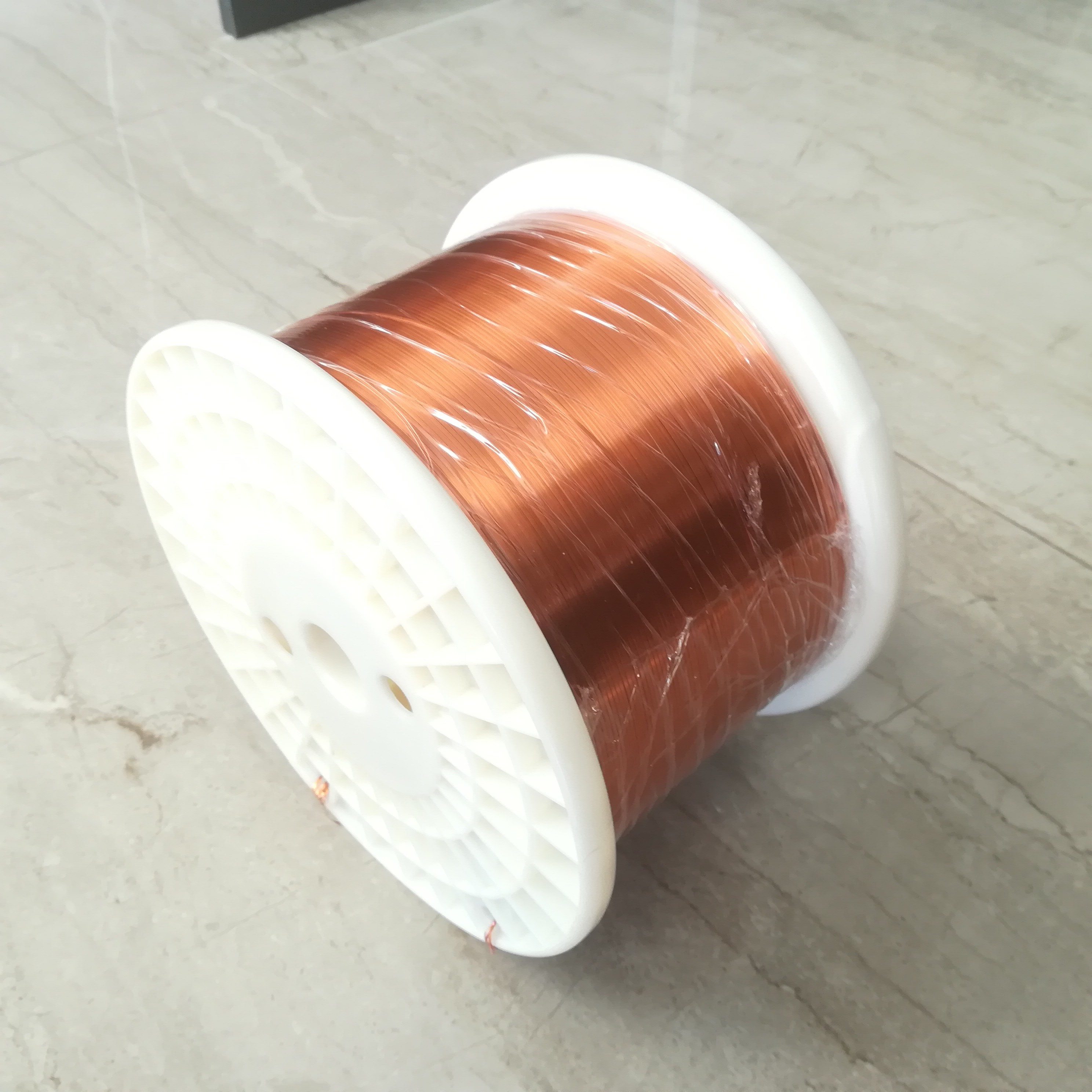

Sft-Aiw220 0.12*2.00 Rectangular Enameled Copper Wire High Temperature 0

Sft-Aiw220 0.12*2.00 Rectangular Enameled Copper Wire High Temperature 1

Sft-Aiw220 0.12*2.00 Rectangular Enameled Copper Wire High Temperature 2

Sft-Aiw220 0.12*2.00 Rectangular Enameled Copper Wire High Temperature 3
