SFT-EI / AIW 5.00*0.20 Rectangular Copper Wire With Enamel Hot Temperature

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 5.00mm * 0.20mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: SFT-EI/AIW 5.00*0.20 Hot Temperature Rectangular Enameled Copper Winding Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 5.00mm
Thickness: 0.20mm Conductor Material: Copper
Key Word: SFT-EI/AIW 5.00*0.20 Hot Temperature Rectangular Enameled Copper Winding Wire
High Light:

0.20 mm rectangular copper wire

,

hot temperature rectangular copper wire

,

hot temperature copper wire with enamel


Product Description

SFT-EI/AIW 5.00*0.20 hot temperature rectangular enameled copper winding wire



The enameled flat wire is an enameled wire with a rectangular conductor with an R angle. It is described by parameters such as conductor narrow boundary value, conductor wide boundary value, paint film heat resistance grade and paint film thickness and type. The conductors can be copper, copper alloys or CCA copper clad aluminum.



Product name SFT-EI/AIW 5.00*0.20 hot temperature rectangular enameled copper winding wire
Coating material AIW
Key word SFT-EI/AIW 5.00*0.20 hot temperature rectangular enameled copper winding wire
Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.060

2.993

Thickness
    0.160
±0.009
0.593
Min.thickness of insulation Thickness 0.020 0.047
Width 0.030 0.593
Overall Diameter
(Including bonding layer)
Thickness
Max.3.100
3.040
Width
Max.0.650
0.635
Pinhole
2 hole/m
                          0
Elongation
Min ≥30%
41
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
10.37
9.11
Breakdown Voltage
Min1.00kv
2.10
Heat shock
No Crack

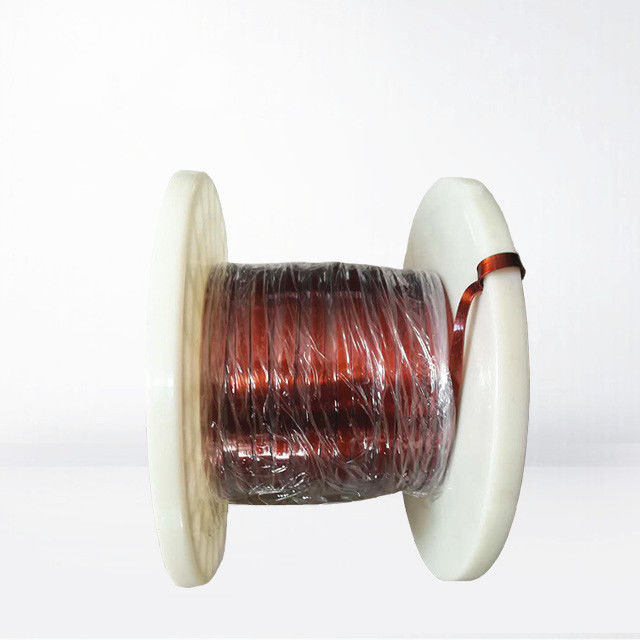

SFT-EI / AIW 5.00*0.20 Rectangular Copper Wire With Enamel Hot Temperature 0
