Detail Information

Product Name:	High Quality FIW4 0.350mm Coated Copper Wire	Thermal Rating:	180
Insulation Material:	Amide Imide	Diameter:	0.35mm
Conductor Material:	Copper	Key Word:	High Quality FIW4 0.350mm Coated Copper Wire
Highlight:	fiw enamelled copper winding wire , 38 awg enamelled copper winding wire , 0.350 mm enamelled copper wire

Product Description

High Quality FIW4 0.350mm Coated Copper Wire

The fully insulated (zero defect) direct welded enameled copper round wire, with high temperature resistance level and

zero defect reinforced insulation, high withstand voltage level to meet the needs of small diameter, easy winding and cost

reduction of electronic products, applied to small transformers , switching power supply, etc., is the best new material to replace

the three-layer insulated wire.


			Name
			38 AWG FIW4 Hgih Voltage Enameled Copper Wire For Winding


			Key word
			FIW wire


			Insulationh
			Enamel


			Thermal rating
			180


			Diameter of the enameled copper wire
			0.10mm


			Type
			38 AWG FIW4 Hgih Voltage Enameled Copper Wire For Winding







Test Item


Unit


Standard Value

			Reality Value


			Min
			Ave
			Max


			Conductor dimensions
			mm
			0.350±0.003
			0.350
			0.350
			0.350


			(Basecoat dimensions)
Overall dimensions

			mm
			Max.0.443
			0.441
			0.441
			0.441


			Insulation Film Thickness
			mm
			Min.0.082
			0.089
			0.089
			0.089


			Bonding Film Thickness
			mm
			-
			-
			-
			-


			Continuity of covering
(50V/30m)

			pcs.
			Max.60
			Max.0


			Flexibility

			/
			/


			Adherence
			/
			No cracking
			Good


			Breakdown Voltage
			V
			Min.12000
			Min.14126


			Resistance to Softening
(Cut Through)

			℃
			Continue 2 times pass
			250℃/Good


			Solder test
(380℃±5℃)

			s
			Max. 2
			Max.1.5


			Bonding Strength
			g
			-
			-


			Electrical Resistance
(20℃)


Ω/Km

			Max.183
			182
			182
			182


			Elongation
			%
			Min. 35
			48
			48
			48


			Breaking Load
			N
			Min
			/
			/
			/


			Surface appearance

			Smooth coloury
			Good

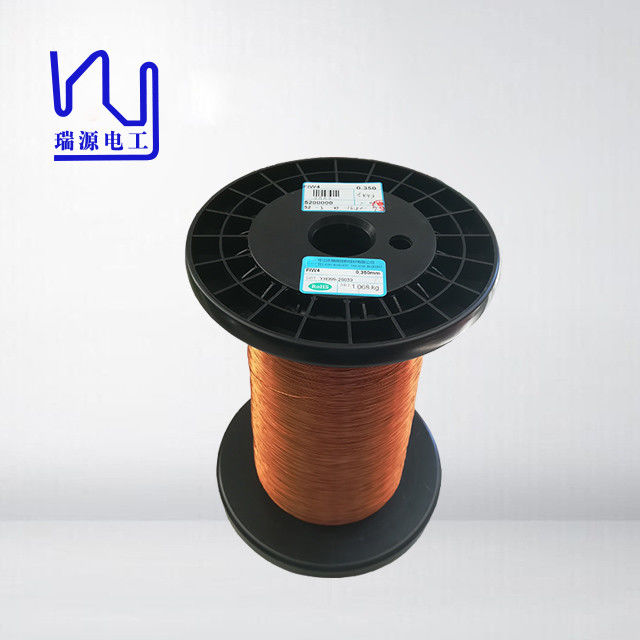

Fiw 4 0.350mm Enamelled Copper Winding Wire Coated 38 Awg 0

Fiw 4 0.350mm Enamelled Copper Winding Wire Coated 38 Awg 1

Fiw 4 0.350mm Enamelled Copper Winding Wire Coated 38 Awg 2

Fiw 4 0.350mm Enamelled Copper Winding Wire Coated 38 Awg 3

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.35mm

Minimum Order Quantity:	20 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
