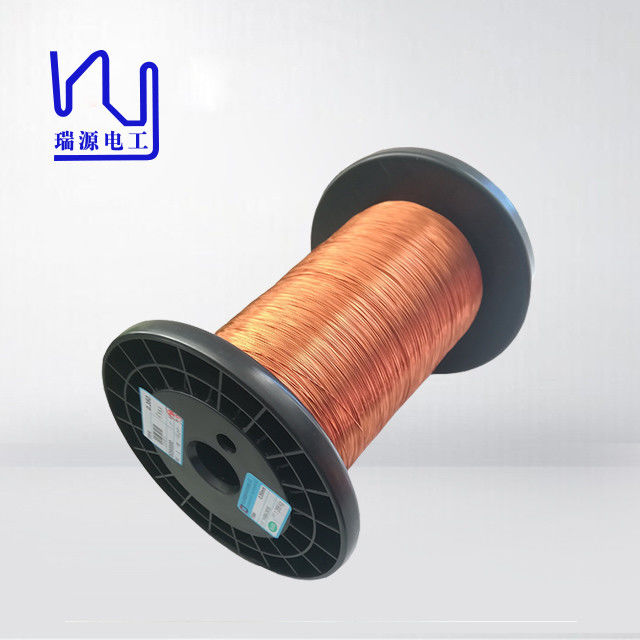

Soldering 0.13mm Enameled Copper Fiw Wire Transformer Winding

Soldering 0.13mm Enameled Copper Fiw Wire Transformer Winding
Soldering 0.13mm Enameled Copper Fiw Wire Transformer Winding
Soldering 0.13mm Enameled Copper Fiw Wire Transformer Winding
Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.13mm
Minimum Order Quantity: 20 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Get Best Price Contact Now
Detail Information
Product Name: 0.13mm Enameled Copper Wire FIW Wire For Transformer Winding Thermal Rating: 180
Insulation Material: Amide Imide Diameter: 0.13mm
Conductor Material: Copper Key Word: 0.13mm Enameled Copper Wire FIW Wire For Transformer Winding
Highlight:

0.13mm fiw wire

,

soldering fiw wire

,

fiw soldering enameled wire

Product Description

0.13mm Enameled Copper Wire FIW Wire For Transformer Winding

FEATURES

Type of insulation layer:Solderable polyurethane enameled round copper wire;
High thermal class 180;
High break down voltage, up to 15KV;
High insulation resistance,up to 6000Vrms,1min;
Solderable at 390℃, (no need to peel insulation);
High cut-through temperature, 250℃,2s no cut through, Air Reflow ( peak temperature 260℃), no crack；
Color option:
natural(N)/red(R)/green(G)/blue(B)/violet(V)/brown(BR)/Yellow(Y);
Very good winding performance, suitable for high speed winding machine.
Min.diameter can be 0.04mm.

IMPROVED PRODUCTIVITY

Simple production processes: No barrier tape and interleaved insulation tape are required
Solderability: Soldering can be conducted without removal of insulation layer
Name 0.13mm Enameled Copper Wire FIW Wire For Transformer Winding
Key word FIW wire
Insulationh Enamel
Thermal rating 180
Diameter of the enameled copper wire 0.13mm
Type 0.13mm Enameled Copper Wire FIW Wire For Transformer Winding

Nom.Diameter(mm)

Min. Breakdown voltage (V)
Grade ofFIW3
Grade ofFIW4
Grade of FIW5
Grade ofFIW6
0.040
1458
2349
3159
3969
0.050
1782
2673
3564
4455
0.060
2025
3159
4212
5265
0.071
2187
3159
4212
5265
0.080
2268
3402
4536
5670
0.090
2430
3564
4698
5832
0.100
2592
3888
5184
6480
0.120
2888
4256
5624
6992
0.140
3116
4636
6156
7676
0.160
3420
5092
6764
8436
0.180
3724
5548
7372
9196
0.200
3952
5852
7752
9652
0.250
4712
6992
9272
11552
0.300
5244
7600
9956
12312
0.400
5460
7630
9800
11970

Soldering 0.13mm Enameled Copper Fiw Wire Transformer Winding 0

Soldering 0.13mm Enameled Copper Fiw Wire Transformer Winding 1

Soldering 0.13mm Enameled Copper Fiw Wire Transformer Winding 2

Soldering 0.13mm Enameled Copper Fiw Wire Transformer Winding 3
