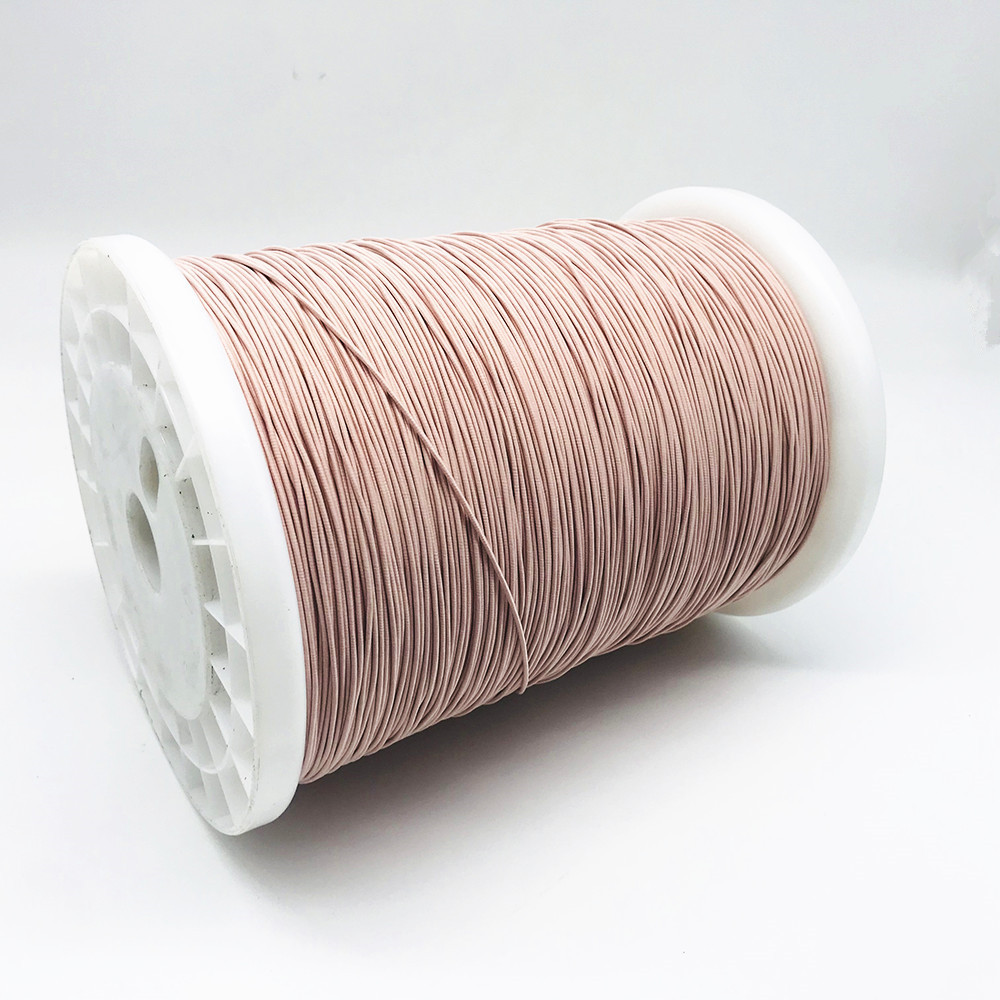

0.05mm Ustc Litz Wire Ustc-F Stranded Copper Winding Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Certification:	ISO9001/ISO14001/UL/SGS	Name:	0.05mm USTC-F Stranded Copper Winding Wire USTC Litz Wire
Diameter:	0.05mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.05mm USTC-F Stranded Copper Winding Wire USTC Litz Wire
No. Of Strands:	2600
High Light:	0.05mm ustc litz wire , enameled ustc litz wire , 0.05mm ustc wire

Product Description

0.05mm USTC-F stranded copper winding wire USTC litz wire

Silk covered litz wire or USTC wire is the wire by utilizing the insulation of UEW and artificial fiber,the interlayer capacitance will be lower to achieve outstanding performance at high frequence and increasing "Q" value.

Name	0.05mm USTC-F stranded copper winding wire USTC litz wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	155 / 180
Type	0.05mm USTC-F stranded copper winding wire USTC litz wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.05mm Ustc Litz Wire Ustc-F Stranded Copper Winding Wire 0

0.05mm Ustc Litz Wire Ustc-F Stranded Copper Winding Wire 1

0.05mm Ustc Litz Wire Ustc-F Stranded Copper Winding Wire 2

0.05mm Ustc Litz Wire Ustc-F Stranded Copper Winding Wire 3

Characteristics	Technical requests	Test Results	Conclusion
1	Inner diameter	0.05±0.003 mm	0.050mm	OK
2	Thickness of coating	≥ 0.005mm	0.009mm	OK
3	Outer diameter	≤ 0.060mm	0.059	OK
4	Twist direction	S/Z	Z	OK
5	Strands	2600	2600	OK
6	Twist Pitch	68±9 mm	70	OK
7	Breakdown Voltage	5300V	6400V	OK
8	Conductor Resistance	≤ 3.75Ω/km	3.24	OK
9	Solderability	YES	YES	OK
10	Pinhole	≤714PCS/5m	21pcs	OK
11	Overlapping Rate	33%/50%/60%	50%	OK
Remark The product meet the requirement of RoHS.			Conclusion Approved
