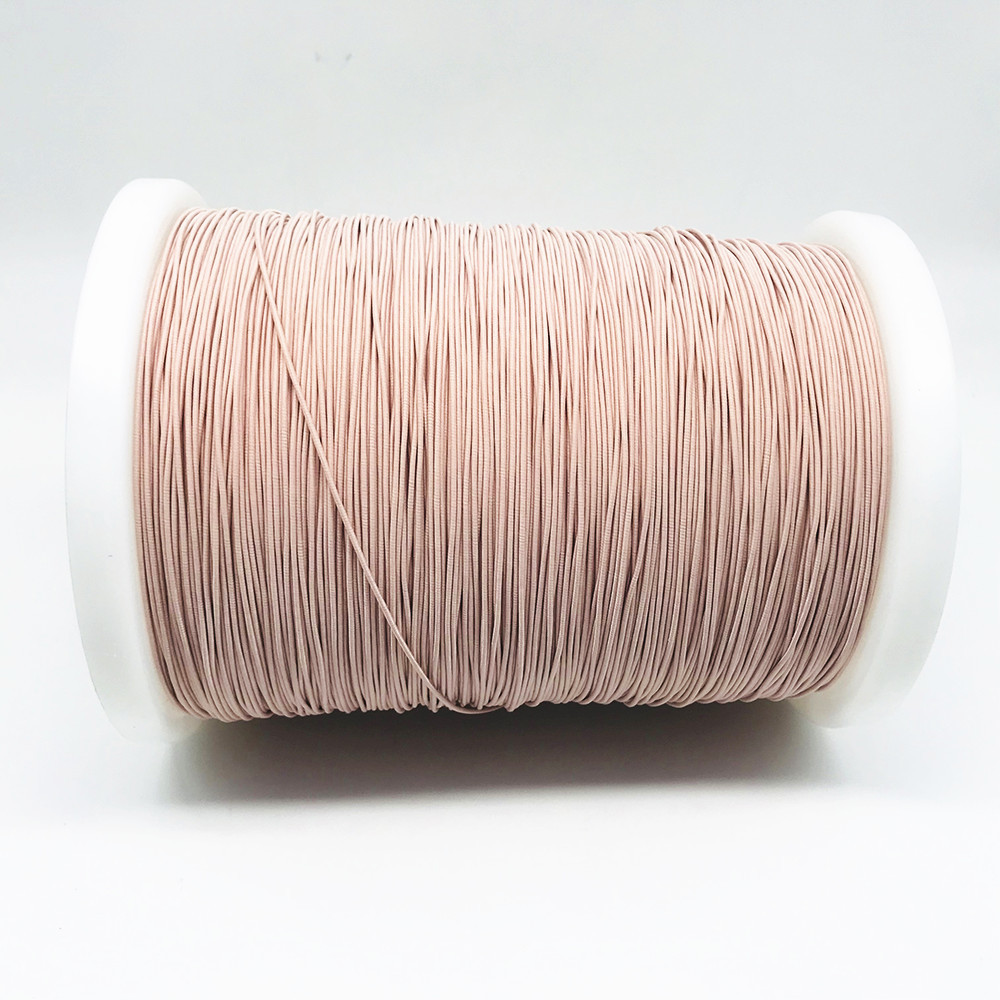

Name: Multi Strands High Frequency Copper Litz Cable Ustc / Udtc For Motor / Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Multi Strands High Frequency Copper Litz Cable Ustc / Udtc For Motor / Transformer

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Multi Strands High Frequency USTC / UDTC Copper Litz Wire For Motor / Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Multi Strands High Frequency USTC / UDTC Copper Litz Wire For Motor / Transformer
No. Of Strands:	24
Highlight:	multi strands copper litz cable , high frequency copper litz cable , ustc super enamelled copper wire

Product Description

Multi strands High frequency USTC / UDTC copper litz wire for motor / transformer

Typical application of litz wire:

High frequency coils.
LITZ is designed to withstand high frequency applications like motor winding transformer frequency changer, converter. It is suitable for heavy duty applications as well as severe temperature.

Name	Multi strands High frequency USTC / UDTC copper litz wire for motor / transformer
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	155 / 180
Type	Multi strands High frequency USTC / UDTC copper litz wire for motor / transformer

Description Conductor diameter*Strand number 0.08mm/24 silk covered litz wire
Single wire	Conductor diameter(mm)	0.080
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0.005
	Maximal overall diameter (mm)	0.103
	Thermal Class	155
Strand Composition	Strand number	24
	Pitch(mm)	20±3
	Stranding direction	S
Insulation layer	Category	Nylon
	UL	/
	Material specs(mm*mm or D)	250+300
	Times of Wrapping	2
	Overlap(%) or thickness(mm),min	0.05
	Wrapping direction	S
Characteristics	Max O. D(mm)	0.66
	Max pin holes 个/6m	30
	Max resistance (Ω/Km at20℃)	157.3
	Mini breakdown voltage (≧V )	1100

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Multi Strands High Frequency Copper Litz Cable Ustc / Udtc For Motor / Transformer 0

Multi Strands High Frequency Copper Litz Cable Ustc / Udtc For Motor / Transformer 1

Multi Strands High Frequency Copper Litz Cable Ustc / Udtc For Motor / Transformer 2

Multi Strands High Frequency Copper Litz Cable Ustc / Udtc For Motor / Transformer 3
