0.08mm*24 Class 155 Stranded Copper Wire Nylon Silk Covered

Basic Information

Get Best Price Contact Now

Detail Information

Name:	0.08mm*24 Class 155 Nylon Silk Covered Stranded Copper Wire USTC Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.08mm*24 Class 155 Nylon Silk Covered Stranded Copper Wire USTC Litz Wire
No. Of Strands:	24
Highlight:	0.08mm stranded copper wire , silk covered stranded copper wire , 15 gauge stranded copper wire

Product Description

0.08mm*24 class 155 Nylon Silk Covered Stranded Copper Wire USTC Litz Wire

Silk covered ltiz wire is our competitive product, and we support customization.

Samples are available.

Name	0.08mm*24 class 155 Nylon Silk Covered Stranded Copper Wire USTC Litz Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	155 / 180
Type	0.08mm*24 class 155 Nylon Silk Covered Stranded Copper Wire USTC Litz Wire

Description Conductor diameter*Strand number 0.08mm/24 silk covered litz wire
Single wire	Conductor diameter(mm)	0.080
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0.005
	Maximal overall diameter (mm)	0.103
	Thermal Class	155
Strand Composition	Strand number	24
	Pitch(mm)	20±3
	Stranding direction	S
Insulation layer	Category	Nylon
	UL	/
	Material specs(mm*mm or D)	250+300
	Times of Wrapping	2
	Overlap(%) or thickness(mm),min	0.05
	Wrapping direction	S
Characteristics	Max O. D(mm)	0.66
	Max pin holes 个/6m	30
	Max resistance (Ω/Km at20℃)	157.3
	Mini breakdown voltage (≧V )	1100

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

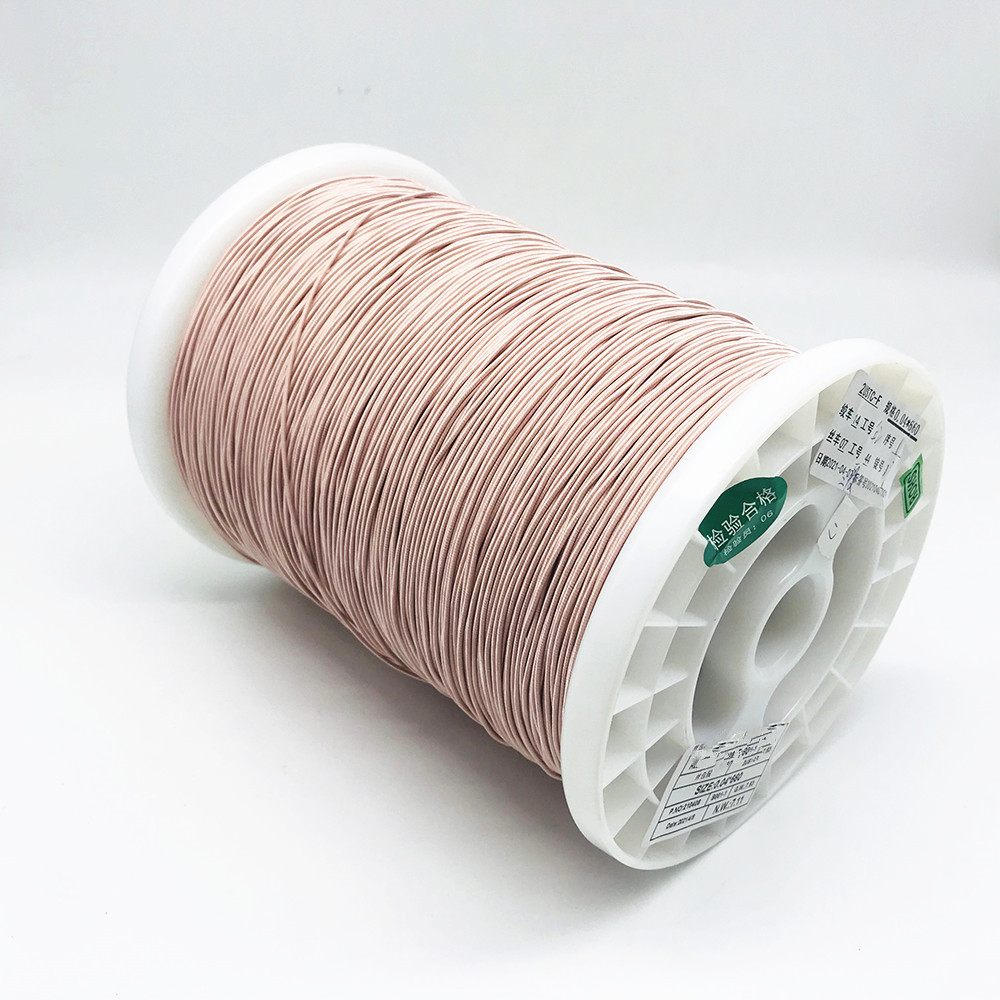

0.08mm*24 Class 155 Stranded Copper Wire Nylon Silk Covered 0
