Certification:	ISO9001/ISO14001/UL/SGS	Name:	0.071 X 630 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding
Diameter:	0.071mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.071 X 630 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding
No. Of Strands:	630
High Light:	0.071mm ustc litz wire , transformer winding ustc litz wire , 0.071mm ustc wire

Product Description

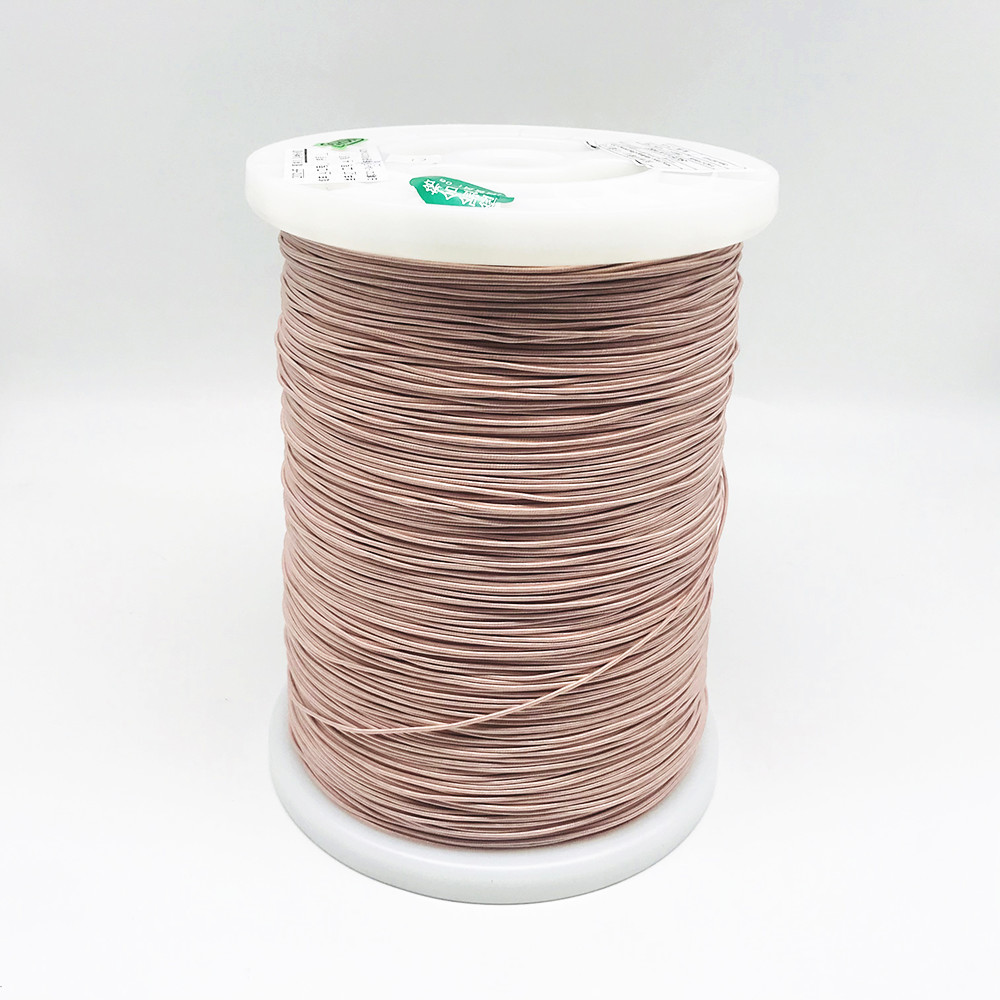

0.071 x 630 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding

High frequency litz wire is used in transformers and chokes to reduce the power losses that occur due to the eddy current and reduce the skin effect.

Operating frequency determines the litz wire parameters and defines the diameter of a single wire.

The higher operating frequency of inductive components, the smaller diameter of a single wire.

Name	0.071 x 630 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.071mm
Number of strands	155 / 180
Type	0.071 x 630 Nylon Covered UDTC Silk Covered Litz Wire For Transformer Winding

Description Conductor diameter x strand number		2UDTC F 0.071*630
Single wire	Conductor diameter(mm)	0.071
	Conductor diameter to tolerance(mm)	±0.003
	Minimal insulation thickness(mm)	0.005
	Maximal overall diamter(mm)	0.079-0.091
	Thermal class	155
Strand composition	Stranding number	630
	Pitch(mm)	47±3
	Stranding direction	S
Insulation layer	Category
	UL	OK
	Material specs(mm*mm or D)	0.025mm
	Times of wrapping	2
	Overlap(%)	50
	Wrapping direction	S
Characteristics	Max O. D(mm)	3.15
	Max pin holes	100/6m
	Max resistance(Ω/km at 20℃)	7.22
	Mini breakdown voltage	≥2000
