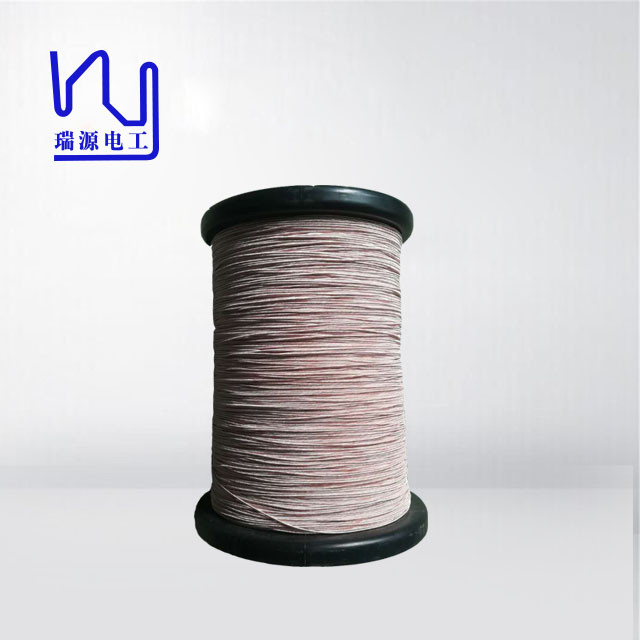

Litz 40 Awg / 17 Ustc Wire Silk Covered Nylon Copper

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Certification:	ISO9001/ISO14001/UL/SGS	Name:	USTC / UDTC F 0.04mm High Frequency Enameled Silk Covered Litz Wire
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	USTC / UDTC F 0.04mm High Frequency Enameled Silk Covered Litz Wire
No. Of Strands:	17
High Light:	litz ustc wire , 40 awg ustc wire , 40 awg litz wire

Product Description

40 AWG / 17 USTC Silk Covered Litz Wire Nylon Copper Wire

Silk covered litz wire, model: awg40(0.08mm)/17

MOQ: 20kg(25000m)

Our factory can customize various types of Litz wire, which is one of our company's main products and best-selling products,including silk covered wire, Mylar wire, etc.

Name	40 AWG / 17 USTC Silk Covered Litz Wire Nylon Copper Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	155 / 180
Type	40 AWG / 17 USTC Silk Covered Litz Wire Nylon Copper Wire

Characteristics	Technical requests	Test Results
Conductor diameter(mm)	0.08±0.003	0.078	0.080
Overall conductor diameter(mm)	0.087-0.103	0.090	0.093
Maximum outer diameter(mm)	0.52	0.42	0.47
Pitch(mm)	27±3	√	√
Maximum Resistance(Ω/m 20℃)	0.2221	0.200	0.202
Minimum Breakdown Voltage(V)	1100	2700	2600
Solderability	390±5℃, 6s	√	√
Pinhole(faults/6m)	Max.20	3	2

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Litz 40 Awg / 17 Ustc Wire Silk Covered Nylon Copper 0

Litz 40 Awg / 17 Ustc Wire Silk Covered Nylon Copper 1

Litz 40 Awg / 17 Ustc Wire Silk Covered Nylon Copper 2

Litz 40 Awg / 17 Ustc Wire Silk Covered Nylon Copper 3
