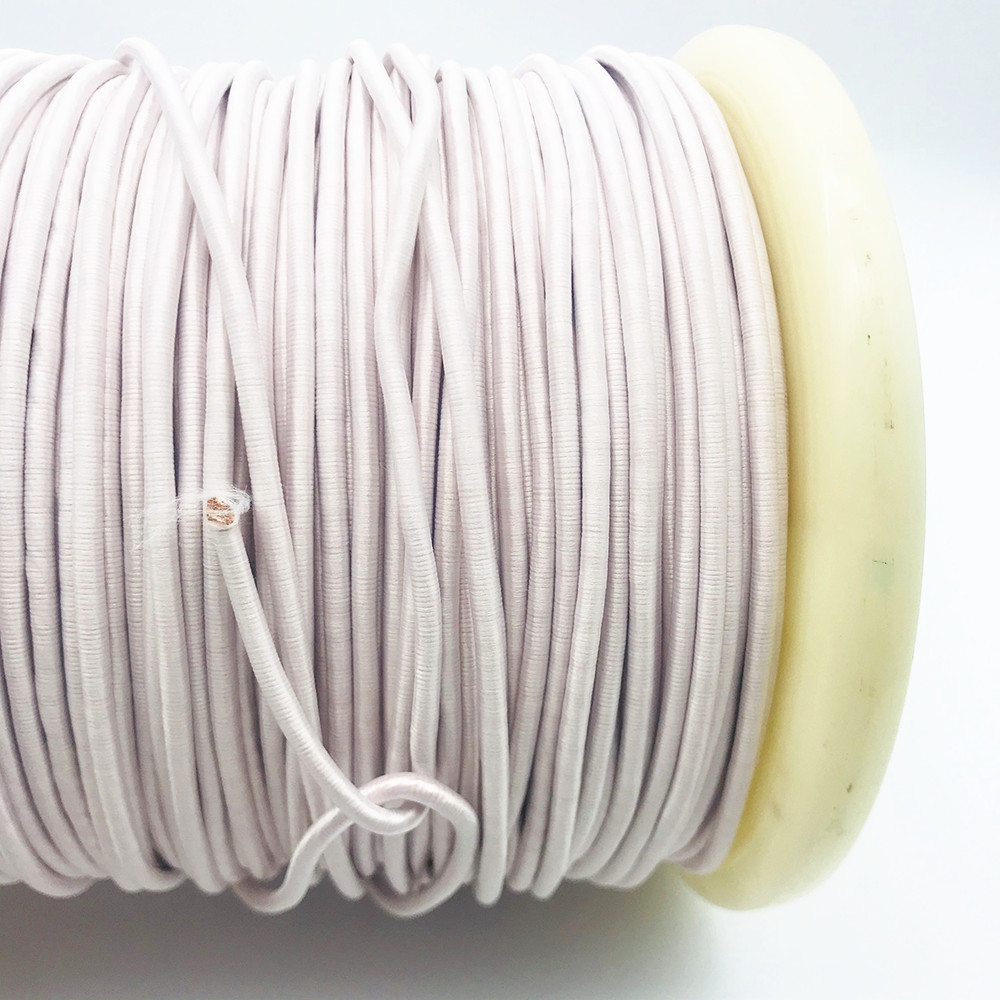

Name: 0.03mm -0.8mm Silk Covered Enamelled Copper Wire 155 / 180 Ustc Udtc High Frequency Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Detail Information

Name:	0.03mm -0.8mm 155 / 180 Ustc UDTC High Frequency Enameled Copper Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Single Wire Size Range:	0.03mm-0.8mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.03mm -0.8mm 155 / 180 Ustc UDTC High Frequency Enameled Copper Litz Wire
No. Of Strands:	560
Highlight:	0.03mm enamelled copper wire , udtc enamelled copper wire , enamel coated magnet wire 30 awg

Product Description

0.03mm -0.8mm 155 / 180 Ustc UDTC High Frequency Enameled Copper Litz Wire

Single wire diameter (mm): 0.03-1.00

Number of strands: 2-8000

Maximum finished outer diameter (mm): 12

Insulation class: Class B/Class F/Class H

Paint film type: polyurethane/polyurethane composite paint

Paint film thickness: 0UEW/1UEW/2UEW/3UEW

Stranding method: single twist/multiple twist

Withstand voltage (V): >1500

Stranding direction: forward (S)/reverse (Z)

Twisting distance: 4-110mm

Color: Natural/Red

Reel Specifications: PT-4/PT-10/PT-15

Features: Compared with single conductors, under the same conductor cross-sectional area, the surface area of the stranded wire is greatly increased, effectively suppressing the influence of the skin effect, and significantly improving the inductance Q value

Application: high frequency transformers and inductors, communication equipment, ultrasonic equipment, video equipment, radio equipment, induction heating equipment, etc.

Test report: 0.08mm x 560 strands, thermal grade 180
Item	Standard	Test result
Single wire diameter mm	0.087-0.103	0.090	0.093
Max. overall diameter(mm)	3.35	2.55	2.70
Max.O.D. mm	0.08±0.003	0.078	0.080
Max. Resistance Ω/m at20℃	0.006741	0.00618	0.00622
Mini breakdown voltage	1100	2700	3200

Name	0.03mm -0.8mm 155 / 180 Ustc UDTC High Frequency Enameled Copper Litz Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	155 / 180
Type	0.03mm -0.8mm 155 / 180 Ustc UDTC High Frequency Enameled Copper Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.03mm -0.8mm Silk Covered Enamelled Copper Wire 155 / 180 Ustc Udtc High Frequency Wire 0

0.03mm -0.8mm Silk Covered Enamelled Copper Wire 155 / 180 Ustc Udtc High Frequency Wire 1

0.03mm -0.8mm Silk Covered Enamelled Copper Wire 155 / 180 Ustc Udtc High Frequency Wire 2

0.03mm -0.8mm Silk Covered Enamelled Copper Wire 155 / 180 Ustc Udtc High Frequency Wire 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
