0.10mm-8.00mm Rectangular Copper Wire Aiw / Uew / Piw Enameled

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 3.00mm * 0.60mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 0.10mm-8.00mm AIW / UEW / PIW Enameled Rectangular Copper Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 3.00mm
Thickness: 0.60mm Conductor Material: Copper
Key Word: 0.10mm-8.00mm AIW / UEW / PIW Enameled Rectangular Copper Wire
High Light:

aiw rectangular copper wire

,

8.00mm rectangular enameled copper wire

,

rectangular copper wire size 0.10mm


Product Description

0.10mm-8.00mm AIW / UEW / PIW enameled rectangular copper wire



Our advantage:
* Our flat enamelled copper wire conductors are precisely dimensioned.
* The coat film is adhered and uniform, and the insulation performance is good.
* Good winding, strong bending resistance, elongation can reach more than 30%.
* Radiation resistance and heat resistance are good, and the temperature level can reach up to 220.
* Products comply with NEMA, IEC, JIS or customer specified specifications.
* We can produce self-adhesive and direct-welded products of many varieties and specifications with short delivery time.



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.060

2.993

Thickness
    0.160
±0.009
0.593
Min.thickness of insulation Thickness 0.020 0.047
Width 0.030 0.593
Overall Diameter
(Including bonding layer)
Thickness
Max.3.100
3.040
Width
Max.0.650
0.635
Pinhole
2 hole/m
                          0
Elongation
Min ≥30%
41
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
10.37
9.11
Breakdown Voltage
Min1.00kv
2.10
Heat shock
No Crack

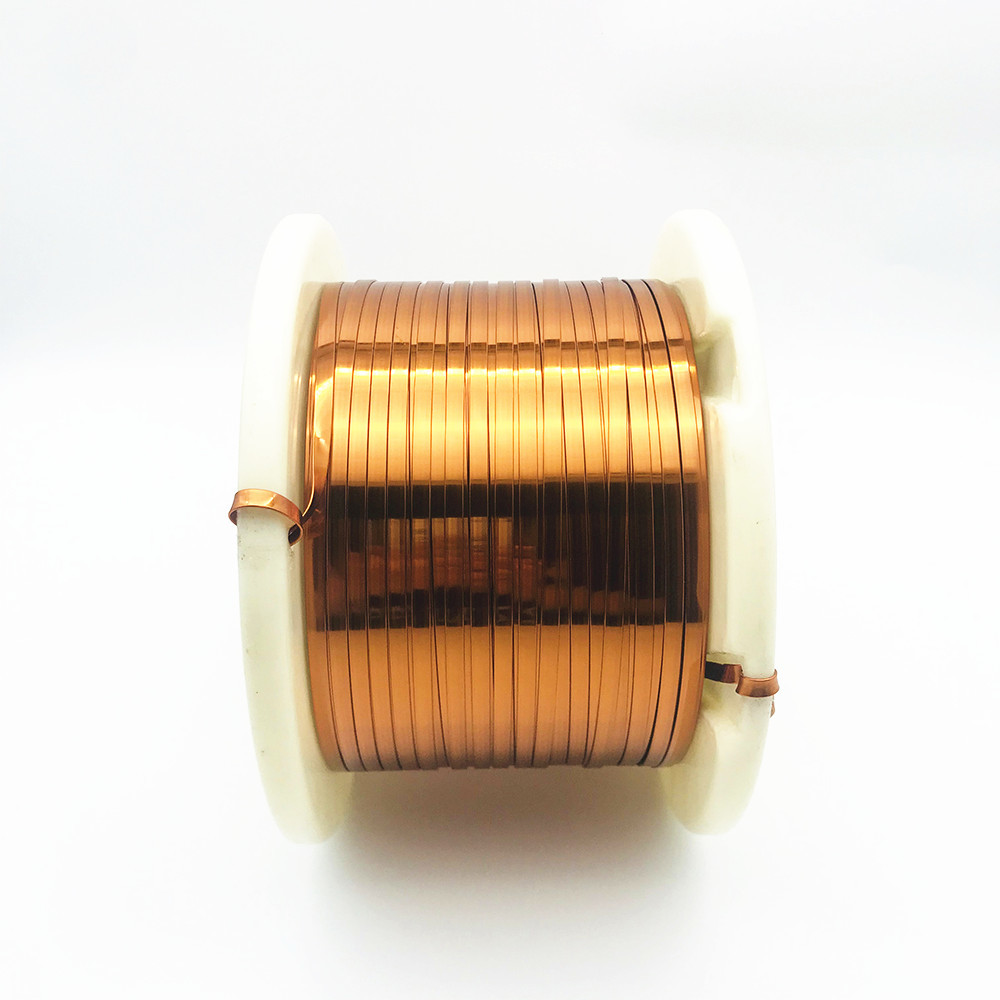

0.10mm-8.00mm Rectangular Copper Wire Aiw / Uew / Piw Enameled 0
