0.6mm Enameled Copper Winding Wire Super Thin High Temperature Rectangular

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 3.00mm * 0.60mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 0.6mm Super Thin High Temperature Rectangular Enameled Copper Winding Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 3.00mm
Thickness: 0.60mm Conductor Material: Copper
Key Word: 0.6mm Super Thin High Temperature Rectangular Enameled Copper Winding Wire
High Light:

0.6mm enameled copper winding wire

,

super thin enameled copper winding wire

,

0.6mm rectangular enameled copper wire


Product Description

0.6mm Super thin high temperature rectangular enameled copper winding wire



Our features:



Flat enameled copper wire has the excellent characteristics of small vibration, low noise and good electromagnetic effect when working with high current.
Under the same conditions, the coil of flat enameled copper wire occupies less space than the round enameled copper wire, so that the production of smaller and lighter electronic and motor products is no longer limited by the coil size.



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.060

2.993

Thickness
    0.160
±0.009
0.593
Min.thickness of insulation Thickness 0.020 0.047
Width 0.030 0.593
Overall Diameter
(Including bonding layer)
Thickness
Max.3.100
3.040
Width
Max.0.650
0.635
Pinhole
2 hole/m
                          0
Elongation
Min ≥30%
41
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
10.37
9.11
Breakdown Voltage
Min1.00kv
2.10
Heat shock
No Crack

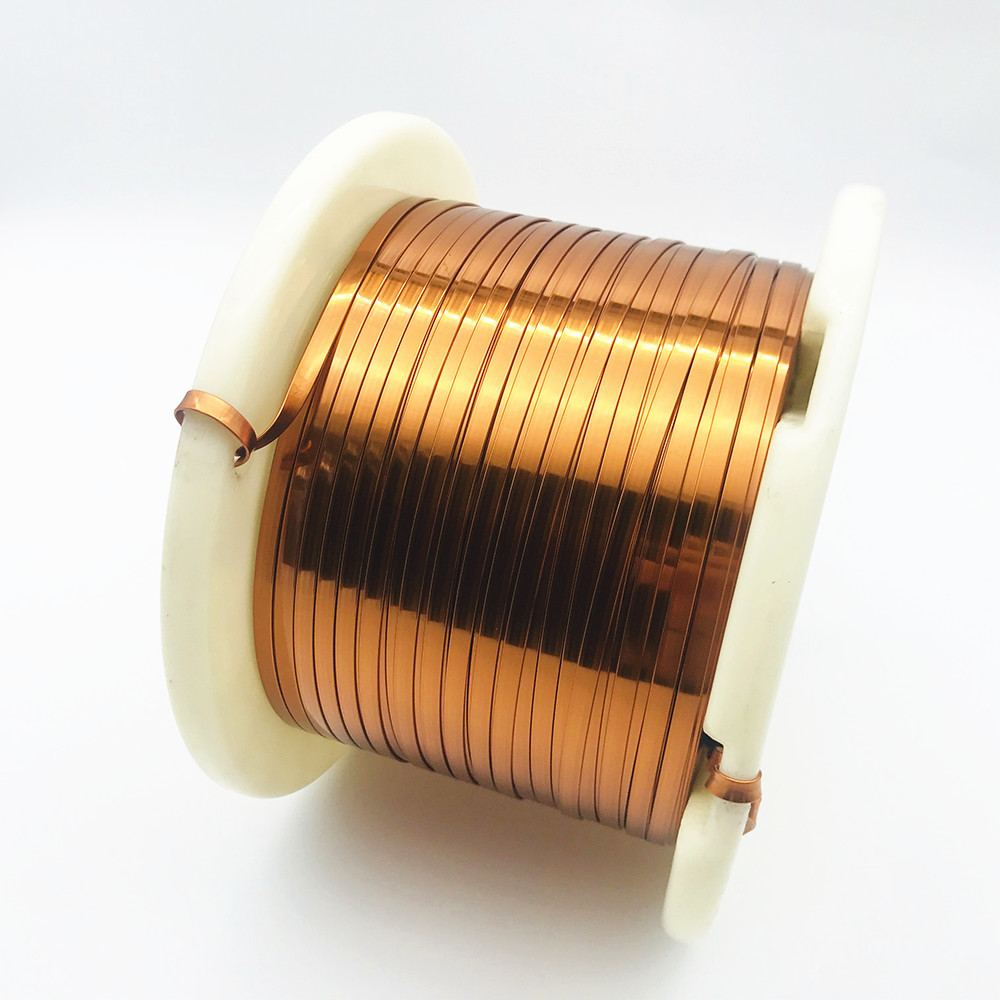

0.6mm Enameled Copper Winding Wire Super Thin High Temperature Rectangular 0

0.6mm Enameled Copper Winding Wire Super Thin High Temperature Rectangular 1

0.6mm Enameled Copper Winding Wire Super Thin High Temperature Rectangular 2

0.6mm Enameled Copper Winding Wire Super Thin High Temperature Rectangular 3
