Aiw 220 Rectangular Copper Wire 3.00mm * 0.60mm For Vehicle

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 3.00mm * 0.60mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: AIW 220 3.00mm * 0.60mm Rectangular Enameled Copper Wire For Vehicle Thermal Rating: 220
Insulation Material: Amide Imide Width: 3.00mm
Thickness: 0.60mm Conductor Material: Copper
Key Word: AIW 220 3.00mm * 0.60mm Rectangular Enameled Copper Wire For Vehicle
High Light:

aiw 220 rectangular copper wire

,

vehicle rectangular copper wire

,

vehicle rectangular enamelled copper wire


Product Description

AIW 220 3.00mm * 0.60mm rectangular enameled copper wire for vehicle



Our features:



In the same winding space, the flat enameled copper wire can have a larger cross-sectional area than the round enameled copper wire, which makes the coil slot full rate high, reduces the resistance, obtains a larger current, and avoids overheating of electronic products. It is more suitable for the needs of high current loads..



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.060

2.993

Thickness
    0.160
±0.009
0.593
Min.thickness of insulation Thickness 0.020 0.047
Width 0.030 0.593
Overall Diameter
(Including bonding layer)
Thickness
Max.3.100
3.040
Width
Max.0.650
0.635
Pinhole
2 hole/m
                          0
Elongation
Min ≥30%
41
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
10.37
9.11
Breakdown Voltage
Min1.00kv
2.10
Heat shock
No Crack

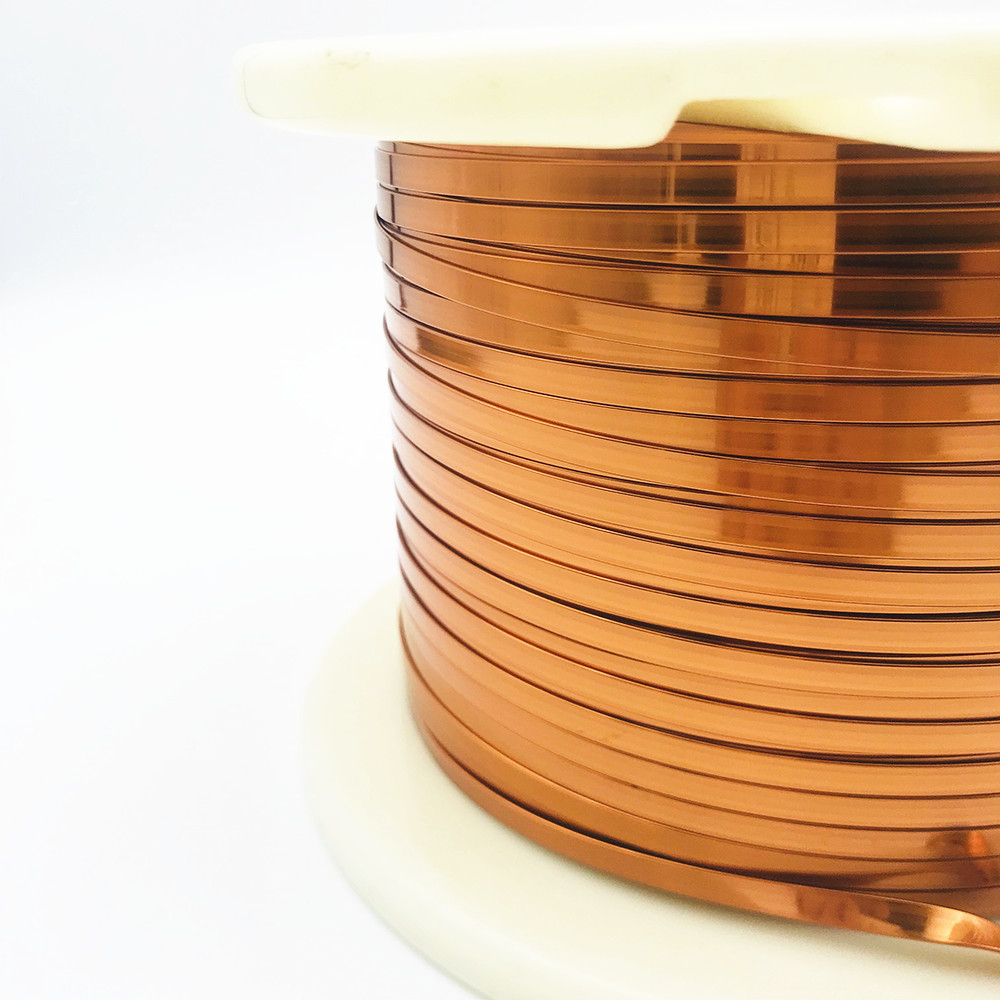

Aiw 220 Rectangular Copper Wire 3.00mm * 0.60mm For Vehicle 0

Aiw 220 Rectangular Copper Wire 3.00mm * 0.60mm For Vehicle 1

Aiw 220 Rectangular Copper Wire 3.00mm * 0.60mm For Vehicle 2

Aiw 220 Rectangular Copper Wire 3.00mm * 0.60mm For Vehicle 3
