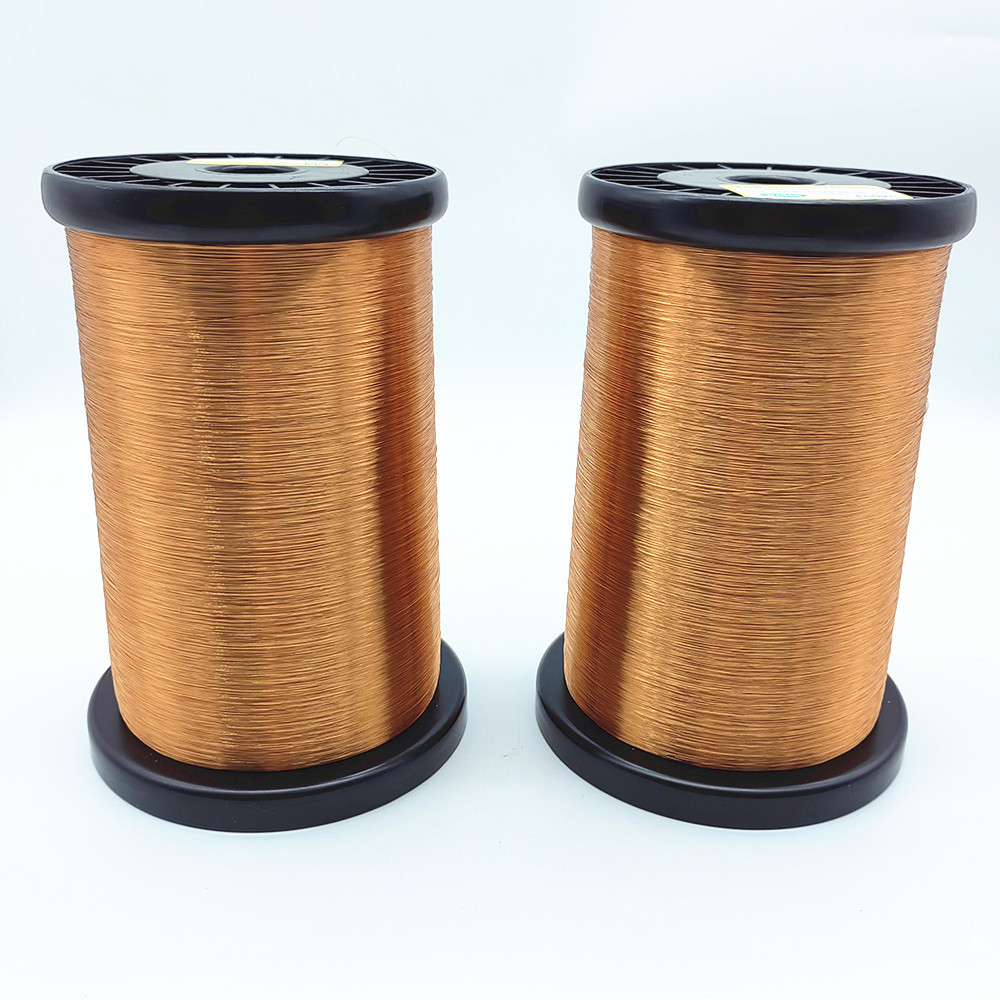

Name: Fiw 3 0.18mm Super Enamelled Copper Wire Winding
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.18mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	FIW 3 Copper Wire 0.18mm Enameled Copper Winding Wire	Thermal Rating:	180
Insulation Material:	Amide Imide	Diameter:	0.18mm
Conductor Material:	Copper	Key Word:	FIW 3 Copper Wire 0.18mm Enameled Copper Winding Wire
Highlight:	0.18mm super enamelled copper wire , fiw super enamelled copper wire , fiw 3 enameled copper winding wire

Product Description

FIW 3 copper wire 0.18mm Enameled copper winding wire

We provide FIW 1 , FIW 2 , FIW 3, FIW 4, FIW 5 and FIW 6 wire.

size range from 0.04mm -0.4mm.


			Name
			FIW 3 copper wire 0.18mm Enameled copper winding wire

			Key word
			FIW wire

			Insulationh
			Enamel

			Thermal rating
			180

			Diameter of the enameled copper wire
			0.18mm

			Type
			FIW 3 copper wire 0.18mm Enameled copper winding wire


			Nom.Diameter(mm)

			Min. Breakdown voltage (V)

			Grade ofFIW3

			Grade ofFIW4

			Grade of FIW5

			Grade ofFIW6

			0.040

			1458

			2349

			3159

			3969

			0.050

			1782

			2673

			3564

			4455

			0.060

			2025

			3159

			4212

			5265

			0.071

			2187

			3159

			4212

			5265

			0.080

			2268

			3402

			4536

			5670

			0.090

			2430

			3564

			4698

			5832

			0.100

			2592

			3888

			5184

			6480

			0.120

			2888

			4256

			5624

			6992

			0.140

			3116

			4636

			6156

			7676

			0.160

			3420

			5092

			6764

			8436

			0.180

			3724

			5548

			7372

			9196

			0.200

			3952

			5852

			7752

			9652

			0.250

			4712

			6992

			9272

			11552

			0.300

			5244

			7600

			9956

			12312

			0.400

			5460

			7630

			9800

			11970

Fiw 3 0.18mm Super Enamelled Copper Wire Winding 0

Fiw 3 0.18mm Super Enamelled Copper Wire Winding 1

Fiw 3 0.18mm Super Enamelled Copper Wire Winding 2

Fiw 3 0.18mm Super Enamelled Copper Wire Winding 3

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.18mm

Minimum Order Quantity:	20 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Fiw 3 0.18mm Super Enamelled Copper Wire Winding

0.18mm super enamelled copper wire

fiw super enamelled copper wire

fiw 3 enameled copper winding wire

enameled round copper wire,

copper magnet wire,

awg magnet wiresquare copper wire

0.13mm FIW

38AWG 0.1mm High Voltage Enameled Copper Wire FIW4 Wire

0.1mm FIW Wire

Fiw4 0.335mm Self Bonding Enamelled Copper Wire Class 180 High Voltage

Type 6 Fiw Wire 0.711mm Fully Insulated Transformer Winding

FIW6 Enamelled Wire 0.1mm -0.8mm Zero Defect For Transformer Winding

FIW6 Enameled Copper Wire 0.5mm 0.711mm Fully Insulated

22 Swg Fiw Wire Enameled Copper Fully Insulated

Name	FIW 3 copper wire 0.18mm Enameled copper winding wire
Key word	FIW wire
Insulationh	Enamel
Thermal rating	180
Diameter of the enameled copper wire	0.18mm
Type	FIW 3 copper wire 0.18mm Enameled copper winding wire

Nom.Diameter(mm)	Min. Breakdown voltage (V)
Nom.Diameter(mm)	Grade ofFIW3	Grade ofFIW4	Grade of FIW5	Grade ofFIW6
0.040	1458	2349	3159	3969
0.050	1782	2673	3564	4455
0.060	2025	3159	4212	5265
0.071	2187	3159	4212	5265
0.080	2268	3402	4536	5670
0.090	2430	3564	4698	5832
0.100	2592	3888	5184	6480
0.120	2888	4256	5624	6992
0.140	3116	4636	6156	7676
0.160	3420	5092	6764	8436
0.180	3724	5548	7372	9196
0.200	3952	5852	7752	9652
0.250	4712	6992	9272	11552
0.300	5244	7600	9956	12312
0.400	5460	7630	9800	11970
