Name: High Voltage 0.15mm Fiw Wire Enamel Coated Copper Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.15mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	High Voltage 0.15mm FIW Wire Enamel Coated Copper Wire	Thermal Rating:	180
Insulation Material:	Amide Imide	Diameter:	0.15mm
Conductor Material:	Copper	Key Word:	High Voltage 0.15mm FIW Wire Enamel Coated Copper Wire
Highlight:	high voltage fiw wire , 0.15mm fiw wire , fiw enamel coated copper wire

Product Description

High Voltage 0.15mm FIW Wire Enamel Coated Copper Wire

IMPROVED PRODUCTIVITY

Simple production processes: No barrier tape and interleaved insulation tape are required
Solderability: Soldering can be conducted without removal of insulation layer

			Name
			High Voltage 0.15mm FIW Wire Enamel Coated Copper Wire

			Key word
			FIW wire

			Insulationh
			Enamel

			Thermal rating
			180

			Diameter of the enameled copper wire
			0.15mm

			Type
			High Voltage 0.15mm FIW Wire Enamel Coated Copper Wire


			Nom.Diameter(mm)

			Min. Breakdown voltage (V)

			Grade ofFIW3

			Grade ofFIW4

			Grade of FIW5

			Grade ofFIW6

			0.040

			1458

			2349

			3159

			3969

			0.050

			1782

			2673

			3564

			4455

			0.060

			2025

			3159

			4212

			5265

			0.071

			2187

			3159

			4212

			5265

			0.080

			2268

			3402

			4536

			5670

			0.090

			2430

			3564

			4698

			5832

			0.100

			2592

			3888

			5184

			6480

			0.120

			2888

			4256

			5624

			6992

			0.140

			3116

			4636

			6156

			7676

			0.160

			3420

			5092

			6764

			8436

			0.180

			3724

			5548

			7372

			9196

			0.200

			3952

			5852

			7752

			9652

			0.250

			4712

			6992

			9272

			11552

			0.300

			5244

			7600

			9956

			12312

			0.400

			5460

			7630

			9800

			11970

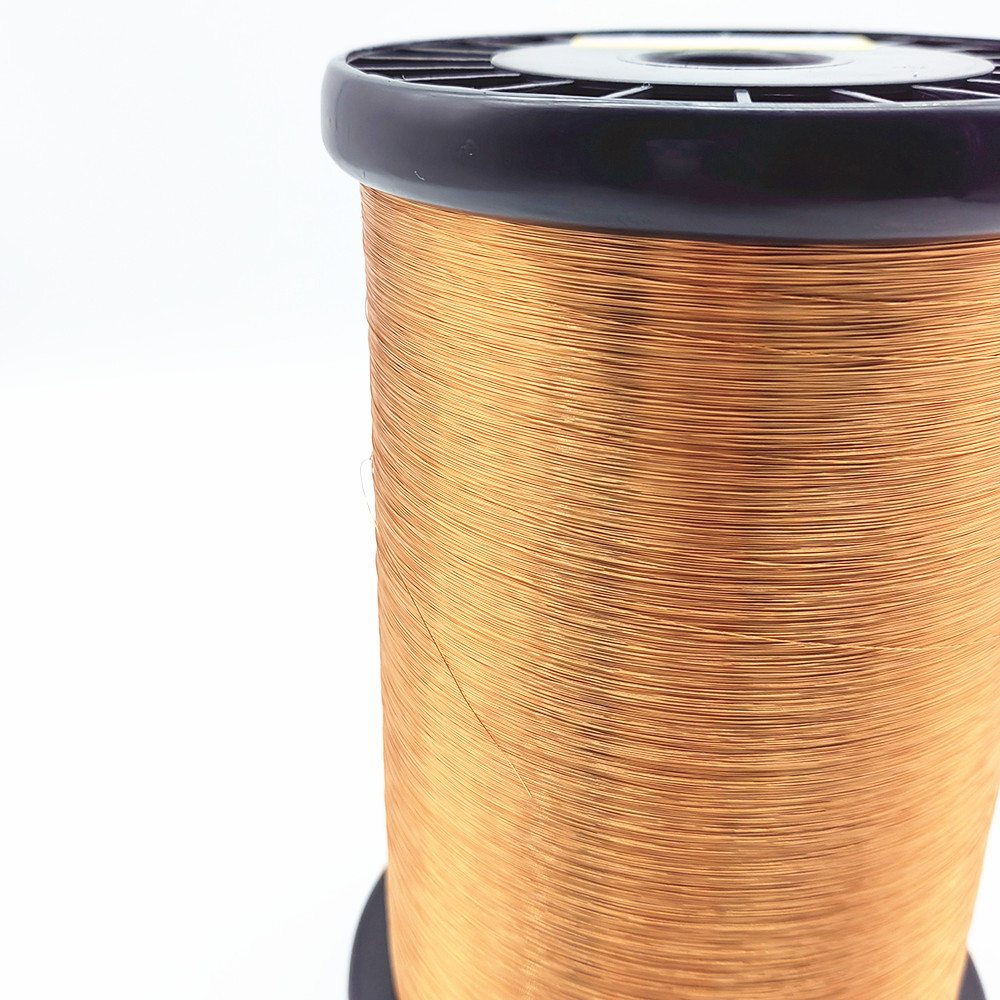

High Voltage 0.15mm Fiw Wire Enamel Coated Copper Wire 0

High Voltage 0.15mm Fiw Wire Enamel Coated Copper Wire 1

High Voltage 0.15mm Fiw Wire Enamel Coated Copper Wire 2

High Voltage 0.15mm Fiw Wire Enamel Coated Copper Wire 3

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.15mm

Minimum Order Quantity:	20 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

High Voltage 0.15mm Fiw Wire Enamel Coated Copper Wire

high voltage fiw wire

0.15mm fiw wire

fiw enamel coated copper wire

IMPROVED PRODUCTIVITY

enameled round copper wire,

copper magnet wire,

awg magnet wiresquare copper wire

0.13mm FIW

38AWG 0.1mm High Voltage Enameled Copper Wire FIW4 Wire

0.1mm FIW Wire

Fiw4 0.335mm Self Bonding Enamelled Copper Wire Class 180 High Voltage

Type 6 Fiw Wire 0.711mm Fully Insulated Transformer Winding

FIW6 Enamelled Wire 0.1mm -0.8mm Zero Defect For Transformer Winding

FIW6 Enameled Copper Wire 0.5mm 0.711mm Fully Insulated

22 Swg Fiw Wire Enameled Copper Fully Insulated

Name	High Voltage 0.15mm FIW Wire Enamel Coated Copper Wire
Key word	FIW wire
Insulationh	Enamel
Thermal rating	180
Diameter of the enameled copper wire	0.15mm
Type	High Voltage 0.15mm FIW Wire Enamel Coated Copper Wire

Nom.Diameter(mm)	Min. Breakdown voltage (V)
Nom.Diameter(mm)	Grade ofFIW3	Grade ofFIW4	Grade of FIW5	Grade ofFIW6
0.040	1458	2349	3159	3969
0.050	1782	2673	3564	4455
0.060	2025	3159	4212	5265
0.071	2187	3159	4212	5265
0.080	2268	3402	4536	5670
0.090	2430	3564	4698	5832
0.100	2592	3888	5184	6480
0.120	2888	4256	5624	6992
0.140	3116	4636	6156	7676
0.160	3420	5092	6764	8436
0.180	3724	5548	7372	9196
0.200	3952	5852	7752	9652
0.250	4712	6992	9272	11552
0.300	5244	7600	9956	12312
0.400	5460	7630	9800	11970
