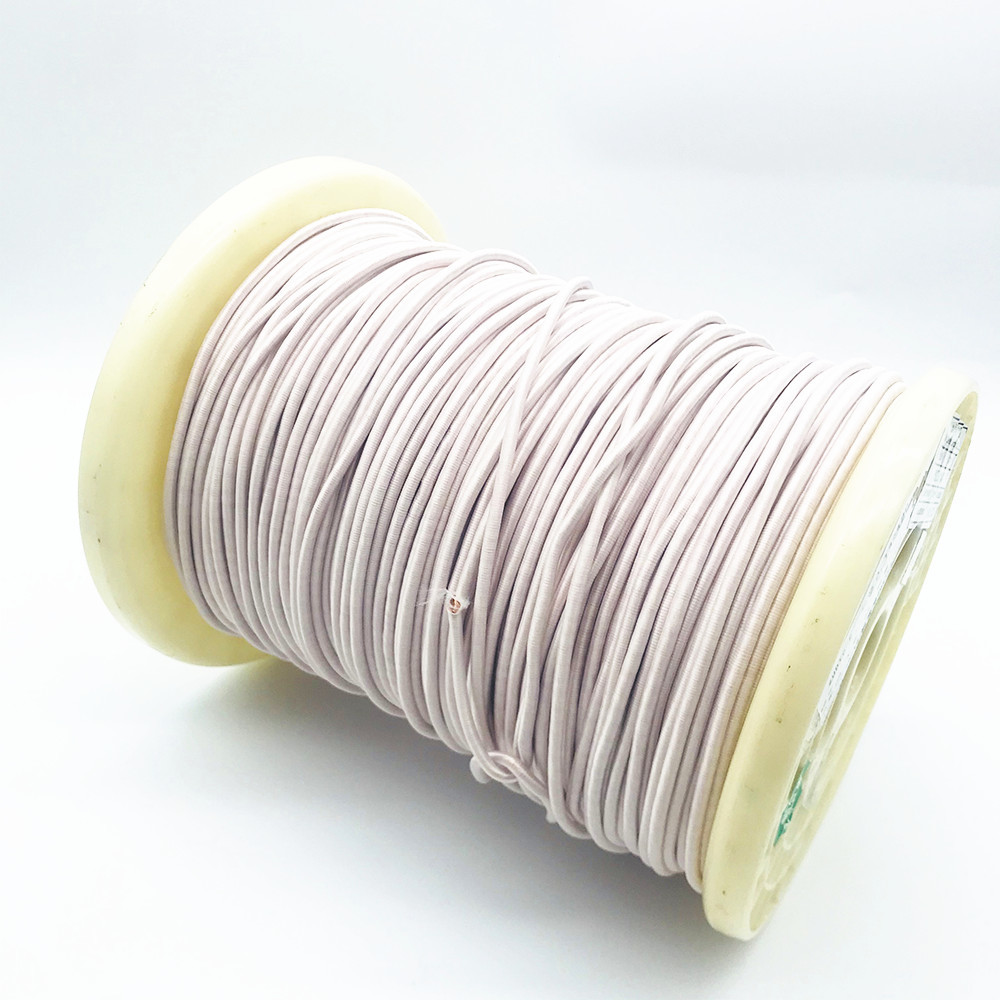

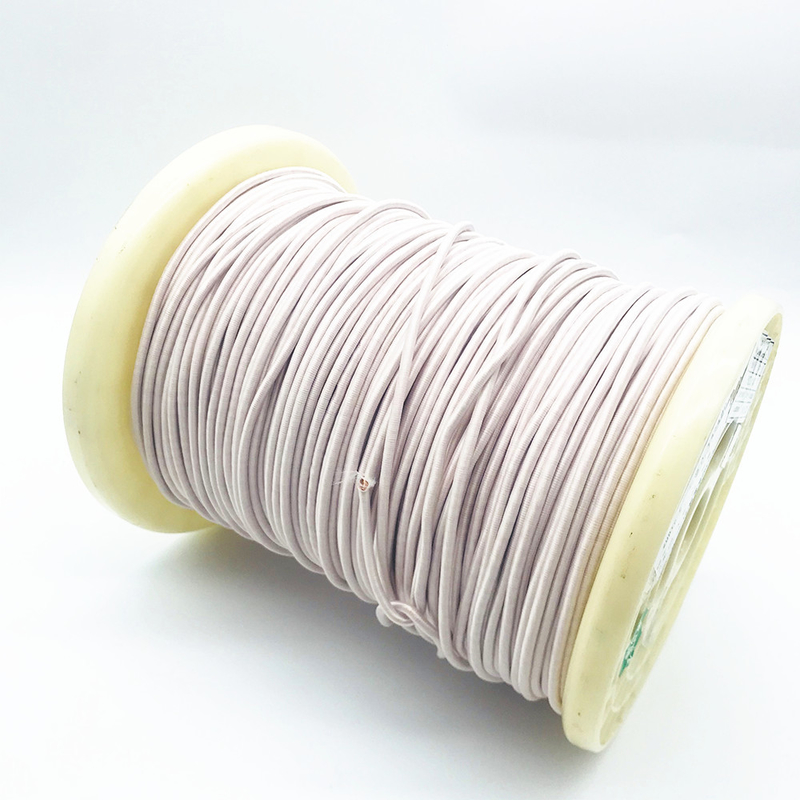

155 Degree Ustc Litz Wire 0.04mm * 260 Strands Enameled Silk Covered

Basic Information

Get Best Price Contact Now

Detail Information

Name:	USTC 155 Degree 0.04mm * 260 Strands Enameled Silk Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.04mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	USTC 155 Degree 0.04mm * 260 Strands Enameled Silk Covered Litz Wire
No. Of Strands:	260
Highlight:	155 degree ustc litz wire , 0.04mm ustc litz wire , ustc high frequency litz wire

Product Description

USTC 155 degree 0.04mm * 260 Strands enameled silk covered litz wire

The features of silk covered litz wire

- Good high frequency performance.

- Good resistance to high temerature and high peessure.

- The silk covered litz wire is suitable for use in sealed evironment.

Name	USTC 155 degree 0.04mm * 260 Strands enameled silk covered litz wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.04mm
Number of strands	260
Type	USTC 155 degree 0.04mm * 260 Strands enameled silk covered litz wire

Description Conductor diameter*Strand number		2USTC-F 0.04*260
Single wire	Conductor diameter(mm)	0.040
	Conductor diameter tolerance (mm)	±0.002
	Minimal insulation thickness(mm)	0.002
	Maximal overall diameter (mm)	0.056
Strand Composition	Thermal Class(℃)	155
	Strand number	52*5
	Pitch(mm)	27±3
	Stranding direction	S
Insulation layer	material category	Nylon
	UL	/
	Material specs(mm*mm or Denier)	300
	Times of Wrapping	1
	Overlap(%) or thickness(mm),mini	0.02
	Wrapping direction	S
Characteristics	Max O. D(mm)	1.05
	Max pin holes fault/6m	/
	Max resistance (Ω/Km at20℃)	60.27
	Mini breakdown voltage (V )	500
Package	spool	PT-10
	Length per kg(M/kg)	329

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
