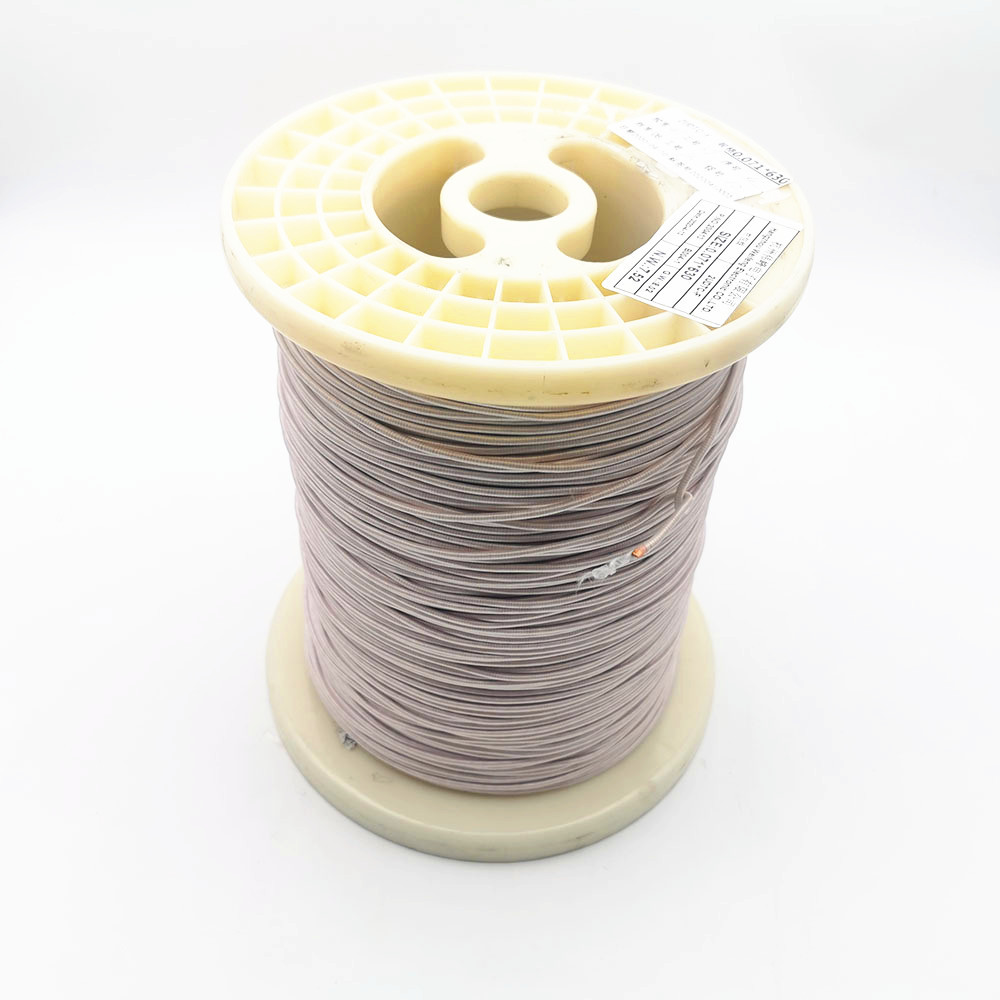

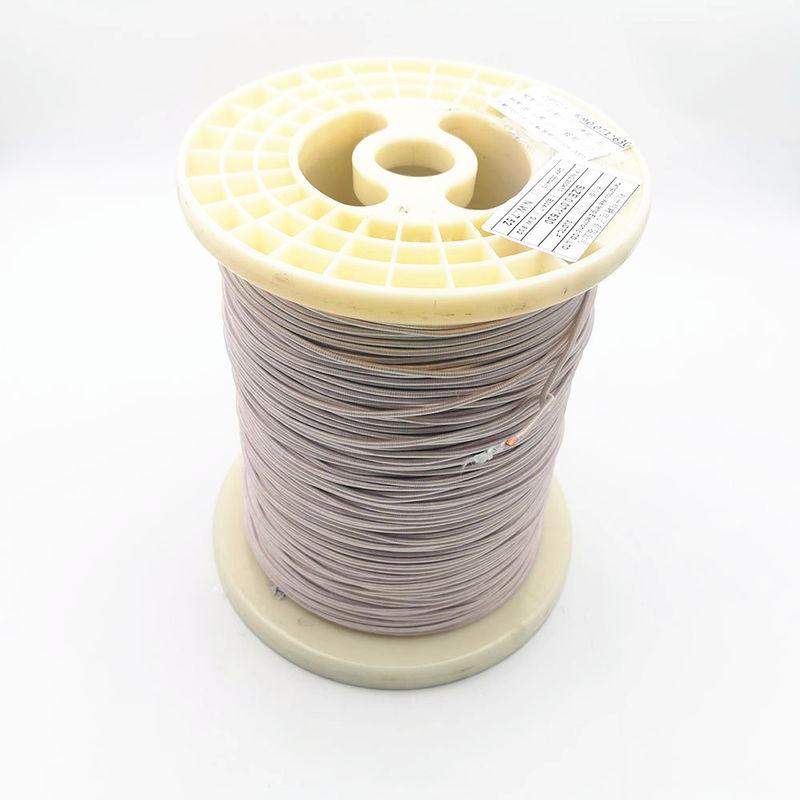

40 Awg Class 180 Ustc Wire High Frequency Stranded Copper Litz

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	40 AWG Class 180 High Frequency Stranded Copper Wire USTC Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	40 AWG Class 180 High Frequency Stranded Copper Wire USTC Litz Wire
No. Of Strands:	560
Highlight:	40 awg ustc wire , class 180 ustc wire , high frequency litz wire ustc

Product Description

40 AWG Class 180 High frequency stranded copper wire USTC litz wire

The silk-covered wire increases insulation strength, reduces surface temperature. Silk-covered litz wire has the same characteristics as enameled stranded wire. Silk covered litz wire is mostly used in antenna inductors, high-power lighting systems, video equipment, ultrasonic equipment, high-frequency inductors and transformers.

Test report: 0.08mm x 560 strands, thermal grade 180
Item	Standard	Test result
Single wire diameter mm	0.087-0.103	0.090	0.093
Max. overall diameter(mm)	3.35	2.55	2.70
Max.O.D. mm	0.08±0.003	0.078	0.080
Max. Resistance Ω/m at20℃	0.006741	0.00618	0.00622
Mini breakdown voltage	1100	2700	3200

Name	40 AWG Class 180 High frequency stranded copper wire USTC litz wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.05mm
Number of strands	130
Type	40 AWG Class 180 High frequency stranded copper wire USTC litz wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

40 Awg Class 180 Ustc Wire High Frequency Stranded Copper Litz 0

40 Awg Class 180 Ustc Wire High Frequency Stranded Copper Litz 1

40 Awg Class 180 Ustc Wire High Frequency Stranded Copper Litz 2

40 Awg Class 180 Ustc Wire High Frequency Stranded Copper Litz 3
