Polyurethane 2uew Flat Copper Wire High Temerature

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 4.0mm * 0.65mm
Minimum Order Quantity: 10 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Polyurethane 2UEW High Temerature Flat Wire Rectangular Enameled Copper Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 4.0mm
Thickness: 0.65mm Conductor Material: Copper
Key Word: Polyurethane 2UEW High Temerature Flat Wire Rectangular Enameled Copper Wire
High Light:

polyurethane flat copper wire

,

2uew flat copper wire

,

high temerature rectangular enamelled copper wire


Product Description

Polyurethane 2UEW High Temerature Flat Wire Rectangular Enameled Copper Wire

Insulation: AIW/EIW/UEW

Thermal Class: 155-220℃

Color: Red/blue/green Conductor

Material: Flat Copper Width Range: 0.155-7.5mm

Features and benefits of rectangular enameled copper wire

1. High conductivity

2. Shock resistance

3. Excellent durability

4. Superior strength

5. Rust resistant 6.
Low maintenance

7. Affordability

Characteristics
Standard
Test Result
Appearance
Smooth Equality
Smooth Equality
Conductor Diameter
Width
4.00±0.060
0.398
Thickness
0.65±0.009
0.650
Thickness of Insulation
Width
0.020
0.043
Thickness
0.030
0.044
Overall Diameter
Width
4.100
4.025
Thickness
0.700
0.694
Pinhole
Max ≤3hole/m
0
Elongation
Min ≥30 %
42
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
Max 7.07
6.93
Breakdown Voltage
Min. 0.70kv
2.00
Heat shock
No Crack
No Crack
Conclusion

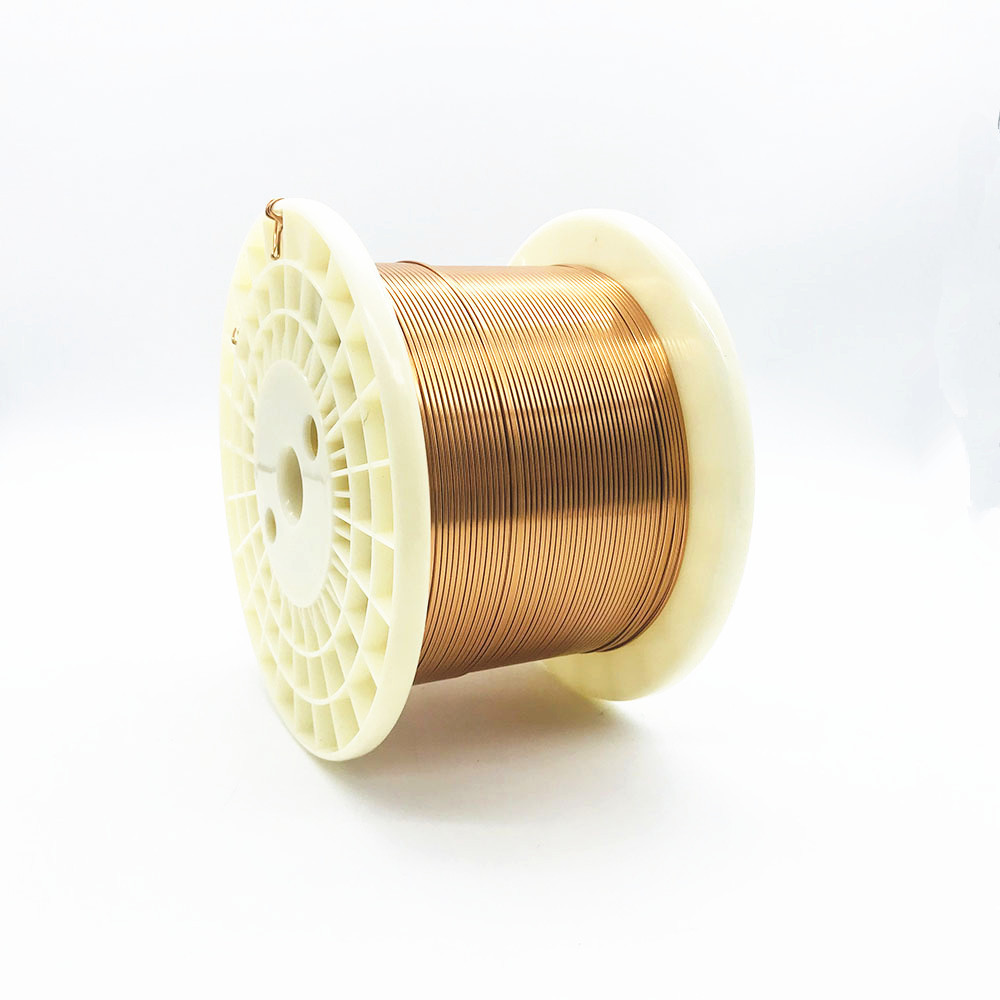

Polyurethane 2uew Flat Copper Wire High Temerature 0

Polyurethane 2uew Flat Copper Wire High Temerature 1

Polyurethane 2uew Flat Copper Wire High Temerature 2

Polyurethane 2uew Flat Copper Wire High Temerature 3
