Various Sizes Rectangular Enameled Copper Wire Class 220 0.4mm*4.0mm

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.3mm* 0.18
Minimum Order Quantity: 10 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Amide-imide Class 220 Super Thin Self Adhesive Flat Enameled Copper Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 0.4mm
Thickness: 0.4mm Conductor Material: Copper
Key Word: Various Sizes Class 220 0.4mm*4.0mm Rectangular Enameled Flat Rectangular Copper Wire
High Light:

class 220 rectangular enameled copper wire

,

insulated rectangular enameled copper wire

,

class 220 rectangular copper wire


Product Description

Various Sizes Class 220 0.4mm*4.0mm Rectangular Enameled Flat Rectangular Copper Wire



In comparison with round wires, rectangular wires have the advantage of allowing more compact windings, thereby delivering both space and weight savings. The electrical efficiency is also better, which saves energy.

Especially when the wires are meant to be insulated with enamel, the precision of width and thickness as well as the geometry of the corner radius is of great importance for the defect-free use in electrical coil



Product
Class
Solderable
Self bonding
Product Range
Width(mm)
Thickness(mm)
Width-Thickness Ratio
AIWJ
220℃
x
x
0.155--7.5
0.02-1.8
1.25
EI/AIWJ
220℃
x
x
0.155--7.5
0.02-1.8
1.25
EI/AIWJ
200℃
x
x
0.155--7.5
0.02-1.8
1.25
UEWJ
180℃
0
x
0.155--7.5
0.02-1.8
1.25
EIWJ
180℃
x
x
0.155--7.5
0.02-1.8
1.25
SEIWJ
180℃
0
x
0.155--7.5
0.02-1.8
1.25
UEWJ
155℃
0
x
0.155--7.5
0.02-1.8
1.25
UEWJ
130℃
0
x
0.155--7.5
0.02-1.8
1.25
EI/SBWJ
180℃
x
0
0.155--7.5
0.02-1.8
1.25
SEI/SBWJ
180℃
0
0
0.155--7.5
0.02-1.8
1.25
EI/AI/SBWJ
220℃
x
0
0.155--7.5
0.02-1.8
1.25
AI/SBWJ
220℃
x
0
0.155--7.5
0.02-1.8
1.25
UE/SBWJ
180℃
0
0
0.155--7.5
0.02-1.8
1.25
UE/SBWJ
155℃
0
0
0.155--7.5
0.02-1.8
1.25
UE/SBWJ
130℃
0
0
0.155--7.5
0.02-1.8
1.25

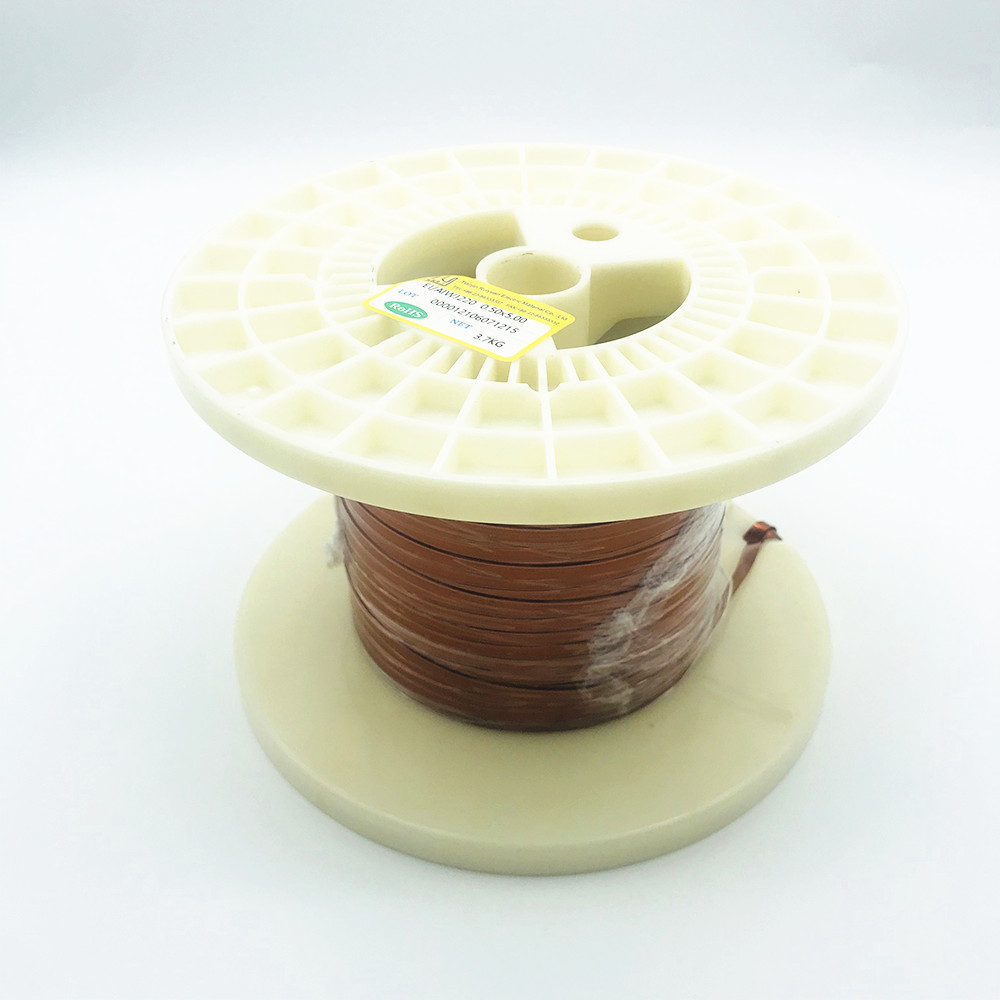

Various Sizes Rectangular Enameled Copper Wire Class 220 0.4mm*4.0mm 0

Various Sizes Rectangular Enameled Copper Wire Class 220 0.4mm*4.0mm 1

Various Sizes Rectangular Enameled Copper Wire Class 220 0.4mm*4.0mm 2

Various Sizes Rectangular Enameled Copper Wire Class 220 0.4mm*4.0mm 3

0
