| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.3mm* 0.18 |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW 220 0.7mm Alcohol SV Self Bonding Flat Enameled Copper Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.7mm |
| Thickness: | 0.21mm | Conductor Material: | Copper |
| Key Word: | AIW 220 0.7mm Alcohol SV Self Bonding Flat Enameled Copper Wire | ||
| High Light: | aiw 220 flat enameled copper wire,0.7mm flat enameled copper wire,self bonding flat copper magnet wire |
||

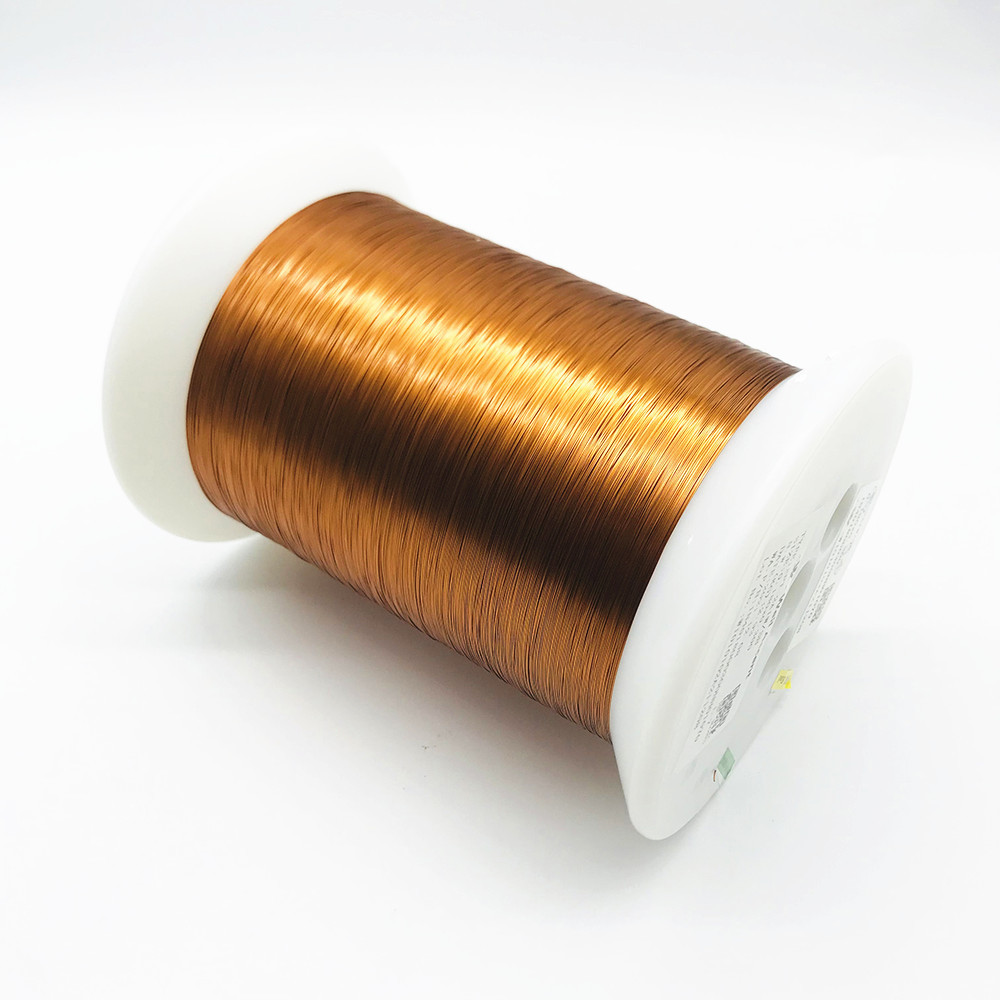

AIW 220 0.7mm Alcohol SV Self Bonding Flat Enameled Copper Wire
We offer high quality rectangular enameled copper wire, made of oxygen free copper, the thickness of the flat enameled copper wire range from 0.04mm-1.8mm. width from 0.115mm-7.5mm, class 180 and class 220 with or without self bonding layer are available.
|
Model: SFT-HB/AIWJ 220 0.7*0.21mm |
|||
|
Characteristics |
Standard
|
Test Result |
|
|
Appearance |
Smooth Equality
|
Smooth Equality |
|
|
Conductor Diameter(mm)
|
Width |
0.70±0.060 |
0.712 |
|
Thickness |
0.21±0.009 |
0.205 |
|
|
Min.thickness of insulation(mm)
|
Width |
0.014-0.021 |
0.020 |
|
Thickness |
0.014-0.021 |
0.019 |
|
|
Min. Thickness of bonding layer
|
Width |
0.004-0.008 |
0.008 |
|
Thickness |
0.004-0.008 |
0.008 |
|
|
Overall Diameter(mm)
|
Width |
0.770 |
0.768 |
|
Thickness |
0.265 |
0.145 |
|
|
Pinhole |
Max. 3hole/m
|
0 |
|
|
Flexibility and Adherence |
No crack
|
No crack |
|
|
Conductor Resistance (Ω/km at 20℃) |
Max 0.122
|
0.133 |
|
|
Breakdown Voltage |
Min 0.30kv
|
2.10kv |
|
|
Heat shock |
No Crack
|
No Crack |
|
|
Conclution |
Pass |
||
