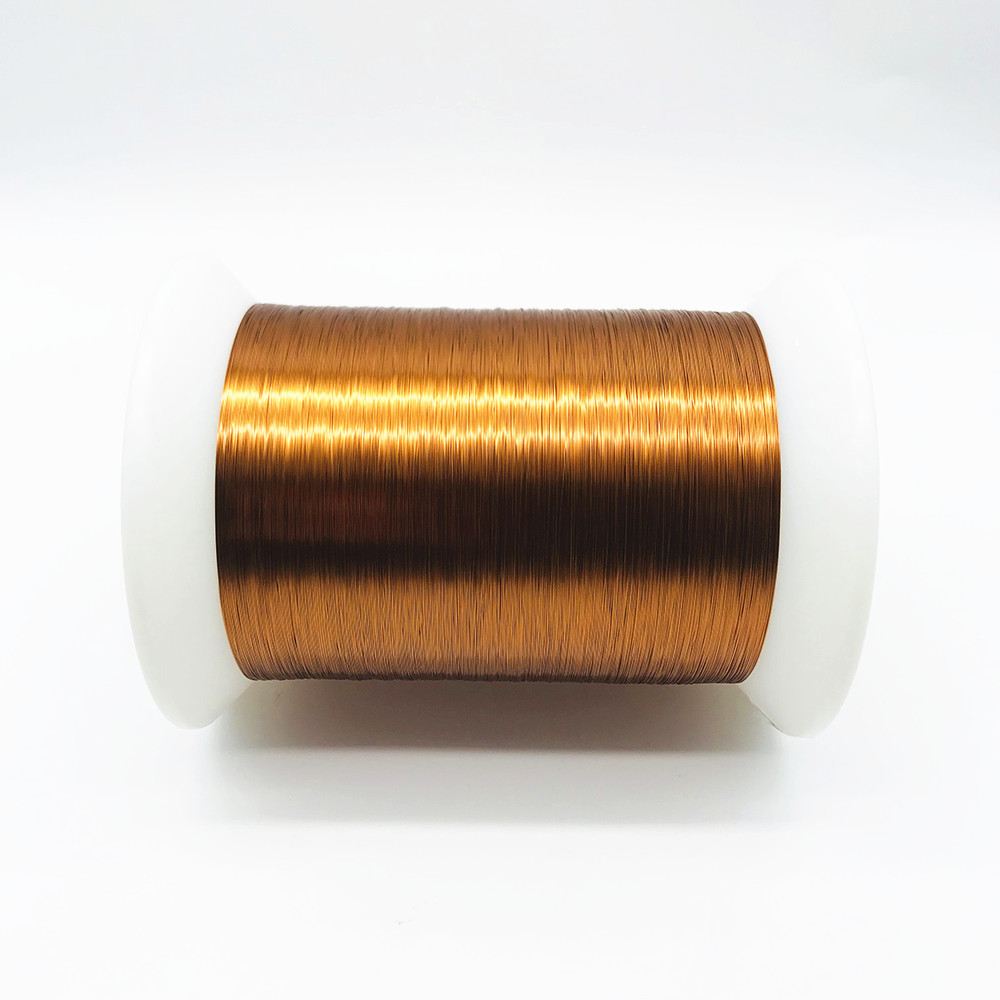

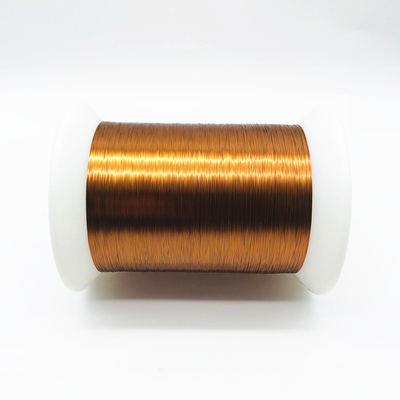

1.8mm High Temperature Flat Copper Magnet Wire Enameled

1.8mm High Temperature Flat Copper Magnet Wire Enameled
1.8mm High Temperature Flat Copper Magnet Wire Enameled
1.8mm High Temperature Flat Copper Magnet Wire Enameled
Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.3mm* 0.18
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Get Best Price Contact Now
Detail Information
Product Name: 1.8mm High Temperature Enameled Flat Copper Magnet Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 0.3mm
Thickness: 0.18mm Conductor Material: Copper
Key Word: 1.8mm High Temperature Enameled Flat Copper Magnet Wire Rectangular Shape
Highlight:

1.8mm flat copper magnet wire

,

high temperature flat copper magnet wire

,

1.8mm flat enameled copper wire

Product Description

1.8mm High Temperature Enameled Flat Copper Magnet Wire Rectangular Shape



The rectangular enameled copper wire is made of oxygen free copper, suitable for oil-immersed transfomrers,dry-type transformer,high-termperature transformer,Generator,welding machine and kinds of motors .ect.



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.050

0.298

0.299
0.300
Thickness
     0.18
±0.050
 0.180 0.181
0.182
Thickness of self bonding layer
Min.
0.002
 0.003 0.003
0.003
Thickness of insulation Thickness 0.005-0.015 0.008 0.008 0.008
  Width 0.005-0.015 0.011 0.011 0.011
Overall Diameter
(Including bonding layer)
Thickness
Max.0.219
 0.201 0.202
0.203
Width
Max.0.364
 0.326 0.327
0.328
Pinhole
1hole/m
   0
0
Elongation
Min ≥15%
 30 30
30
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
423.82-321.01
 352.000 352.000
352.000
Breakdown Voltage
Min 0.50kv
 1.650 1.250
1.360
Heat shock
No Crack
No Crack


1.8mm High Temperature Flat Copper Magnet Wire Enameled 0

1.8mm High Temperature Flat Copper Magnet Wire Enameled 1

1.8mm High Temperature Flat Copper Magnet Wire Enameled 2

1.8mm High Temperature Flat Copper Magnet Wire Enameled 3

1.8mm High Temperature Flat Copper Magnet Wire Enameled 4
